This project guide details a comprehensive review and test of a 600W DC-DC boost converter module, commonly sold on online marketplaces. The review investigates the module's performance under various load conditions and analyzes its thermal behavior. Understanding the capabilities and limitations of such modules is crucial for various DIY electronics projects. This knowledge will help you select the right components and avoid potential damage to your equipment.

Practical Applications:

• Powering high-voltage devices from lower-voltage sources (e.g., powering a 48V device from a 24V battery).
• Creating adjustable power supplies for experimentation and prototyping.
• Developing portable high-voltage systems.
• Building custom power solutions for specific electronic projects.

Hardware/Components

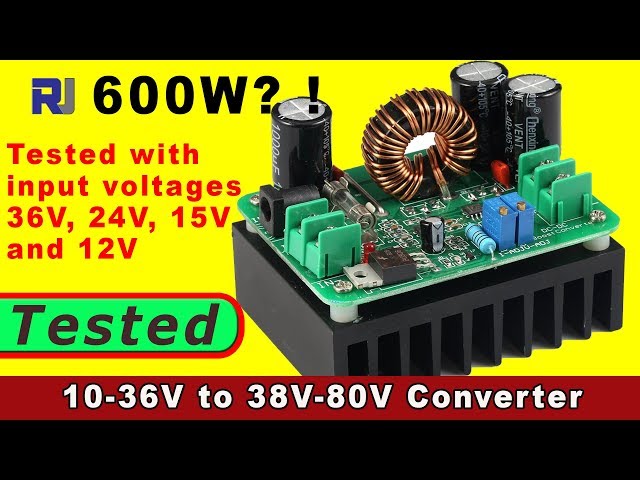

The boost converter module under review claims a 600W maximum power output with an input voltage range of 10-36V and an output voltage range up to 80V (in video at 00:12). The internal components include a MOSFET (072N10N, capable of 80A, 100V – in video at 02:16), a Schottky barrier rectifier (B2100G – in video at 02:41), input and output capacitors, and a current mode pulse width modulation (PWM) controller (UC3842 – in video at 04:24). A detailed internal analysis, including component identification and datasheets, is presented in the video (in video at 01:21 to 06:07).

Wiring Guide

The module features clearly labeled input (N+, N-) and output (+, -) terminals (in video at 03:05). The input also includes a small adapter connector, which is deemed unsuitable for higher current applications (in video at 03:07). A 15A fuse is incorporated into the input circuit (in video at 03:30). Connection to an electronic load for testing is shown in the video (in video at 08:59).

%%WIRING%%

Live Project/Demonstration

The video demonstrates extensive testing of the boost converter module, varying input and output voltages and currents to assess performance and efficiency. Tests were conducted using an electronic load (DL3031 – in video at 08:59) to precisely control the output current and measure the input current. Thermal imaging was used to identify hotspots and monitor temperature changes under different load conditions (in video at 14:27). The tests revealed significant limitations in the module's claimed 600W capacity. The module struggled to maintain stable output voltage and current at higher loads, and the PCB traces showed signs of overheating (in video at 18:21, 29:14). The maximum power output achieved was significantly lower than the advertised 600W. The reviewer also notes that the PCB's trace quality is poor and may easily burn if not reinforced (in video at 33:01).

Chapters

• [00:01] Introduction and Project Overview
• [01:21] Internal Component Analysis
• [02:56] Module Overview and Components
• [06:37] Boost Converter Basics
• [07:08] Partial Schematic Diagram
• [08:59] Test Setup and Initial Measurements
• [14:27] Thermal Imaging and Analysis
• [32:48] Conclusion and Recommendations
