We learn how to use this capacity tester and discharger module. Main Specs -Measurement accuracy: 1AH
Power supply: DC 5-12V / 18650 battery
Standby current: 5-7 mA
Discharge current: about 500 mA
Load: 10W 8 ohm
Discharge time for 3200 mAh battery: 6.4 hours

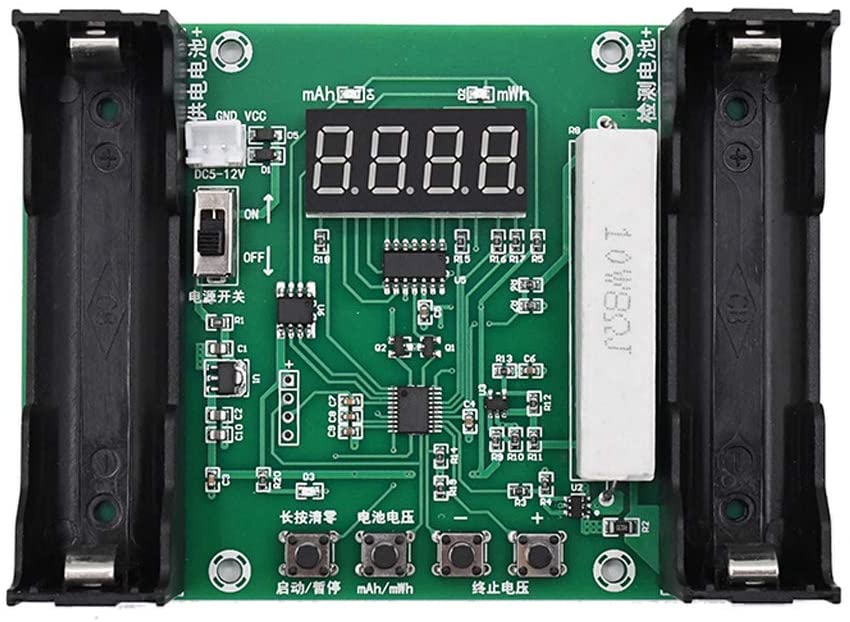

XH-M240 Lithium Capacity Tester/Discharger: Main
Click on image to enlarge

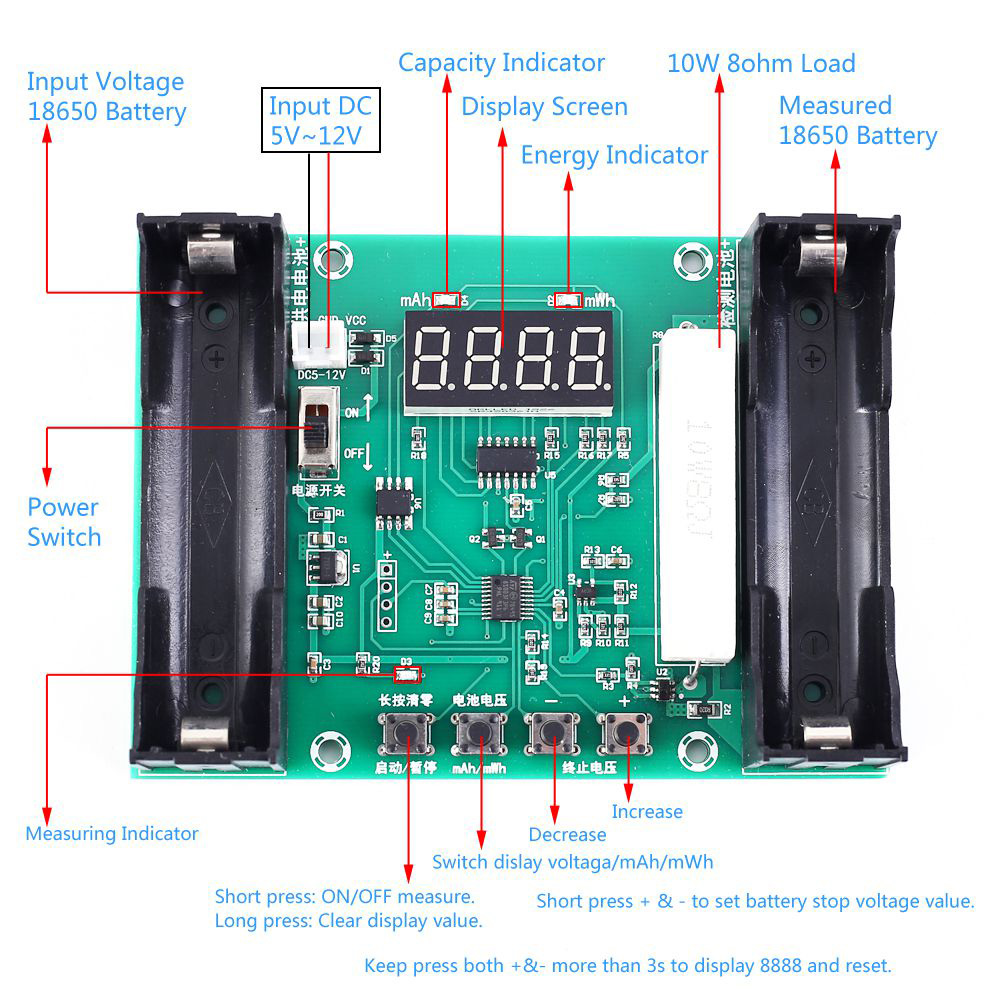

XH-M240 Lithium Capacity Tester/Discharger: Functions
Click on image to enlarge

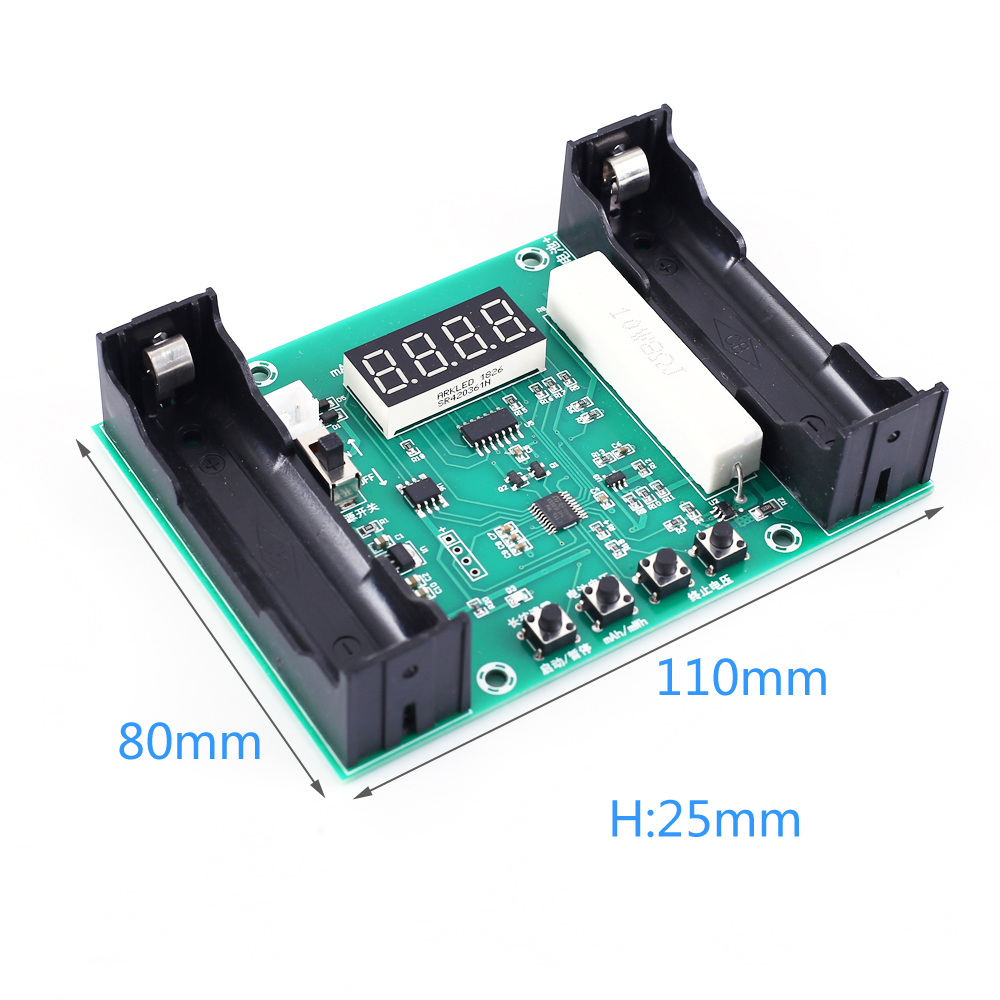

XH-M240 Lithium Capacity Tester/Discharger: Dimensions
Click on image to enlarge

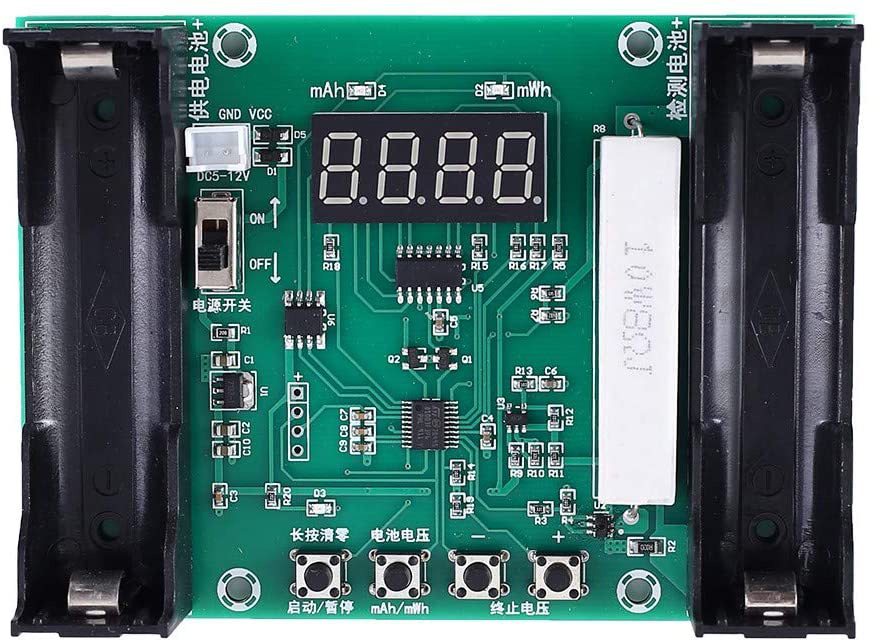

XH-M240 Lithium Capacity Tester/Discharger: Close-up view
Click on image to enlarge
