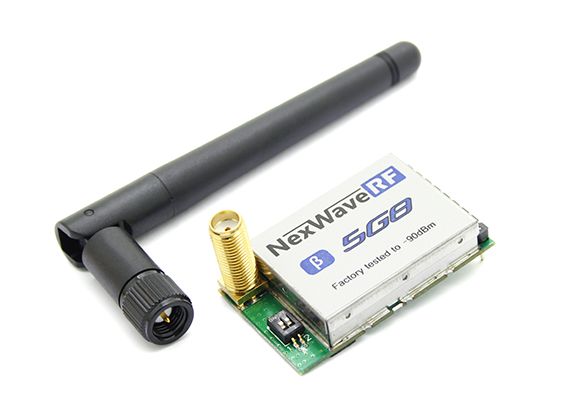

This is a 5.8 GHz video receiver module that is primarily designed to work with FatShark Dominator goggles, but it works quite happily in conjunction with other 5.8 GHz transmitters as long as they use the "BETA" frequencies, which will match the NexwaveRF receiver module.

These receivers are also compatible with Boscam and Skyzone that use the "BETA" frequencies, and they will work with the standard FatShark and ImmersionRC transmitters; however, due to their modulation differences, they might not perform as well as the standard "ALPHA" module option.

Specs:
Voltage Input: 3~5V
Channels: 24
Sensitivity: -90dBm
Modulation: BETA NexwaveRF
Antenna: RP-SMA
Dimensions: 43 x25 x 9mm (exc antenna)
Weight: 20g (with antenna)

Frequencies:
Dip switch (0-1): 5865/5845/5825/5805/5785/5765/5545/5725
Dip switch (1-0): 5733/5752/5771/5790/5809/5828/5847/5866
Dip switch (1-1): 5705/5685/5665/5645/5885/5905/5925/5945
