Review of ZK-PP2K 8A PWM 3.3V to 30V Motor Driver | Robojax

Review of ZK-PP2K 8A PWM 3.3V to 30V Motor Driver | Robojax

The module is fully explained, components viewed and explained. PWM and Pulse mode explained and then Demonstrated in PWM mode, Pulse mode and full load tested. Thermal image shown the honest spot.

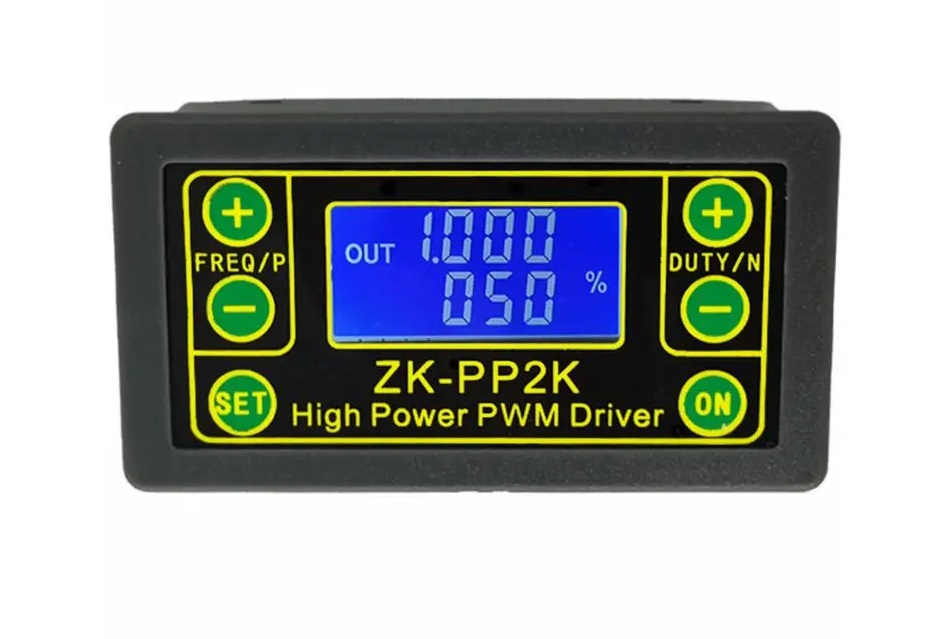

Specifications:

-Model: ZK-PP2K
-Operating voltage:DC 3.3V-30V
-Frequency range:1Hz~150KHz
-Frequency accuracy:2%
-Duty cycle range:0.00%-100%
-Output Current:8A(Max)
-Number of pulses:1~9999 or Infinite
-Delay time:0.000s~9999s/> -Pulse width:0.000s~9999s -Time accuracy:1ms
-Output amplitude:Same to input voltage
-Operating Temperature:-20°~85°
-Operating Humidity:0%~95%RH
-Size:79*43*26mm

Chapters of this video

AliExpress.com Product - Signal Generator 8A Driver Module for Motor/Lamp 1Hz-150KHz Dual Mode LCD PWM Pulse Frequency Duty Cycle Adjustable Module

Where to buy this ZK-PP2K Motor driver?

Browser Screenshot Gallery

Click on the images below:

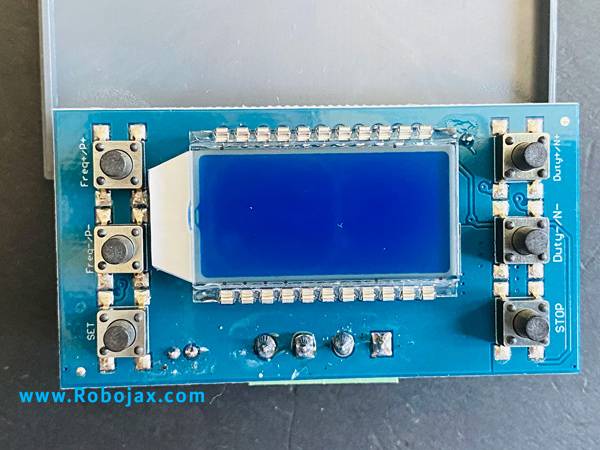

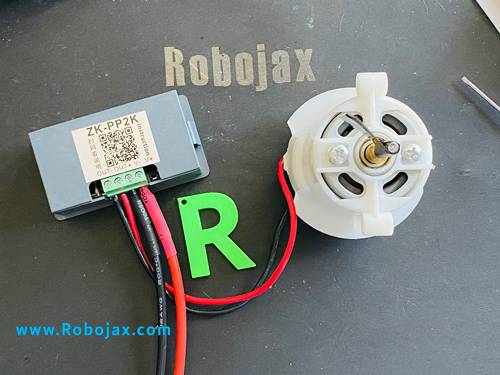

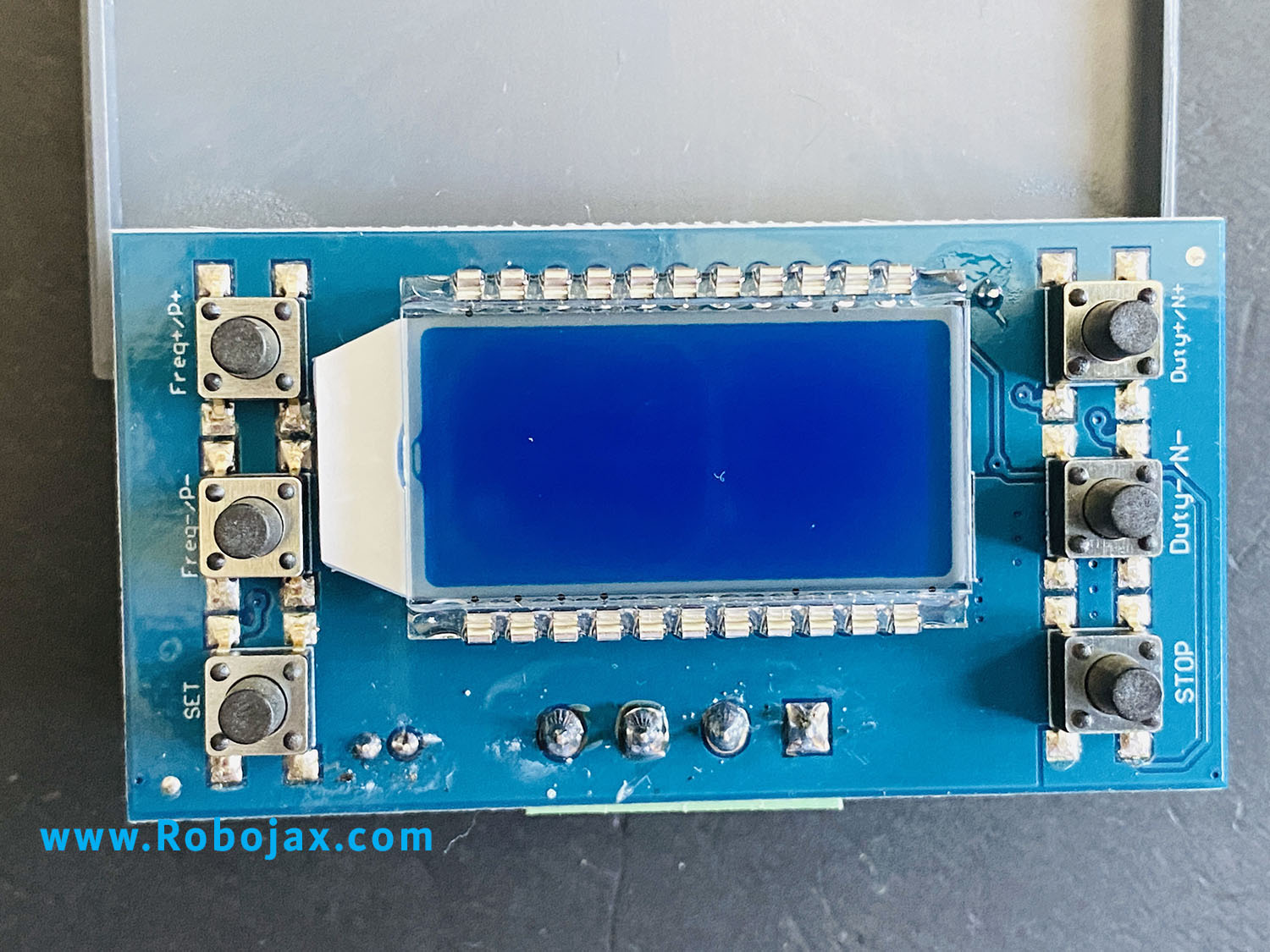

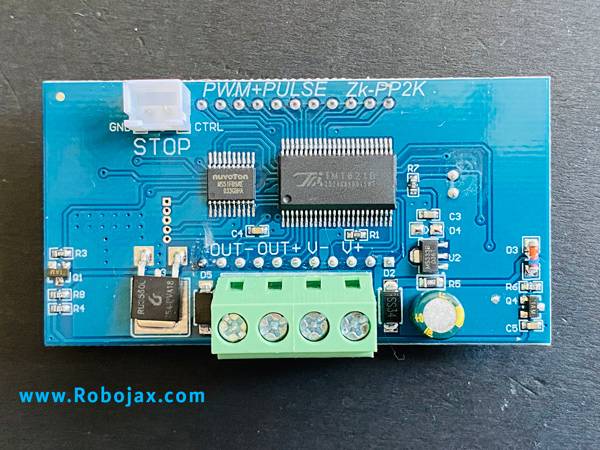

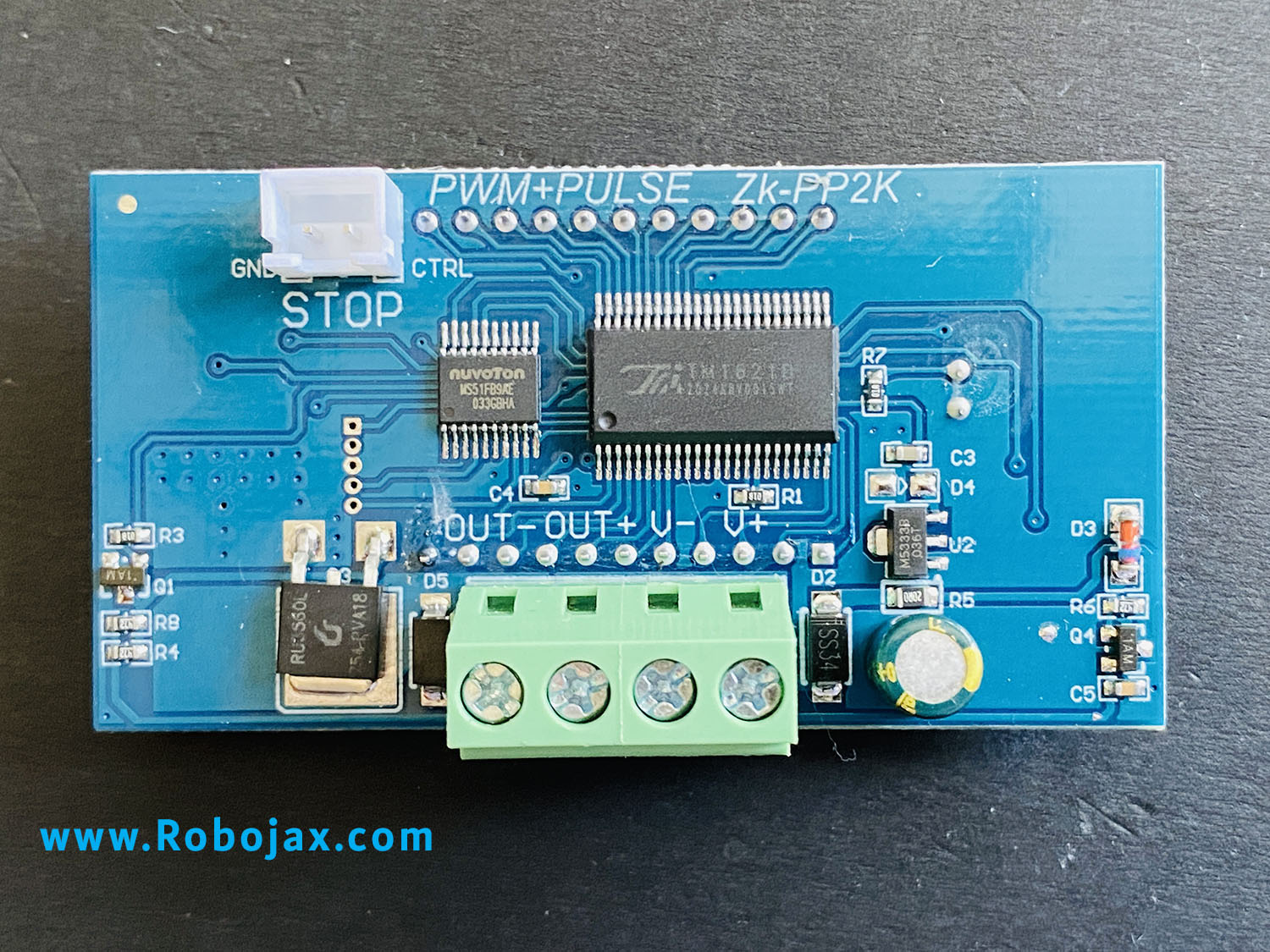

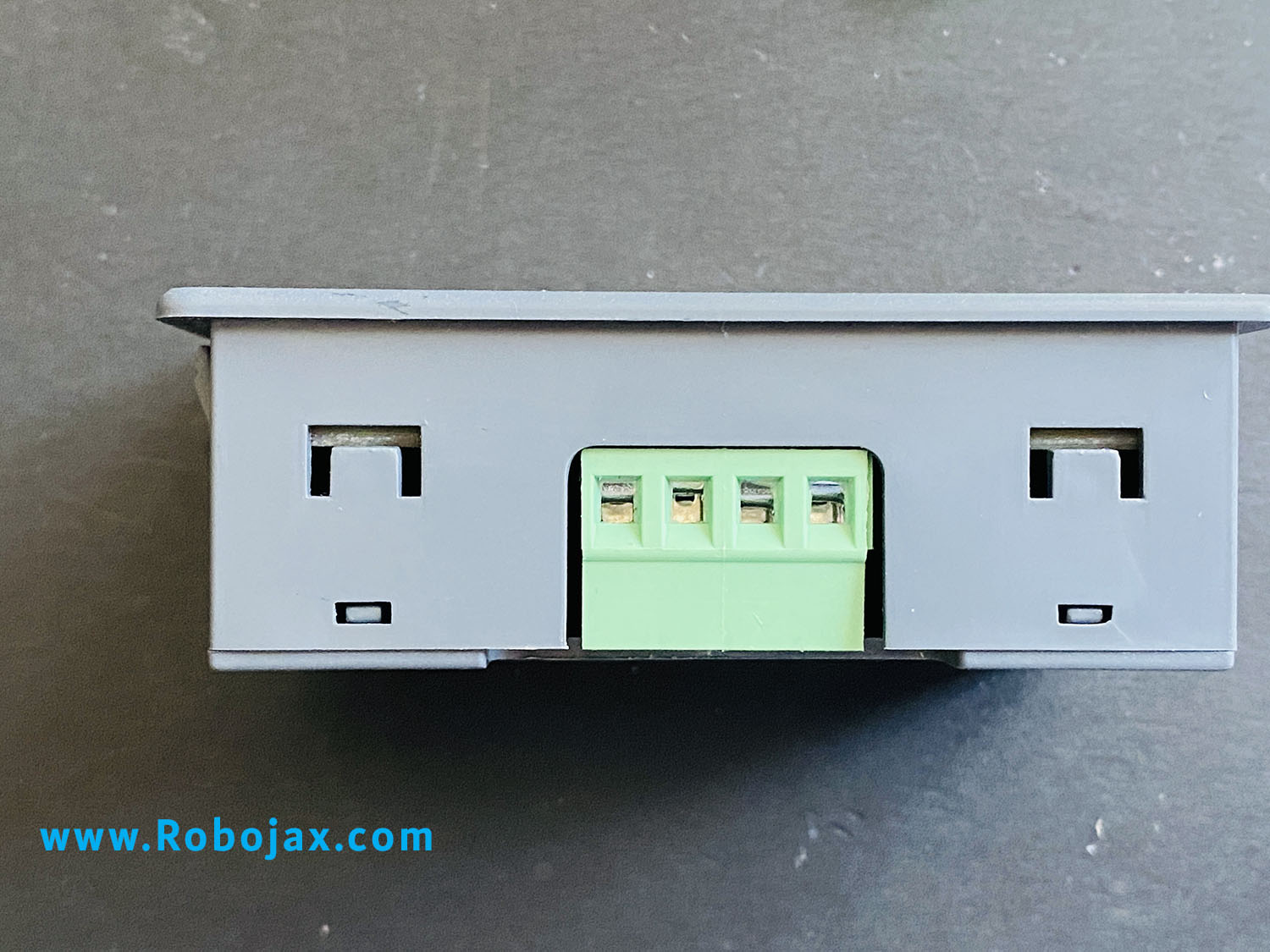

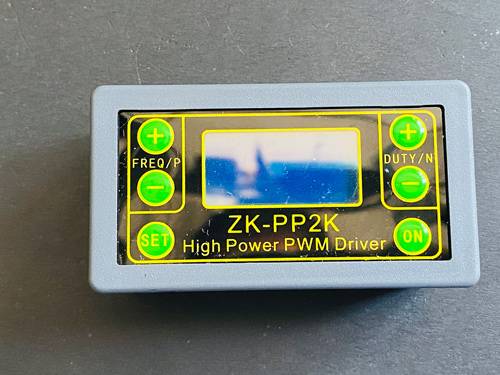

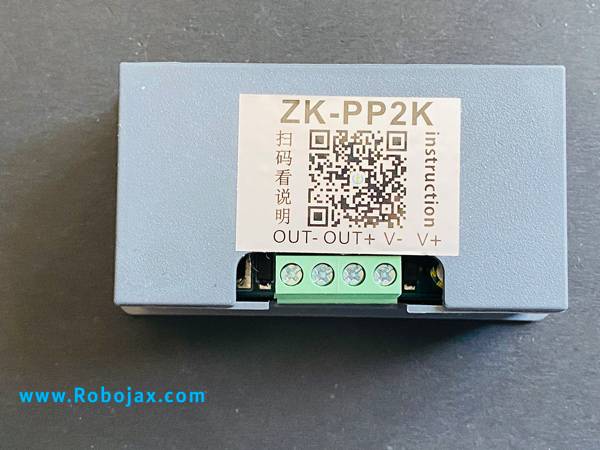

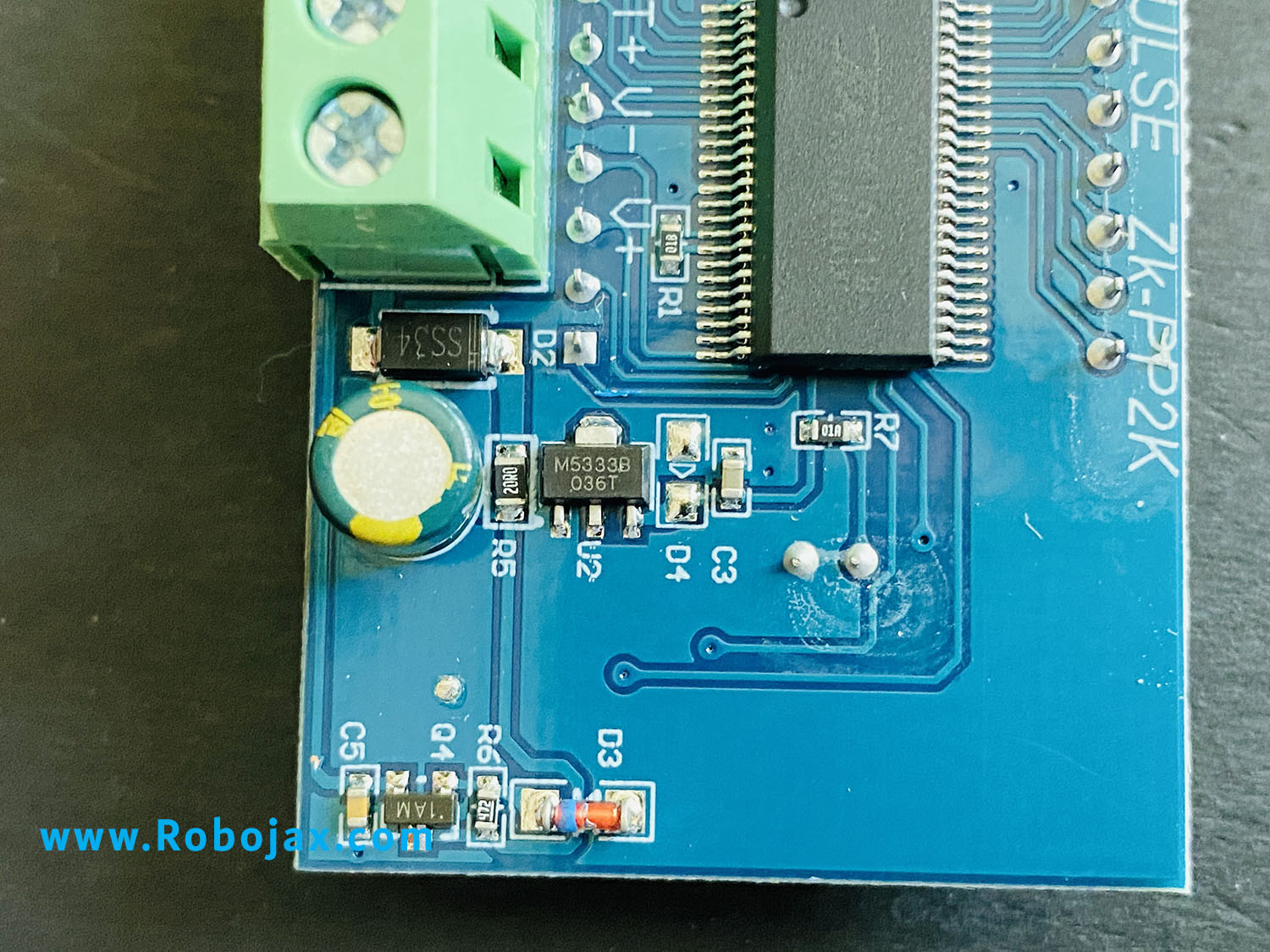

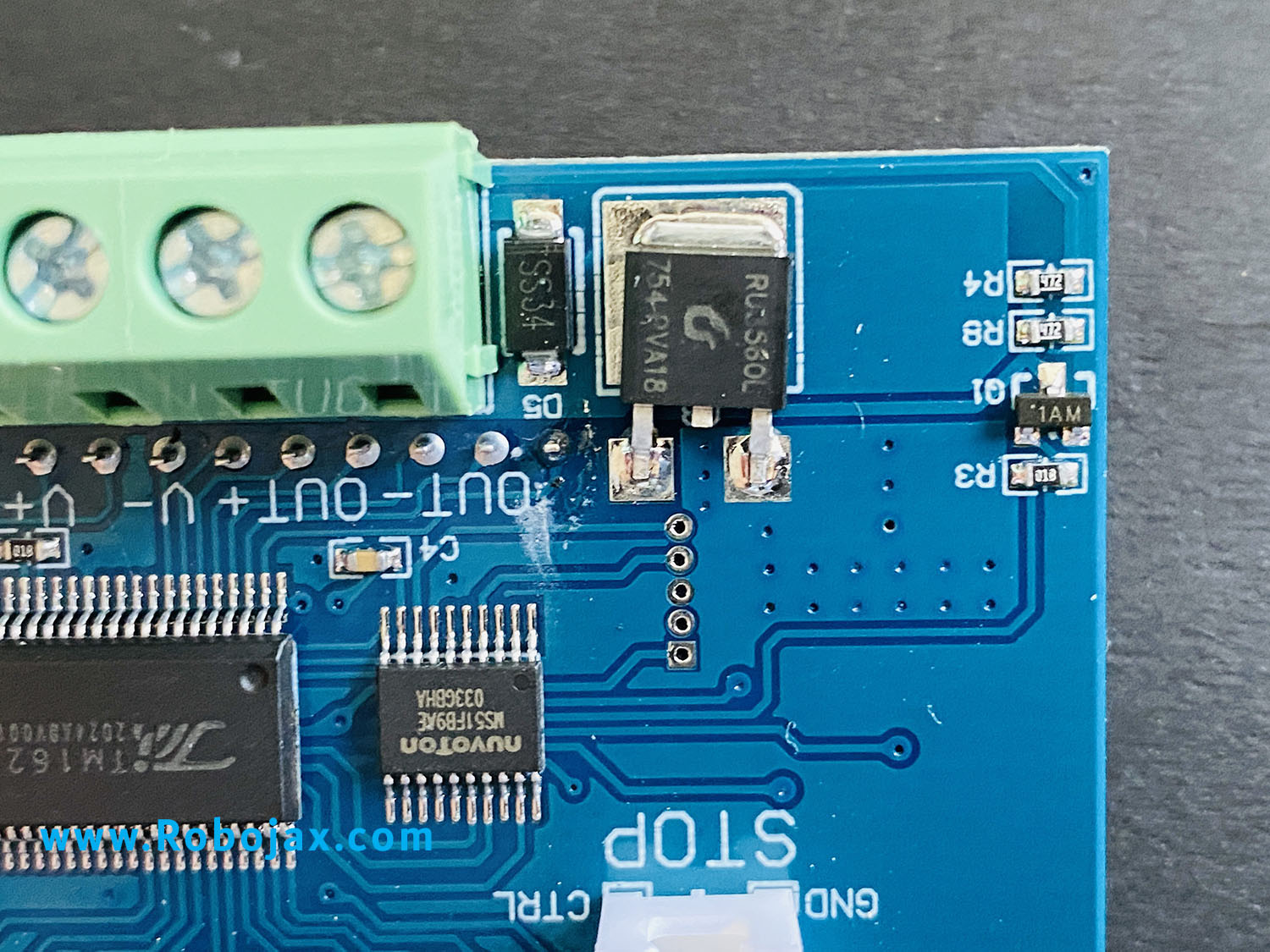

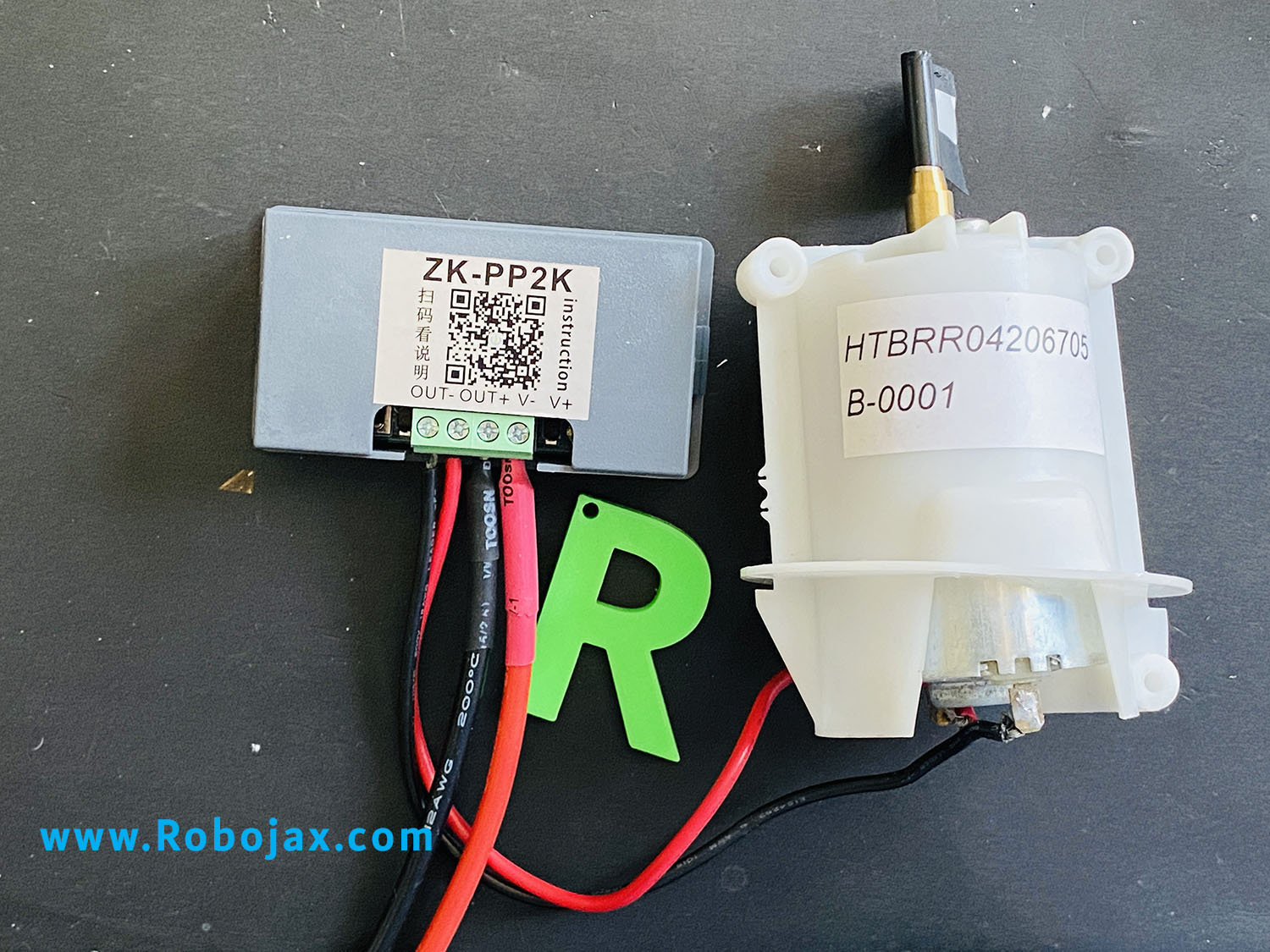

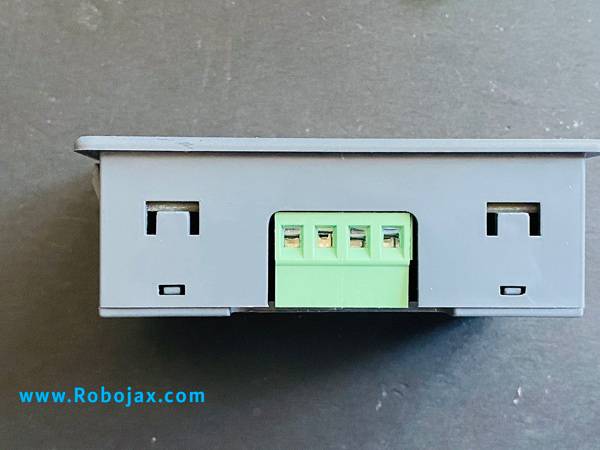

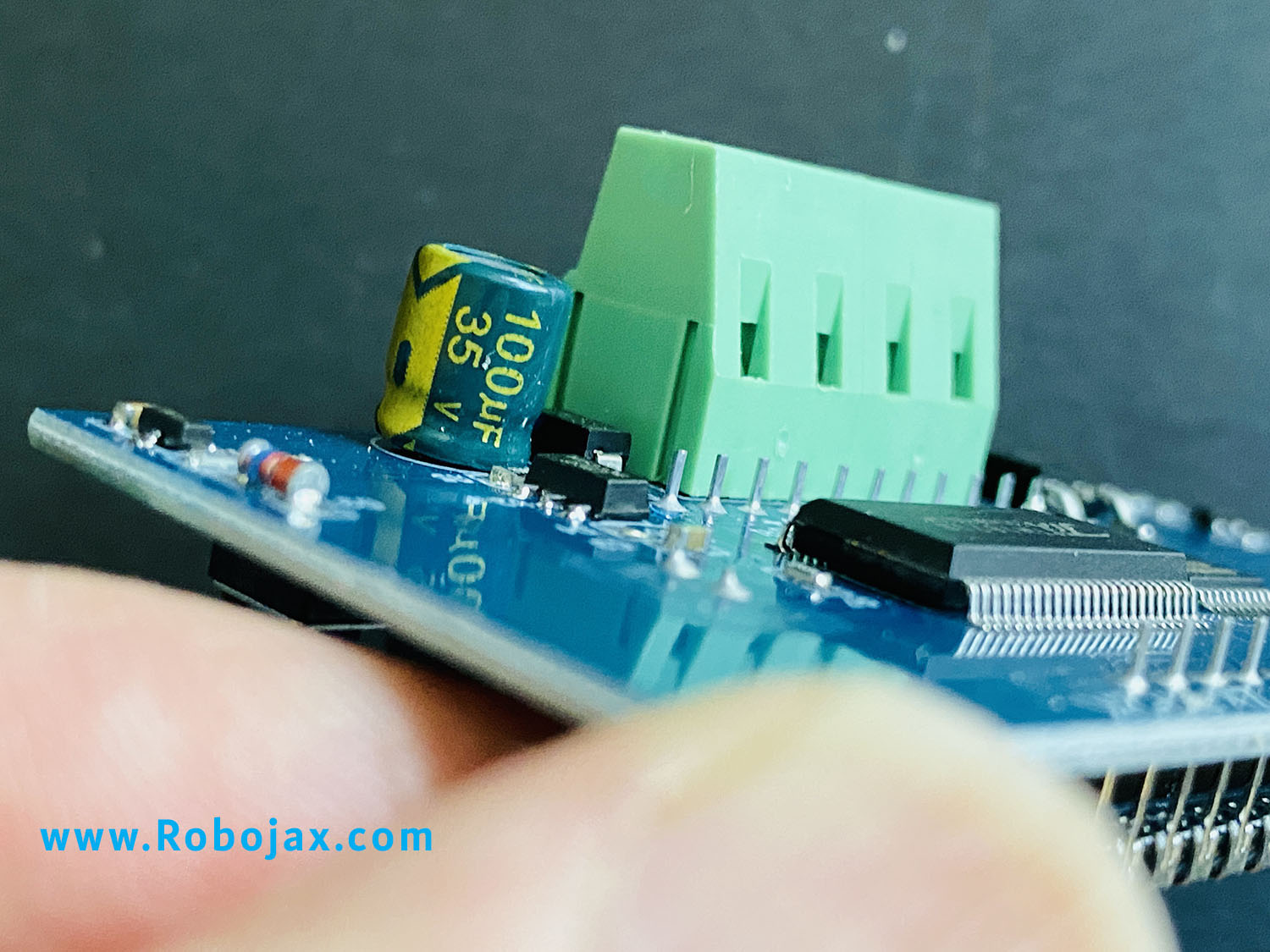

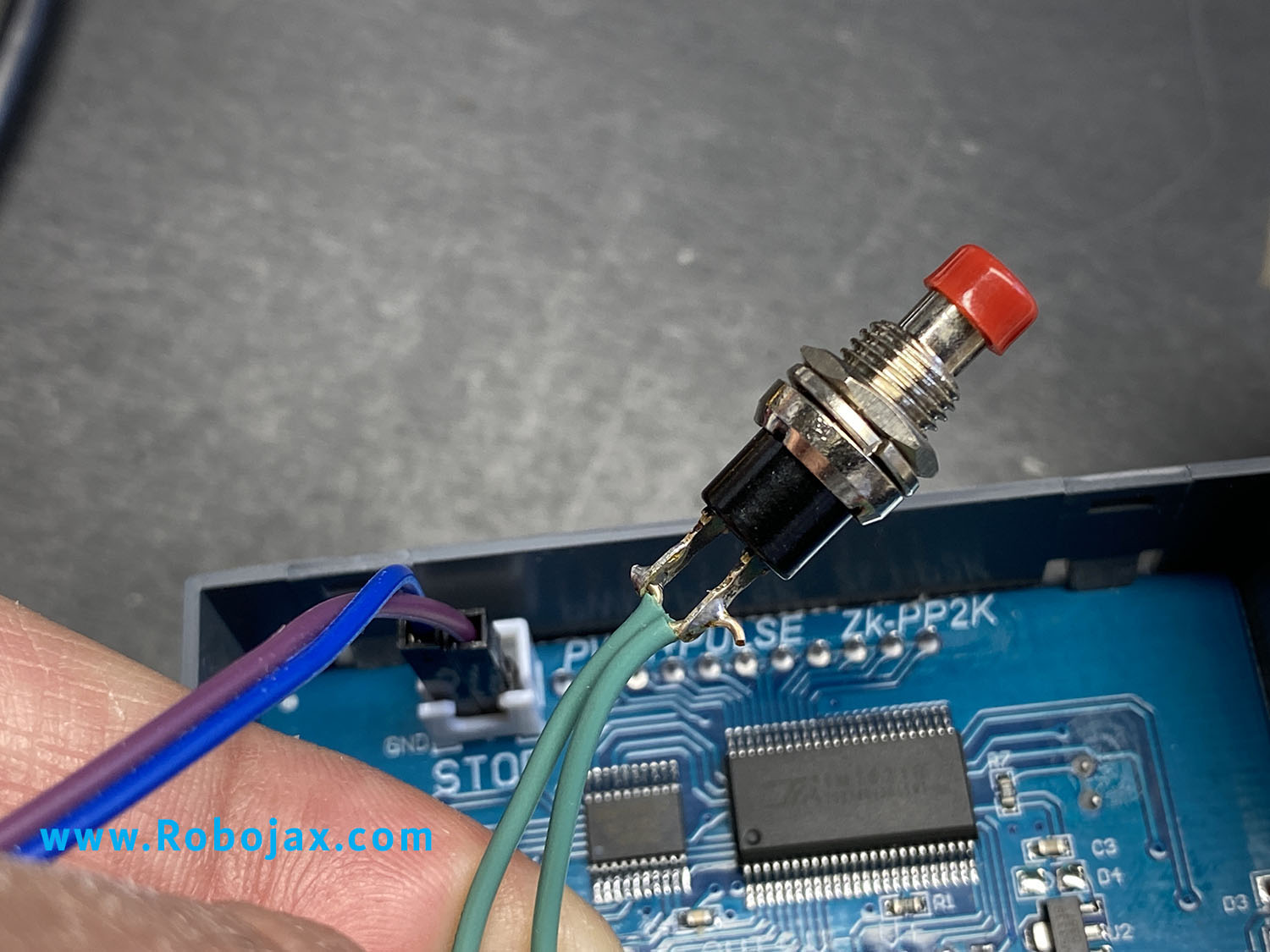

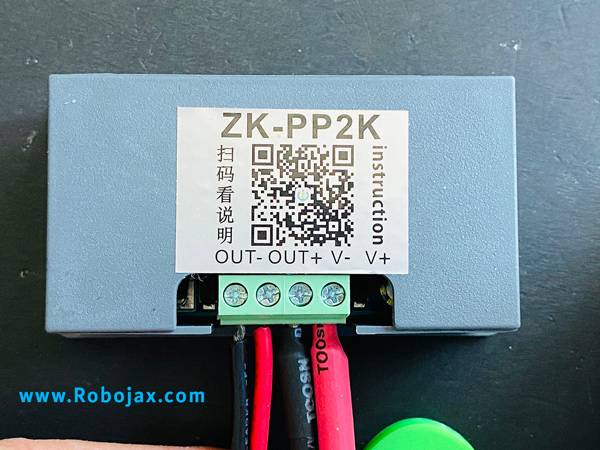

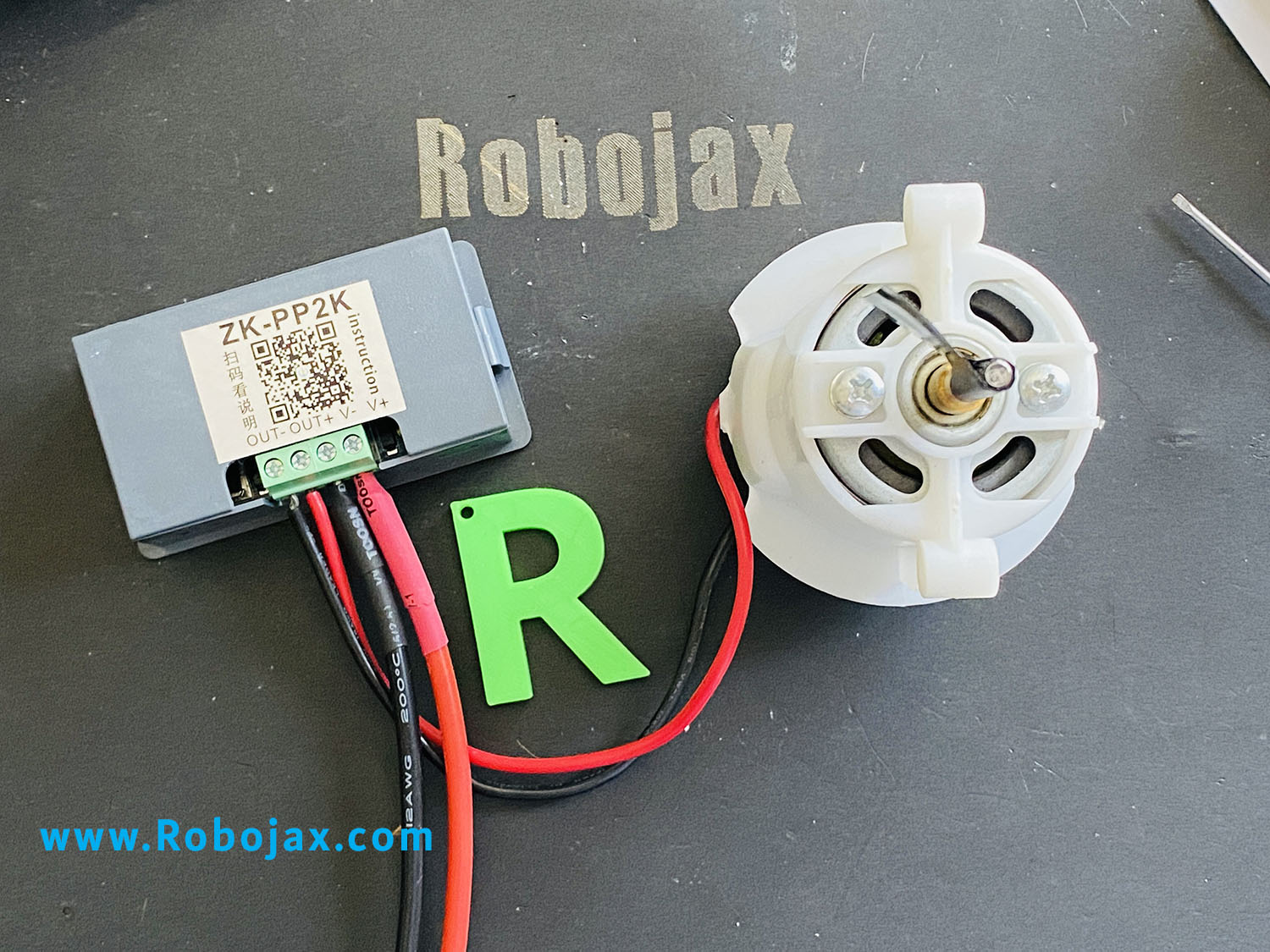

ZK-PP2K: module 1
