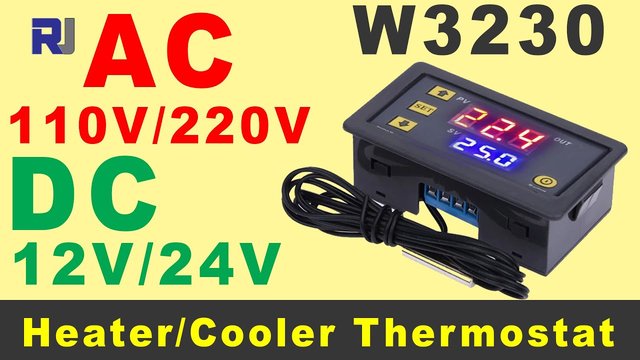

How to use W3230 Thermostat Heat and Cold Relay Controller AC DC 12V/24V/120/220V P1 to P8

The W3230 thermostat controller is a versatile device that allows you to control heating and cooling systems with precision. It can manage loads of up to 10 amperes and is compatible with both AC and DC power sources. This tutorial will guide you through its features, wiring, and programming to ensure optimal use of the thermostat in various applications.

Links to purchase W3230 are below this article.

This device is equipped with two displays for set and current temperatures, making it user-friendly. You can set it up for different functions, such as cooling or heating, depending on your needs. The controller also includes settings for temperature correction, delay start, and data lock, which enhance its functionality. For further clarification, refer to the video (in video at 00:00).

Hardware Explained

The W3230 thermostat controller comprises several key components that work together to regulate temperature. At its core is a microcontroller that processes input from the temperature sensor and controls the relay to switch the load on or off. The device features a relay capable of handling significant current loads, making it suitable for various heating and cooling applications.

Another important component is the temperature sensor, which can be immersed in liquids for accurate readings. This allows the thermostat to maintain precise temperature control, whether used in a heater or a cooling system. Understanding these components is crucial for effectively utilizing the thermostat in your projects.

Datasheet Details

• Max load control is 10A for AC and 20A for DC.
• Temperature range: -55°C to 120°C with 0.1°C resolution (up to 99.9°C).
• Delay start feature protects devices by preventing rapid cycling.
• Temperature correction allows adjustments of up to ±20°C.
• Data lock feature prevents accidental changes to settings.

Wiring Instructions

Wiring the W3230 thermostat involves connecting power, ground, and load terminals correctly to ensure safe operation. First, connect the power supply to the device. For AC versions, connect the live wire to the terminal labeled for AC input, and the neutral wire to the corresponding terminal. For DC versions, ensure the positive and negative wires are correctly positioned.

Next, connect your heating or cooling device to the relay terminals. These are typically labeled as "NO" (Normally Open) and "COM" (Common). Ensure that the device's power requirements do not exceed the relay's limits. For added safety, use appropriate gauge wires and ensure all connections are secure to prevent short circuits.

Demonstration / What to Expect

When properly set up, the W3230 thermostat will maintain the specified temperature by activating or deactivating the connected load. For example, if the target temperature is set to 32°C with a hysteresis of 2°C, the system will turn the heater on when the temperature drops below 30°C and turn it off when it reaches 32°C. Similarly, when used for cooling, it will turn on the cooling device at 34°C and off at 32°C.

Common pitfalls include incorrect wiring, which may lead to device failure, and not accounting for the temperature sensor's response time. Be sure to monitor the system during initial tests to ensure it behaves as expected (in video at 15:30).

Video Timestamps

• 00:00 Introduction
• 4:05 Settings
• 7:47: programs
• 8:39 P0 explained
• 9:05 P1 explained
• 9:43 P2 Explained
• 9:57 P3 explained
• 10: 49 P4 Explained
• 11:10 P5 Delay start
• 11:30 Demonstration: P1
• 14:37 Demo : P5
• 14:44 Demo: P6
• 16:54 P8
• 16:30 Resetting the device
• 16:59 Wiring explained
• 19:27 Heater control demo
• 23:15 cooler control demo
