DT2234 Tachometer how to use and measure RPM of brushless motor

DT2234 Tachometer how to use and measure RPM of brushless motor

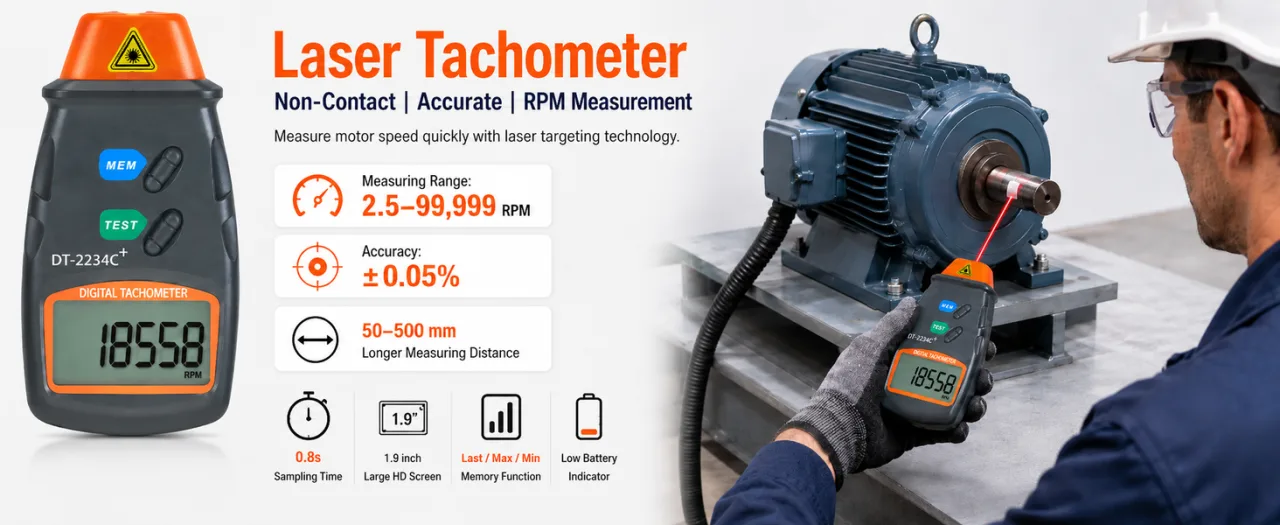

The DT2234 is a compact, handheld digital laser tachometer designed to measure the rotational speed of moving parts, typically expressed in Revolutions Per Minute (RPM). Instead of using mechanical contact, this device uses a non-contact optical method: it emits a laser beam at a reflective marker placed on the rotating object and calculates the speed based on the reflected pulses. This makes it an invaluable tool for a wide range of applications where accuracy and safety are paramount.

Its real-world value extends far beyond a simple lab experiment. You can use it to:

• Test and calibrate brushless motors for drones, RC cars, or CNC machines to ensure they are performing at their specified KV ratings.
• Diagnose and tune car engines by measuring the crankshaft or camshaft RPM to verify idle speed and overall engine health.
• Monitor industrial machinery like conveyor belts, fans, or pumps to detect slippage or mechanical wear before a failure occurs.
• Verify the speed of hard drives, turntables, or other rotating electronics for repair or restoration projects.
• Educational purposes in physics or engineering classes to demonstrate concepts of rotation and frequency.

Hardware Overview

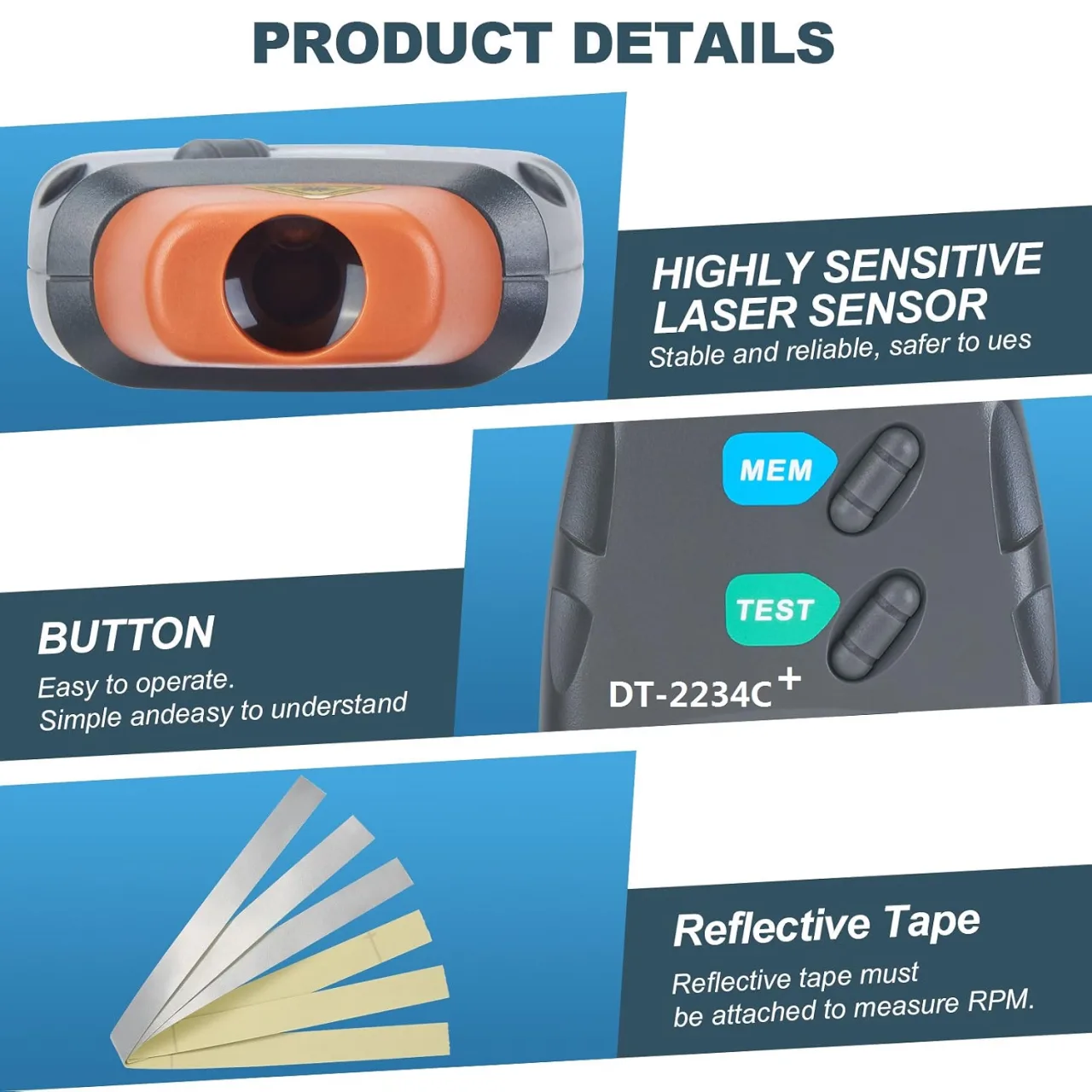

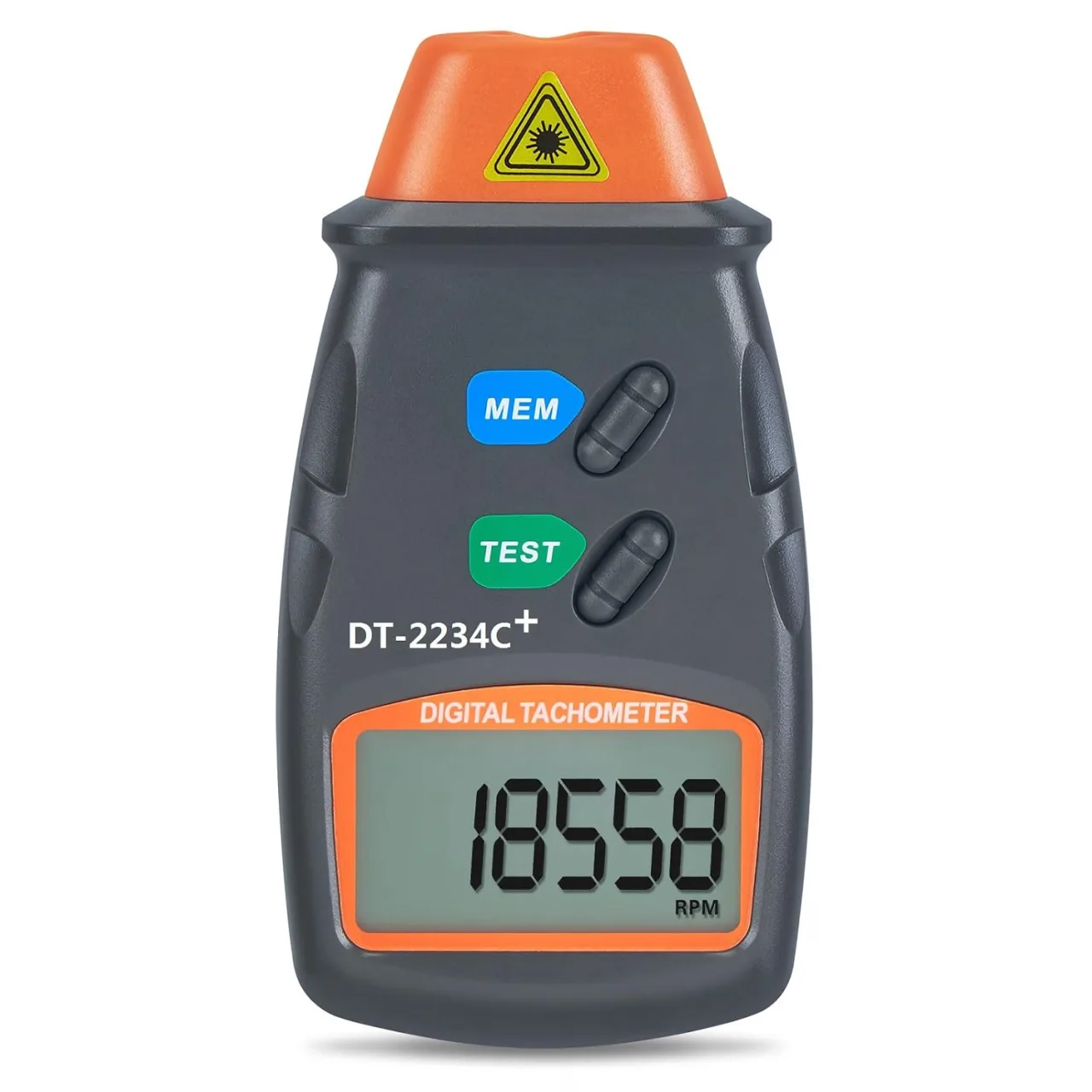

The DT2234 tachometer is a self-contained unit, so the hardware is straightforward. The device features a clear LCD screen for displaying readings, a single "Measure" button to activate the laser and take a reading, and a "Memory" button to cycle through stored values. It is powered by a standard 9V battery, which is not included in the package, so you will need to purchase one separately.

In the box, you will also find a short instruction manual and a small strip of reflective tape. This tape is essential for making accurate measurements, as the laser needs a highly reflective surface to bounce its signal back to the sensor. (in video at 00:38)

Battery

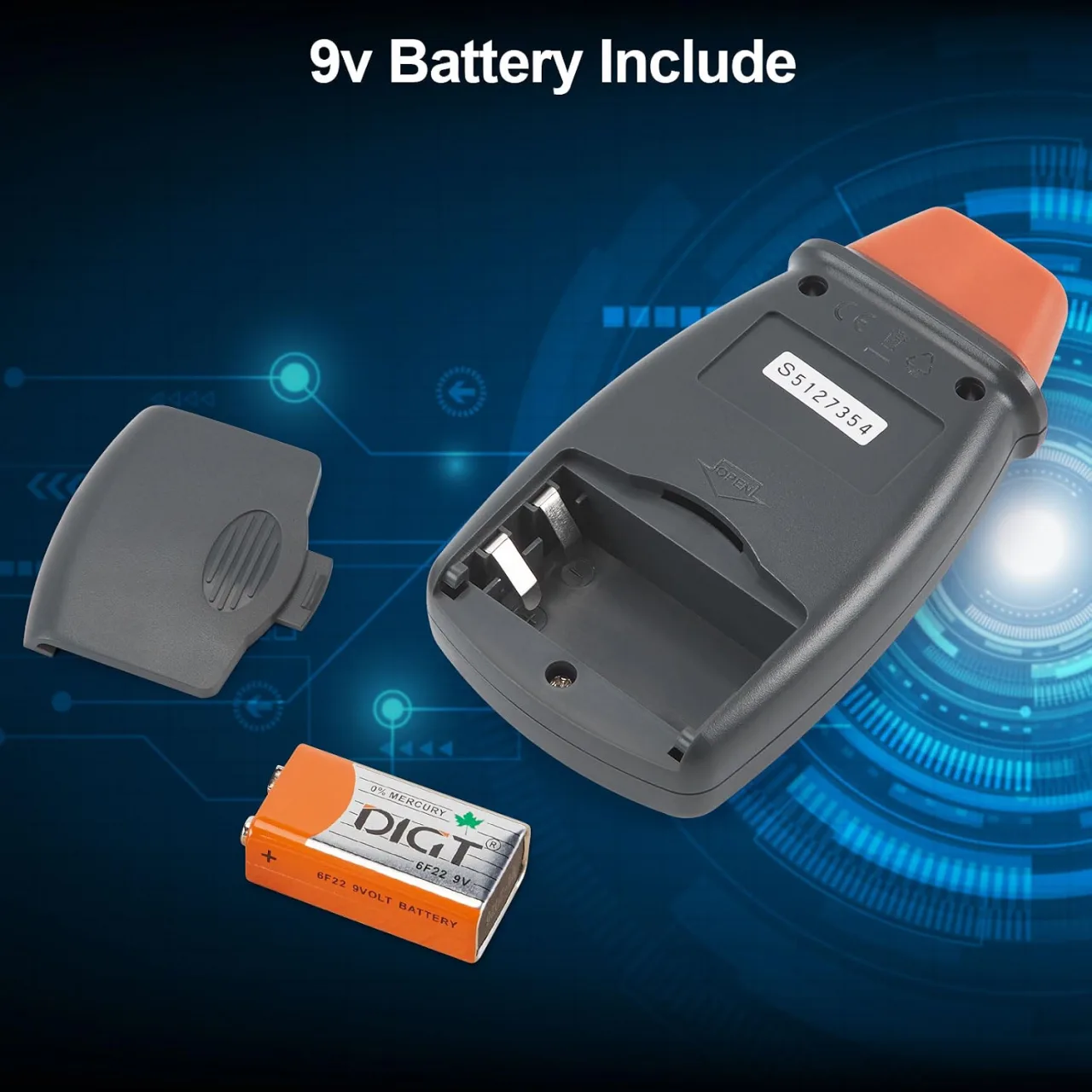

The device is powered by a 9V battery. Simply open the battery compartment on the back of the unit and connect the battery to the snap connector. Once connected, the device is ready for use. (in video at 01:56)

How to Use the DT2234

Using the tachometer is a simple process, but it requires a steady hand and a clear line of sight. Here is a step-by-step guide based on the demonstration in the video:

1. Prepare the Target: As mentioned, attach a piece of the reflective tape to the spinning object. For example, in the video, a small piece is attached to the bell of a brushless motor. (in video at 01:39)
2. Power On and Aim: Hold the tachometer steady, about 2-8 inches (5-20 cm) away from the target. Press and hold the "Measure" button. This will activate the laser beam. Ensure the red laser dot is precisely hitting the reflective tape as the object spins. (in video at 02:07)
3. Read the Measurement: The LCD screen will display the RPM value. The video shows a reading of 4800 RPM for a motor at low throttle, and 9600 RPM when the throttle is increased. (in video at 02:25)

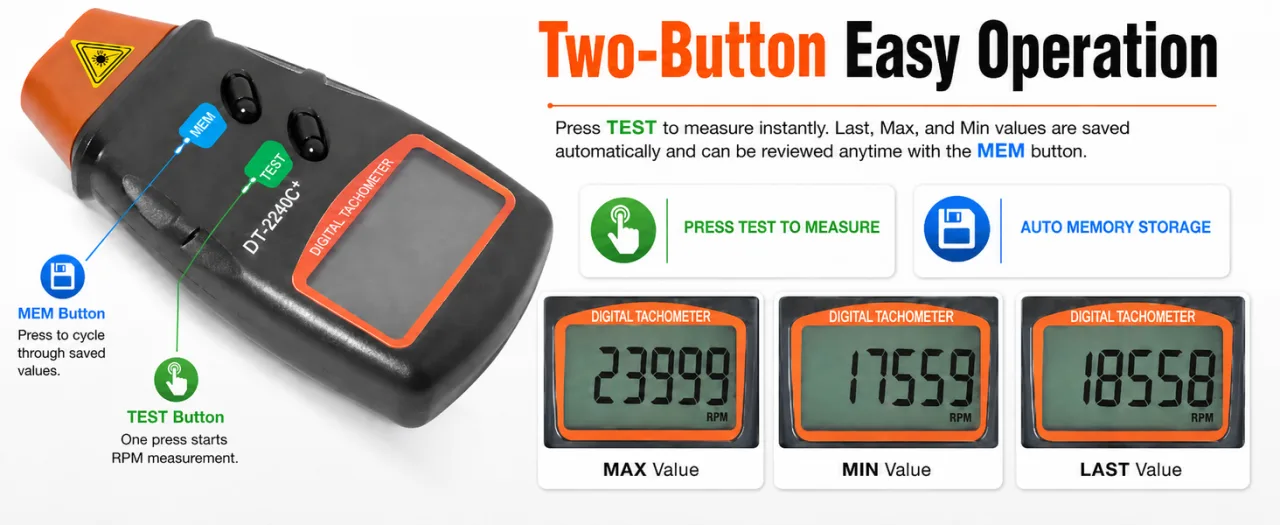

4. Access Memory: The device stores three key values from your measurement session. After you release the "Measure" button, you can press the "Memory" button to cycle through them. The first press shows "UP" (the maximum value recorded), the second shows "dn" (the minimum value), and the third shows "LA" (the latest value). (in video at 02:49)

Live Project Demonstration

In the video, the presenter demonstrates the tachometer's practical use in two different scenarios. First, he measures the RPM of a brushless motor, showing how the reading jumps from 4800 RPM to 9600 RPM when the throttle is increased. This confirms the motor's speed can be accurately tracked in real-time. (in video at 02:45)

He then uses the device to measure the RPM of a car engine. By pointing the laser at the engine's rotating components, he is able to get a stable reading of 162 RPM at idle, and then demonstrates how the reading changes when the accelerator is pressed. This showcases the device's versatility and its ability to measure speeds in more complex, real-world environments. (in video at 03:45)

Chapters

• [00:06] Introduction to the DT2234 Tachometer
• [00:38] Hardware Overview and Power Requirements
• [00:52] Understanding the Memory Modes (Max, Min, Latest)
• [01:24] Setting Up the Reflective Tape
• [02:07] Measuring RPM of a Brushless Motor
• [02:49] Reading Stored Values from Memory
• [03:45] Measuring RPM of a Car Engine
• [04:21] Conclusion and Final Thoughts
