Pro Micro ATmega32U4 Arduino Pins: 5V and 3.3V Explained
In this video, you will learn about the Pro Micro ATMEGA32U4 Arduino board and how to connect it to external power or USB. Digital and analog pins are explained; PWM is tested.
Pro Micro Driver. You should not need a driver, as the Arduino IDE has all the drivers for this board. It is located inside your Arduino folder: arduino-1.x.x\drivers, where x is your version of the Arduino IDE. But you may download the zip driver from the links below.
Images

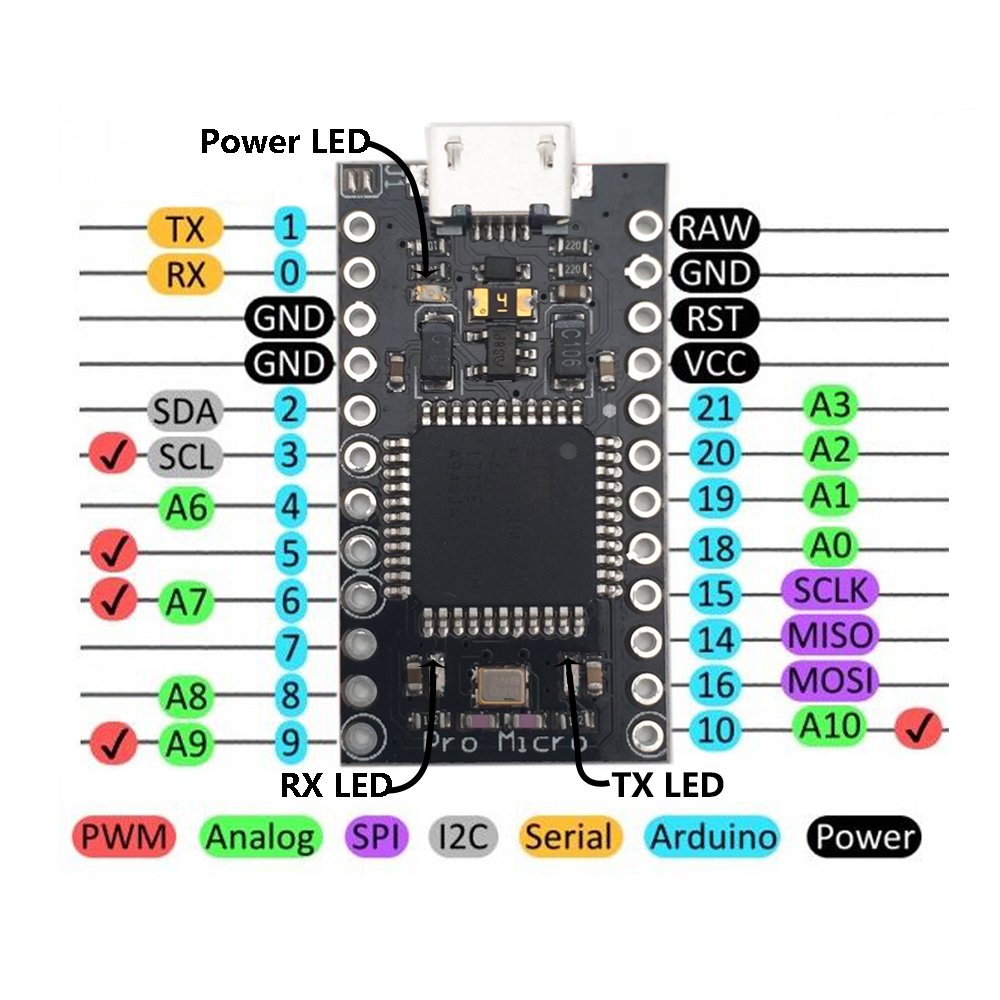

Pin Mapping for Pro Micro Board
Arduino Pro Micro: Pins explained
Arduino Pro Micro:Soldreing Pin headers
Arduino Pro Micro: Powering up from external source

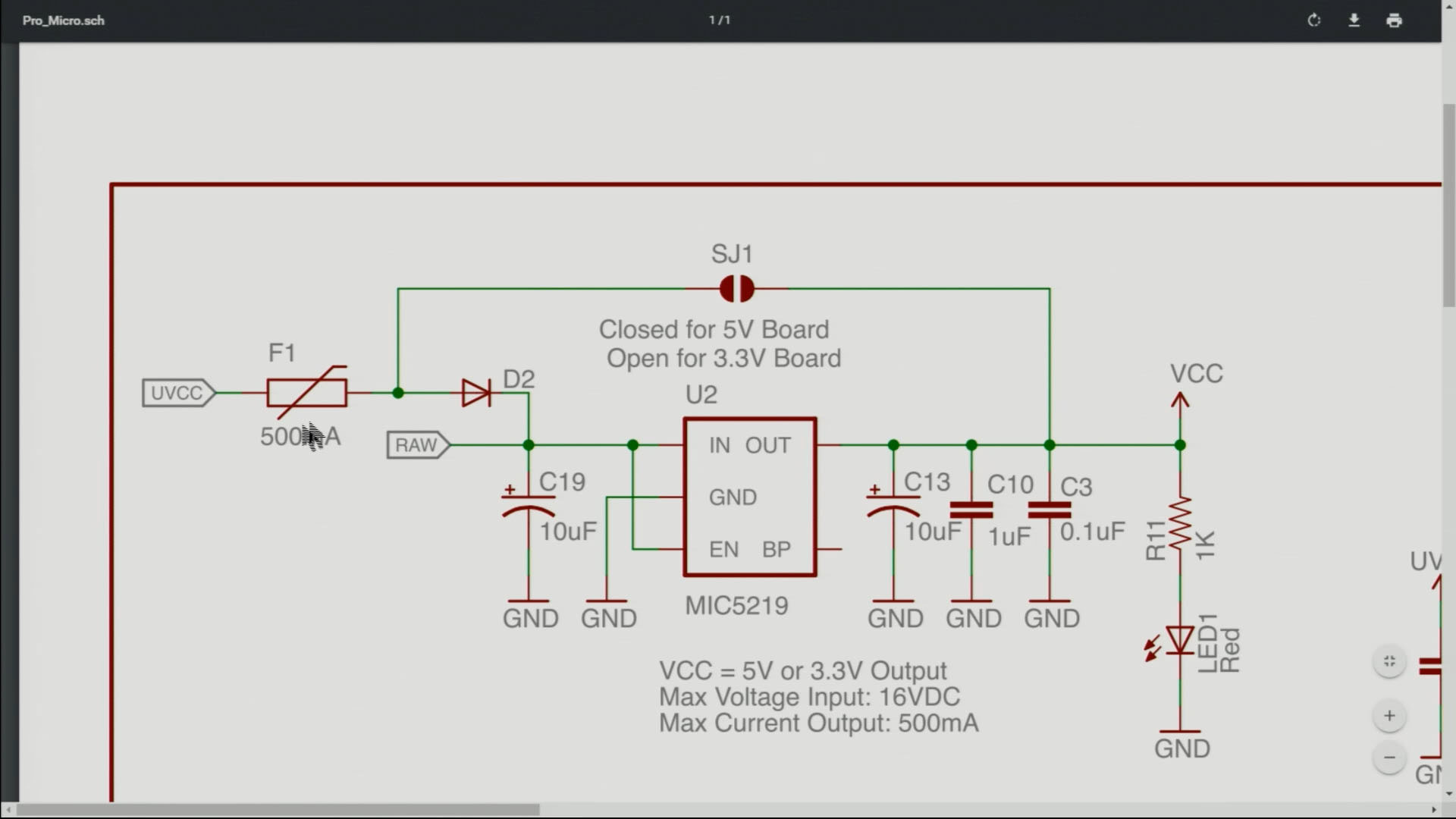

Arduino Pro Micro: J1 Connector explained

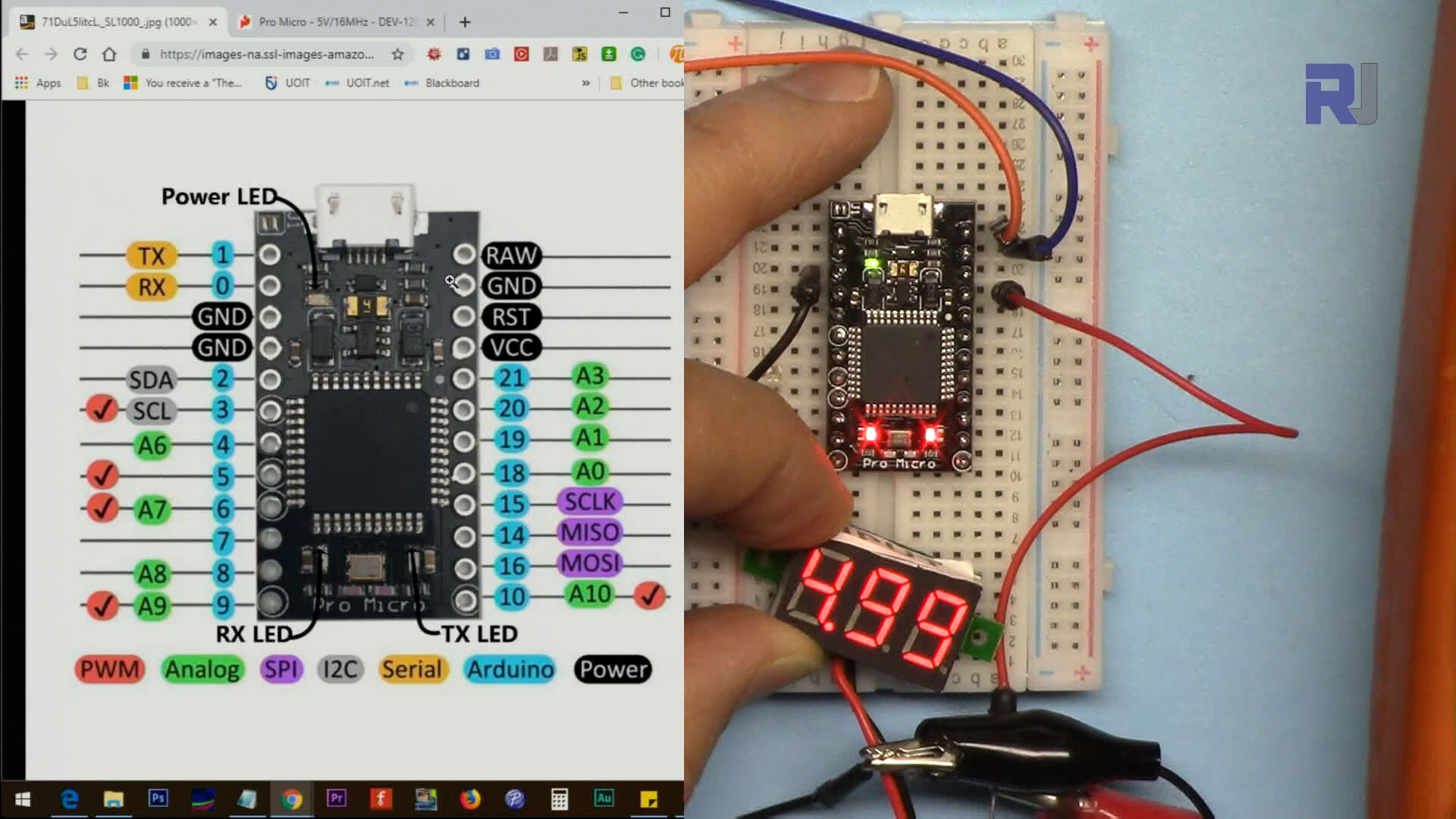

Arduino Pro Micro: Measuring VCC Pin voltage
Arduino Pro Micro: Connecting LED to pin for Blink program
Arduino Pro Micro: Controlling Servo Motor
