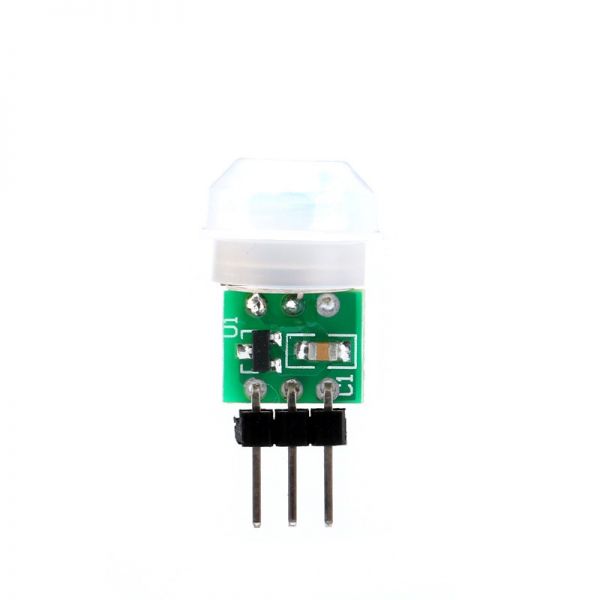

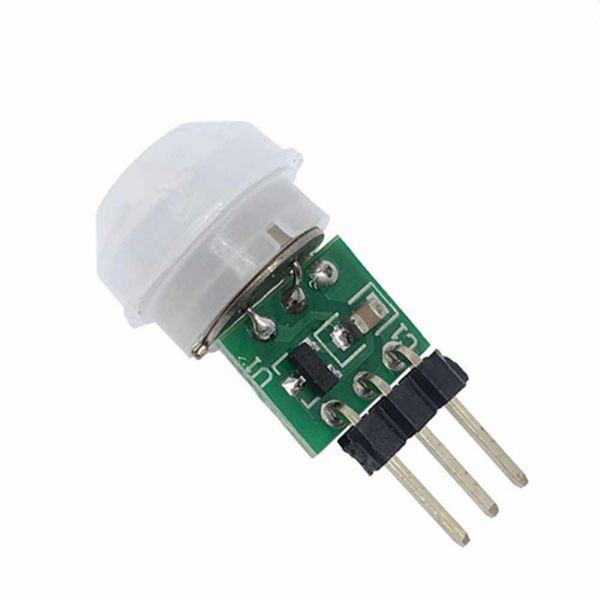

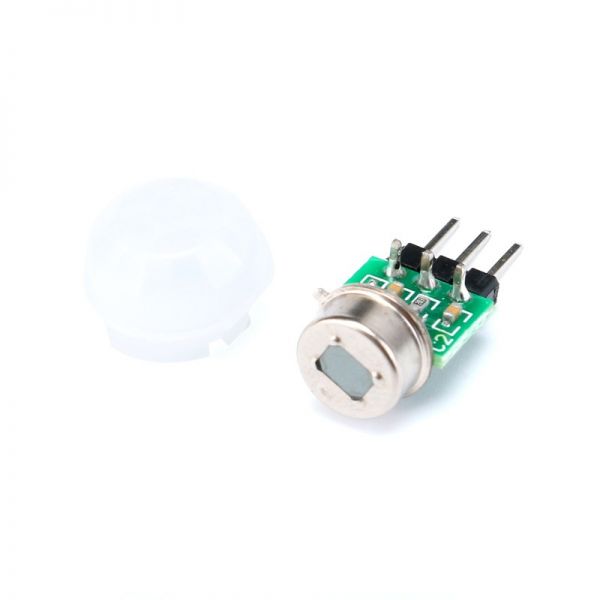

AM312 is a new digital intelligent PIR sensor. This smart digital detector offers a complete motion detector solution, with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch.
Features and Benefits
- Digital signal processing (DSP)
- Two-way differential high-impedance sensor input and temperature compensation
- Built-in filter, screening the interference from other frequencies
- Schmitt trigger output
USB alarms, PIR motion detection, intruder detection, occupancy detection, motion sensor lights, network cameras, car security systems, etc.
- Supply voltage max. 3.3 to 12V
- Working temperature -20°C to 85°C
- Working current min 12μA, typ 15μA, max 20μA
- Sensitivity threshold value 120μV (non-adjustable)
- Output low current 10mA
-

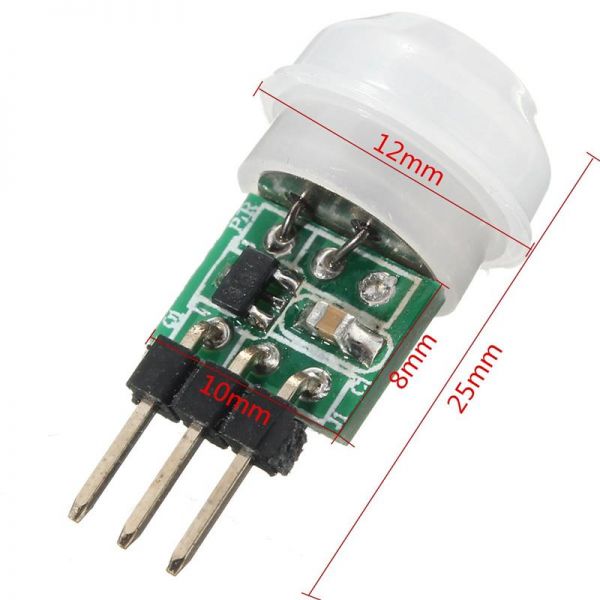

PCB Dimensions: 10mm x 8mm
-
Total size: Approx. 12mm x 25mm
