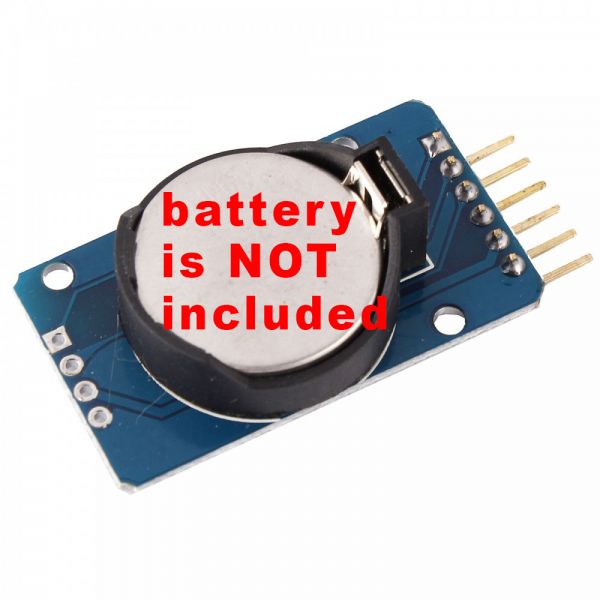

DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, to disconnect the main power supply and maintain accurate timekeeping. The integrated oscillator improves long-term accuracy of the device and reduces the number of components on the production line. The DS3231 is available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.
The RTC maintains seconds, minutes, hours, day, date, month, and year information. For months with less than 31 days, the end date is automatically adjusted, including corrections for leap years. The clock operates in either the 24-hour or 12-hour AM/PM format. It provides two configurable alarm clocks and a calendar that can be set to a square-wave output. Address and data are transferred serially through an I2C bidirectional bus.
A precision temperature-compensated voltage reference and comparator circuit monitors the status of VCC to detect power failures, provide a reset output, and, if necessary, automatically switch to the backup power supply. In addition, the /RST pin is monitored for manually generating a µP reset.
In addition to timekeeping and high precision, the DS3231 also has some other features that extend the system's capabilities. The device integrates a very precise digital temperature sensor, accessible through the I2C interface (at the same time). This temperature sensor has an accuracy of ±3°C. The on-chip power supply control circuit can automatically detect and manage the main and standby power (i.e., low-voltage battery) to switch between power supplies. If the main power fails, the device can continue to provide accurate time and temperature; performance is unaffected. When the main power is restored or the voltage returns to the allowable range, the on-chip reset function can restart the system microprocessor.
The RTC maintains seconds, minutes, hours, day, date, month, and year information. For months with less than 31 days, the end date is automatically adjusted, including corrections for leap years. The clock operates in either the 24-hour or 12-hour AM/PM format. It provides two configurable alarm clocks and a calendar that can be set to a square-wave output. Address and data are transferred serially through an I2C bidirectional bus.
A precision temperature-compensated voltage reference and comparator circuit monitors the status of VCC to detect power failures, provide a reset output, and, if necessary, automatically switch to the backup power supply. In addition, the /RST pin is monitored for manually generating a µP reset.
In addition to timekeeping and high precision, the DS3231 also has some other features that extend the system's capabilities. The device integrates a very precise digital temperature sensor, accessible through the I2C interface (at the same time). This temperature sensor has an accuracy of ±3°C. The on-chip power supply control circuit can automatically detect and manage the main and standby power (i.e., low-voltage battery) to switch between power supplies. If the main power fails, the device can continue to provide accurate time and temperature; performance is unaffected. When the main power is restored or the voltage returns to the allowable range, the on-chip reset function can restart the system microprocessor.
Module parameters:
1. Size: 38mm (length) * 22mm (W) * 14mm (height)
2. Weight: 8g
3. Operating voltage: 3.3 - 5.5 V
4. Clock chip: high-precision clock chip DS3231
5. Clock Accuracy: 0-40°C range, the accuracy is 2ppm, the error is about 1 minute
6. Two calendar alarm clocks
7. Programmable square-wave output
8. Real-time clock generates seconds, minutes, hours, day, date, month, and year timing and provides valid leap year compensation until the year 2100
9. Chip temperature sensor with an accuracy of ± 3°C
10. Memory chip: AT24C32 (32K storage capacity)
11. IIC bus interface, maximum transmission speed of 400KHz (working voltage of 5V)
12. Can be cascaded with other IIC devices; 24C32 addresses can be modified by shorting A0/A1/A2; the default address is 0x57
13. Includes a rechargeable LIR2032 battery to ensure the clock continues to run normally after a power failure.
14. Packaging: single anti-static packaging
1. Size: 38mm (length) * 22mm (W) * 14mm (height)
2. Weight: 8g
3. Operating voltage: 3.3 - 5.5 V
4. Clock chip: high-precision clock chip DS3231
5. Clock Accuracy: 0-40°C range, the accuracy is 2ppm, the error is about 1 minute
6. Two calendar alarm clocks
7. Programmable square-wave output
8. Real-time clock generates seconds, minutes, hours, day, date, month, and year timing and provides valid leap year compensation until the year 2100
9. Chip temperature sensor with an accuracy of ± 3°C
10. Memory chip: AT24C32 (32K storage capacity)
11. IIC bus interface, maximum transmission speed of 400KHz (working voltage of 5V)
12. Can be cascaded with other IIC devices; 24C32 addresses can be modified by shorting A0/A1/A2; the default address is 0x57
13. Includes a rechargeable LIR2032 battery to ensure the clock continues to run normally after a power failure.
14. Packaging: single anti-static packaging
Wiring instructions (with Arduino Uno R3 for example):
SCL → A5
SDA → A4
VCC → 5V
GND → GND
SCL → A5
SDA → A4
VCC → 5V
GND → GND
