The Power Module is a simple way of providing your APM/ArduFlyer with clean power from a LiPo battery, as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.

Note: The Power Module is only designed to power APM/ArduFlyer, an RC receiver, and accessories (GPS, radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.

Features:

·Max input voltage: 30V

·Max current sensing: 90A

·Voltage and current measurement configured for 5V ADC

·Switching regulator outputs 5.3V and 3A max

·6P Molex cable plugs directly to APM/ArduFlyer 2.5's 'PM' connector

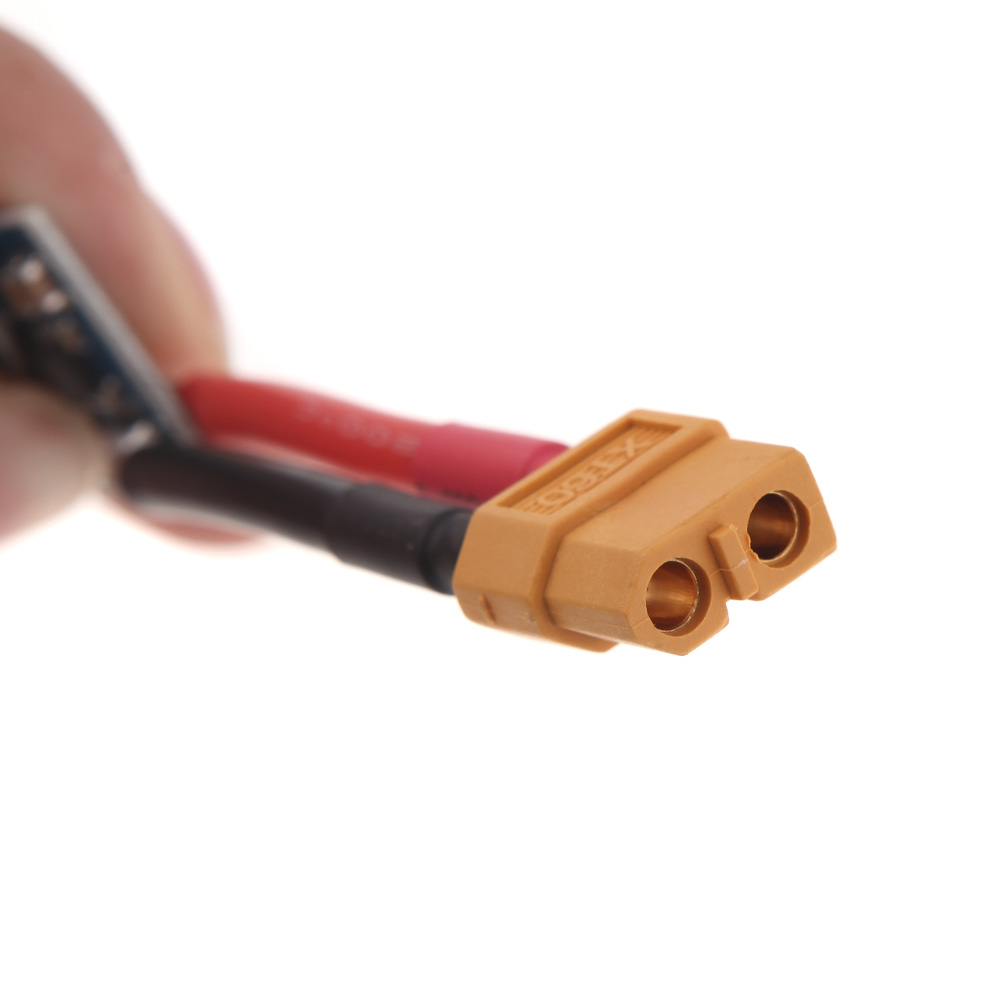

XT60 connector

·Dimensions (mm): 25 x 21 x 9

·Weight (g): 17 (including all wires)
