APM has a companion OSD board called MinimOSD. It reads all the MAVLink data in the APM telemetry stream and overlays it on the video stream if you are using an on-board camera and wireless video transmitter. This is useful if you are flying in First Person View (FPV) mode or do not want to use a laptop in the field to see your telemetry data in the Mission Planner.

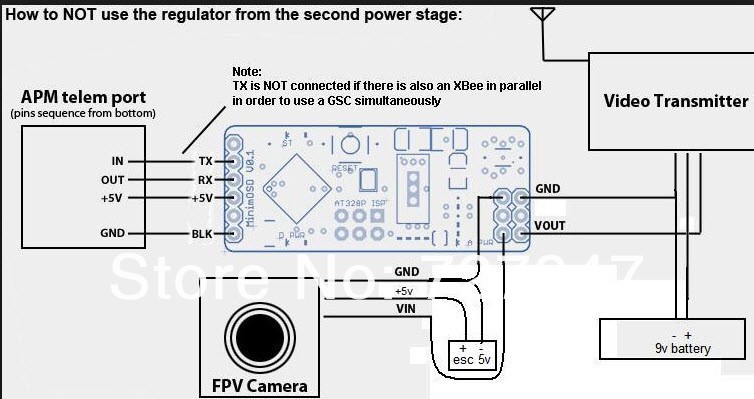

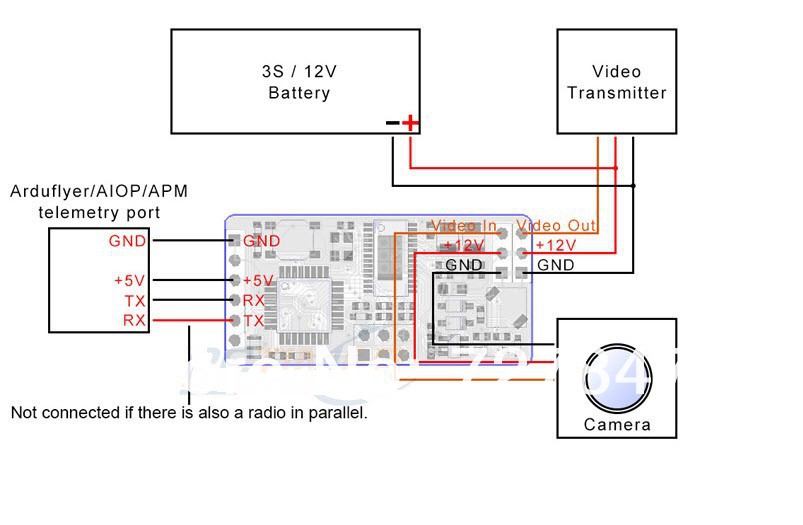

Instructions on connecting and using the MinimOSD board via the APM telemetry port are here. Connection photos with APM 1 and APM 2 are below.

Important note: You cannot use the OSD when your APM 2. is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD.

Note : this OSD is the wider version; it cannot be used with the normal OSD shell.

Important note: You cannot use the OSD when your APM 2.x is also connected via USB (they share the same port). Make sure you disconnect your USB cable from the APM 2 board before attempting to use the OSD.

Size: 58 x 21 cm
