Ublox 6M GPS Receiver with Compass for APM

These are pre-configured, flashed with the correct settings, and tested to make them plug and play.

    Super Bright LED
    Black plane with standard Mk style mounting holes 45mm X 45mm
    Ublox Neo 6M Chipset
    38400 bps (Default) Changed to 115200bps!
    Output GGA, GSA, and RMC frames
    1Hz (Default) Changed to 5Hz!
    Permanent Configuration Retention
    Cable included

+ Moved LED to the top
+ Bigger battery
+ Compass on board
+ 6-pin connector for easy connect to MEGA BLACK
+ 4-pin connector for GPS-only use
+ 4-pin connector for compass-only use
+ GPS "PCB HOOD" for more EMI/RFI shielding

Can use both 4-pin connectors at once.

The GPS unit is pre-configured for MultiWii. Unlike other shops that send it out with default settings, this one is ready to use.

Pre-tested = PLUG AND PLAY for MWC 2.1!

MultiWii GPS-assisted Position Hold and RTH functions

NEO-6M Ublox u-blox GPS Module with on-board compass HMC5883l (compass) (mag)

Description:

- Main chip: U-BLOX NEO-6M
- C/A code, 1.023MHz
- Receiver Frequency: L1 [1575.42MHz]
- Locate performance
- 2D: 3m (Average)
- 2D: 2m (average), with WAAS
- Drifting <0.02m/s
- Accuracy: 1us
- Coordinate system: WGS-84
- Max altitude height: 18000
- Max speed: 515m/s
- Acceleration: <4g

Specification:
- Tracking sensitivity: -161dBm
- Capture sensitivity: -148dBm
- Cold start time: 38s average
- Warm start time: 35s average
- Hot start time: 1s average
- Capture time: 0.1s average
- Temperature: -40 to +80
- Wide power supply voltage: +3.5V~+5.5V

Ublox GPS Module V2.0

This is a white GPS module.

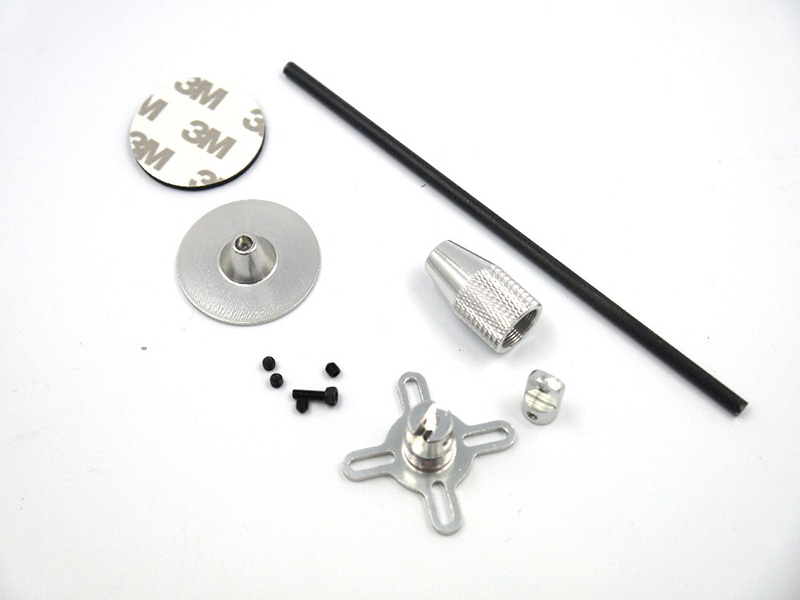

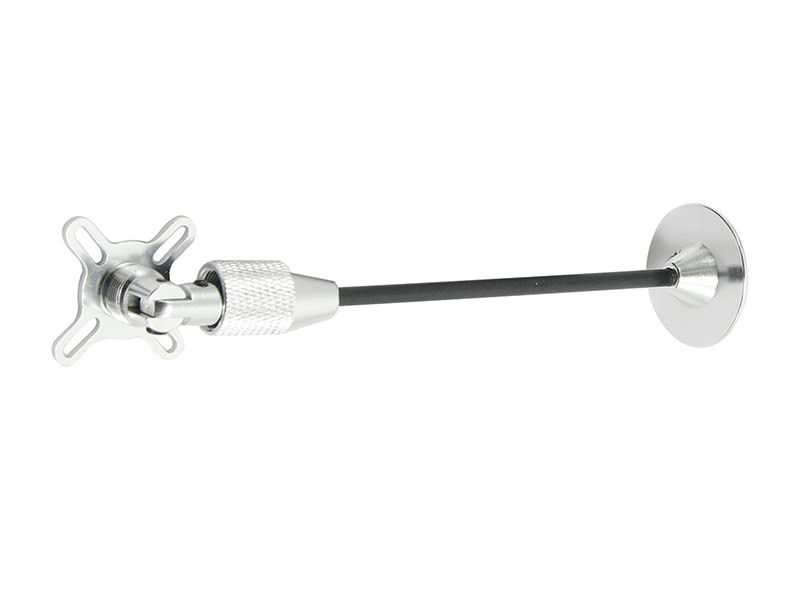

Stand color may vary. Silver, black, magenta, or another color based on stock availability will be shipped.

If you need a particular color, confirm before placing your order.
