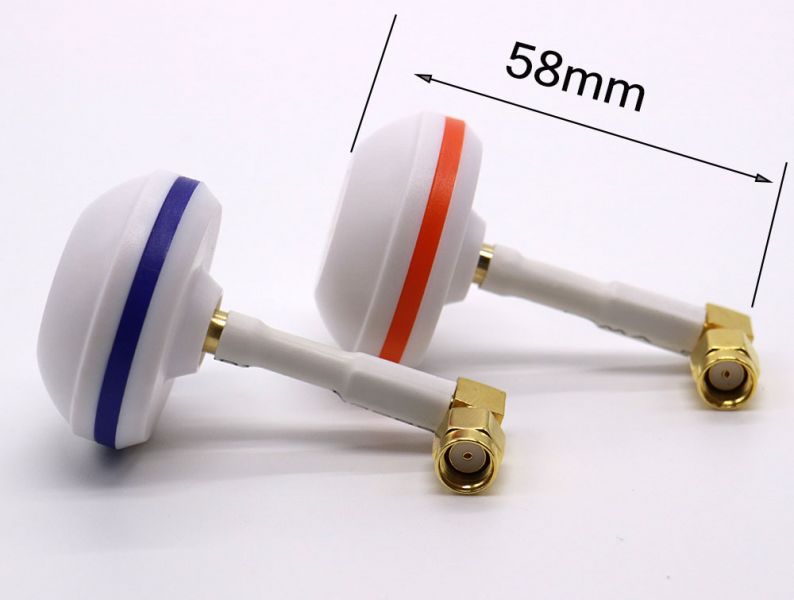

5.8 GHz circularly polarized mushroom L-shape antenna RP-SMA

- The new 5.8G omni-directional efficient mushroom antenna is the result of strict debugging, with SWR lower than 1.5, which is a perfect match for FPV aerial photography.
- It can effectively expand the launch distance and angle.
- Applying high-quality flexible antenna material allows bending the antenna at an arbitrary angle without deformation.
- Suitable for: RC helicopters.

RP-SMA connector

Specifications:
- Gain: 2.0dBi-2.5dBi
- Standing-wave ratio (SWR): <1.5
- Directivity: Omni-directional
- Center frequency: 5.8 GHz
- Connector: SMA
- Diameter of connector: 7.67 mm
- Length: Transmitter antenna: 58 mm
- Receiver antenna: 58 mm
- Net weight: 12 g (Tx/Rx)
- Package weight: 69 g
