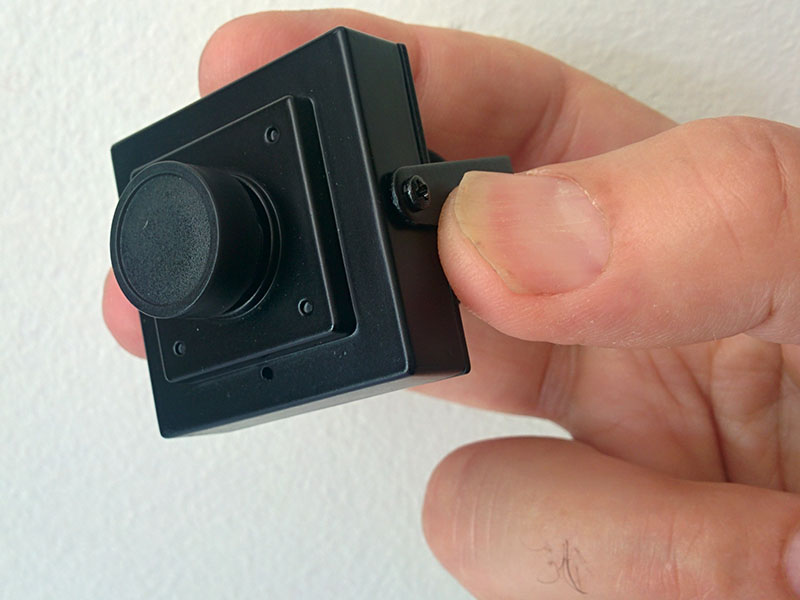

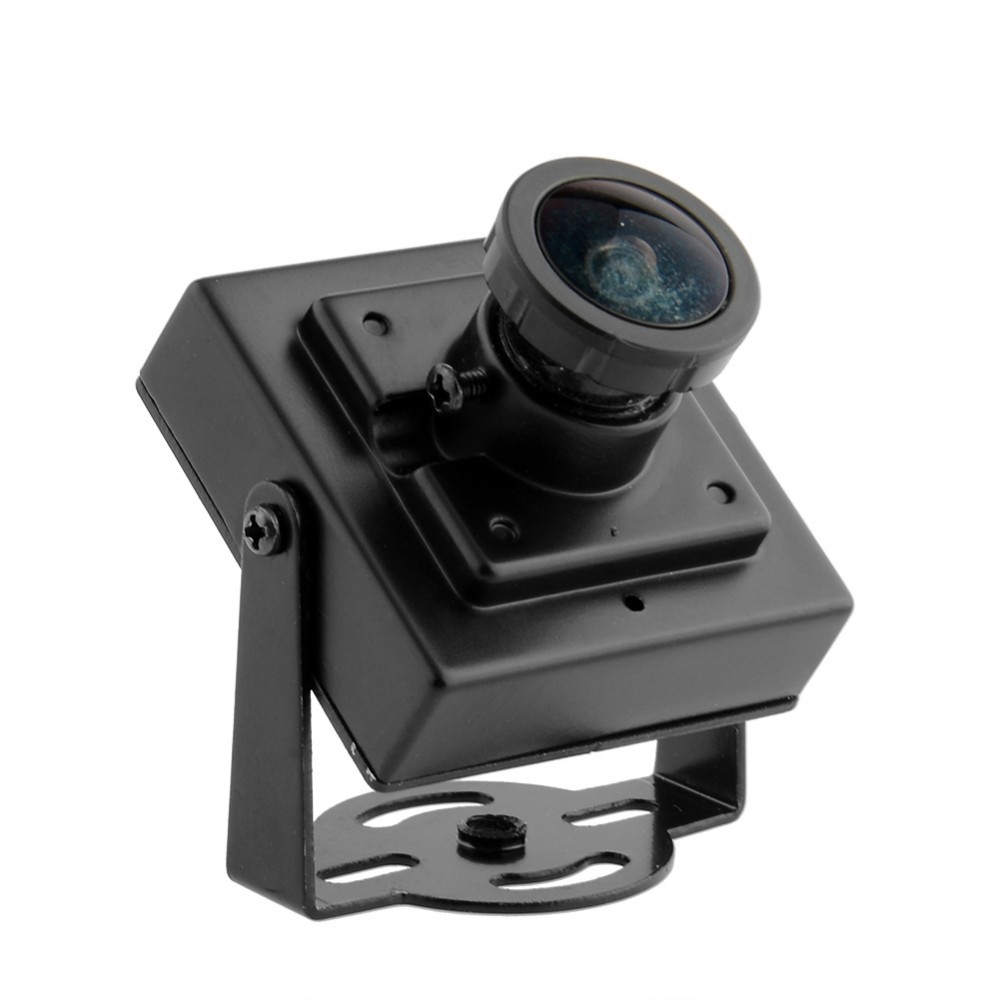

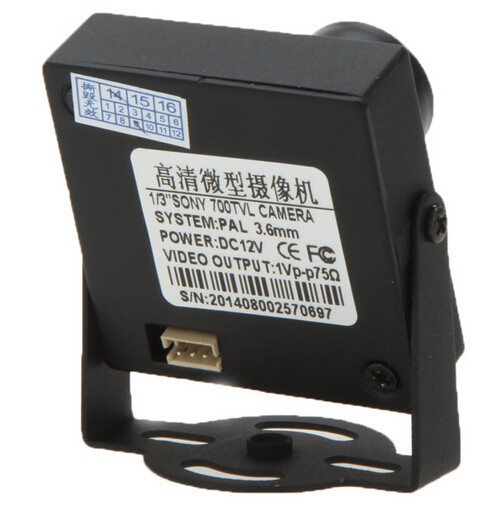

This unit is a micro-compact camera with the size of a B/W camera 36mm x 36mm.
With its built-in image enhancement technology and advanced production know-how, this camera offers an extraordinarily high-quality picture.
It works best at 12V DC. It provides excellent low-lux sensitivity of 0.05 lux/F2.0 even with the pinhole lens mounted.
A high-quality audio function can be built-in as an option.
State-of-the-art technology and fashionable design, with the smallest
possible size, make this camera ideal for most CCTV
and a variety of covert applications.

Material: Steel
Color: Black
Technical parameters:
Pickup device: Color, 8240+8510 chips
Horizontal resolution: 700TVL
System format: PAL/NTSC PAL (H x V): 512 x 582 NTSC (H x V): 542 x 492
Electronic shutter: PAL = 1/50 - 1/100,000 seconds  NTSC = 1/60 - 1/120,000 seconds
Minimum illumination: 0.1 Lux (F: 1.2)
SNR (Signal to Noise Ratio): > 48dB (automatic gain closed)
Gamma: 0.45
Backlight compensation: ON/OFF switchable
Lens: Original 3.6mm lens (selective)
Automatic gain: ON/OFF
Automatic white balance: ON/OFF
Lens installation: C/CS
Video output: 1 Vp-p, 75Ω
Power input: DC 12V
Working temperature range: -10°C to 50°C (maximum humidity 95%)
Storage temperature range: -20°C to 60°C (maximum humidity 95%)
Applications: Widely used for four-axis, fixed-wing, helicopters, and other aerial aircraft.
Features: Supports OSD menu control, clean and fine image, vivid picture quality, low illumination, wide voltage, and low power consumption.
