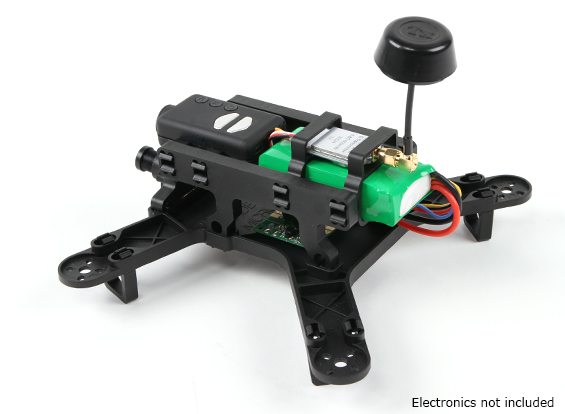

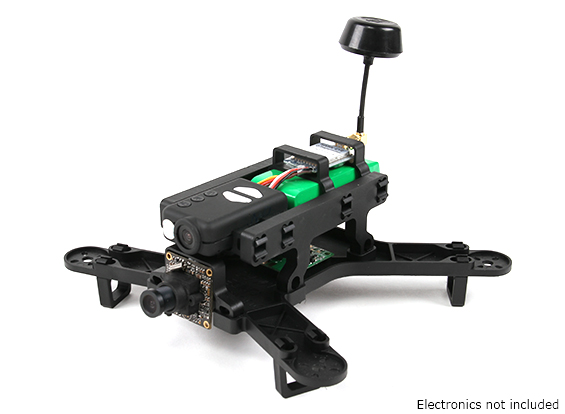

The Spidex Micro 220 by Quaternium is a compact micro FPV quad that maximizes the use of space with a clean, purpose-driven layout.

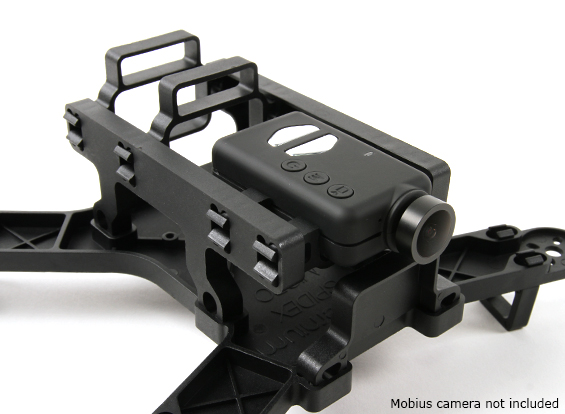

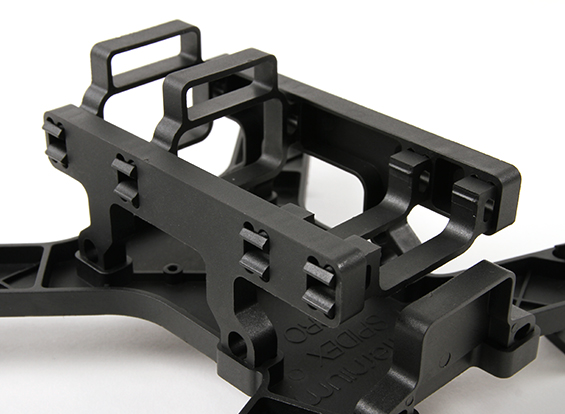

Designed by Quaternium initially as a 3D-printed, snap-together quad, it gained in popularity quickly. The small 220mm wheelbase makes this quad fast and nimble, but there is space/a pocket for everything from a Mobius mounting rail, battery slot, VTX cradle, and even up to a 30mm FPV cam. There are direct mounting points on the frame for the 30.5mm FC and a bay for the RX.

The small wheelbase does not inhibit it from still spinning up to 5-inch props, and motors up to 2204s can be installed by flipping the lower plate. The snap-together construction makes this a snap to put together and makes crash repair just as easy.

The Spidex was too cool to only let those with 3D printers have all the fun, so we worked with Quaternium to bring this quad to the public by molding it.

Features:

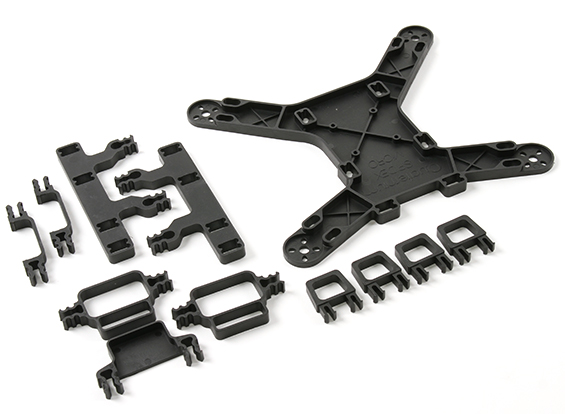

• Snap-together construction
• Mounting positions for all your gear
• Compact 220mm wheelbase

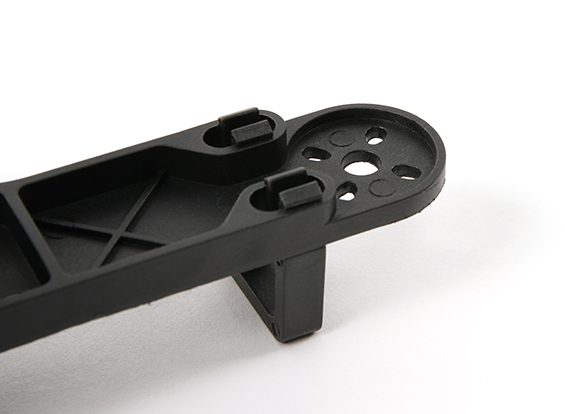

• Motor mounting from 12~16mm
• Durable glass-filled injected plastic

Specs:
Wheelbase: 220mm
Weight:95g

Recommended setup:
Quanum 1806 motors
Multistar 10A ESC
5-inch Gemfan Props
600mA ImmersionRC VTX
CC3D or Naze32 FC
Multistar 1400mAh Race spec battery
