Review of XY-GMOS 10A MOSFET Motor driver and HIGH LOW trigger stwich Module

Review of XY-GMOS 10A MOSFET Motor driver and HIGH LOWtrigger stwich Module

This can be used as 10A High or Low trigger switch works with 4V to 60V. Or you can control Speed of DC motor with 10A power using PWM.

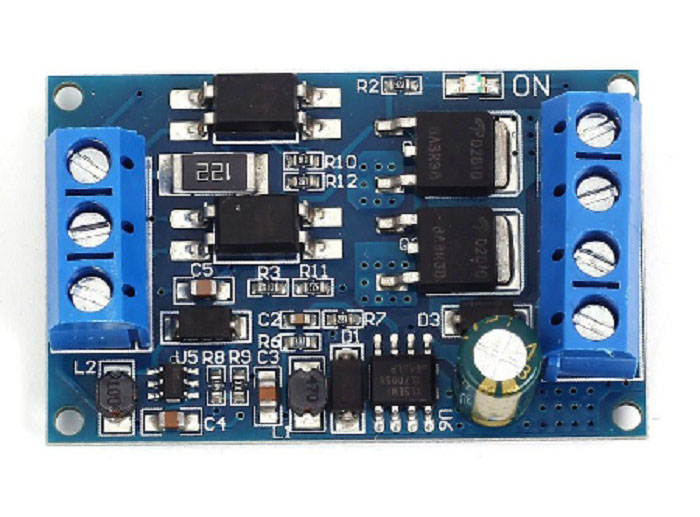

XY-GMOS 10A MOSFET module

XY-GMOS MOSFET Driver
Click on image to enlarge

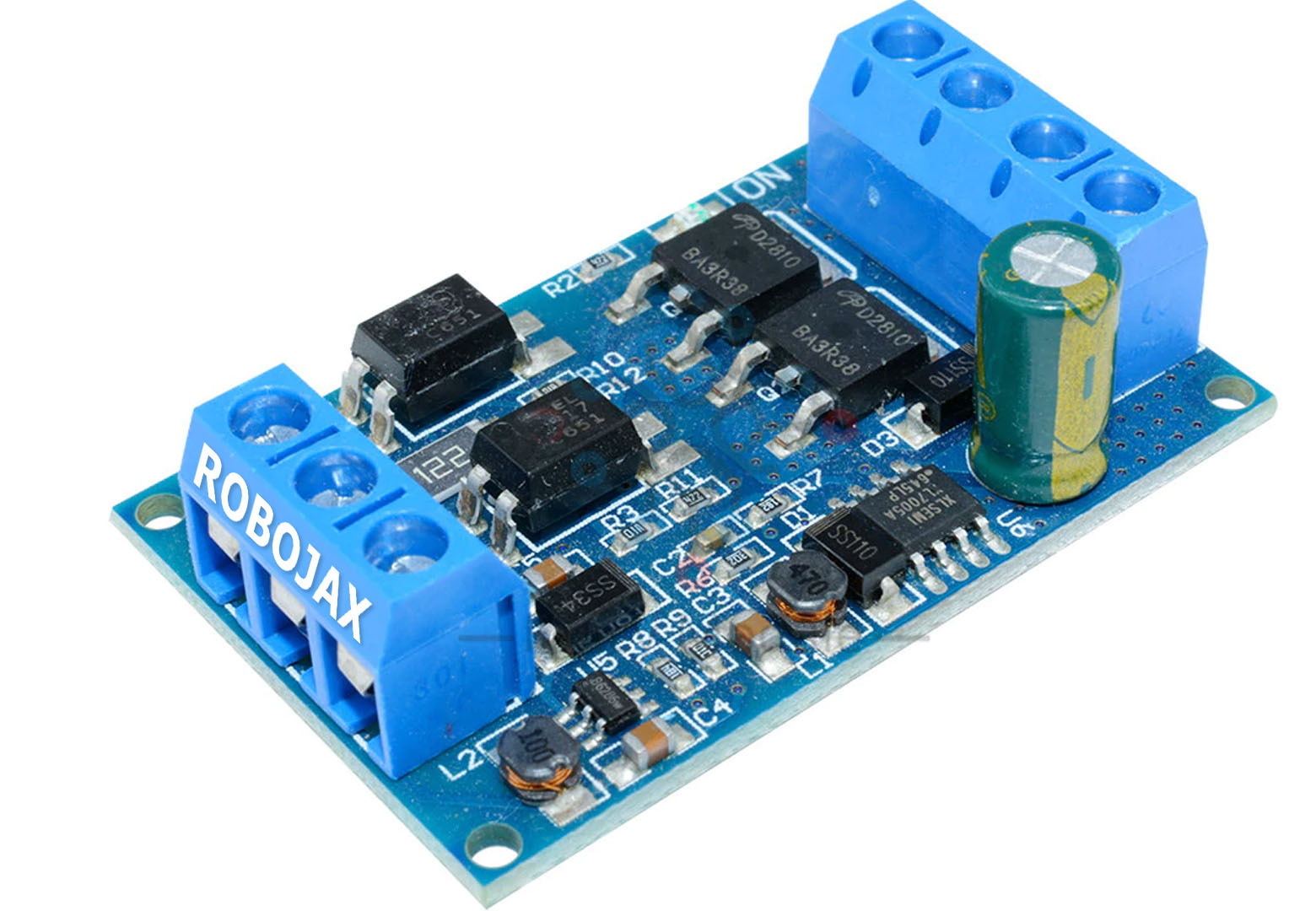

XY-GMOS 10A MOSFET Module 1

XY-GMOS MOSFET Driver
Click on image to enlarge

Chapters in this video

Components used in XY-GMOS. See Video for details

1-A0D2801 80V N-Channel MOSFET Datasheet (pdf)
2-Datasheet (pdf)
3-XL7005 Buck DC to DC Converter Datasheet (pdf) 4-MT3608 2A Step Up Converter Datasheet (pdf)
5-SS110 Schottky Rectifier Diode Datasheet (pdf)
6-SS34 Schottky Barrier Rectifier Datasheet (pdf)
7-EL817 Optocoupler Datasheet (pdf)

Ohter Resources


 /*
 * This Arduin Contorl Speed DC motor and START/STOP is using push button
 * using XY-GMOS Mosfet Speed Switch Module
 *
 * Watch Video instrution for this code:https://youtu.be/El5Dd51HBG8
 *
 * Full explanation of this code and wiring diagram is available at
 * my Arduino Course at Udemy.com here: http://robojax.com/L/?id=62

 * Written by Ahmad Shamshiri on May 31, 2020 at 17:49 in Ajax, Ontario, Canada
 * in Ajax, Ontario, Canada. www.robojax.com
 *

 * Get this code and other Arduino codes from Robojax.com
Learn Arduino step by step in structured course with all material, wiring diagram and library
all in once place. Purchase My course on Udemy.com http://robojax.com/L/?id=62

If you found this tutorial helpful, please support me so I can continue creating
content like this. You can support me on Patreon http://robojax.com/L/?id=63

or make donation using PayPal http://robojax.com/L/?id=64

 *  * This code is "AS IS" without warranty or liability. Free to be used as long as you keep this note intact.*
 * This code has been download from Robojax.com
