Review of XL6012 5V-46V 5A Boost converter Module

This module is based on XLSEMI XL6012 5A boost conerter that outputs from 5V to 46V.

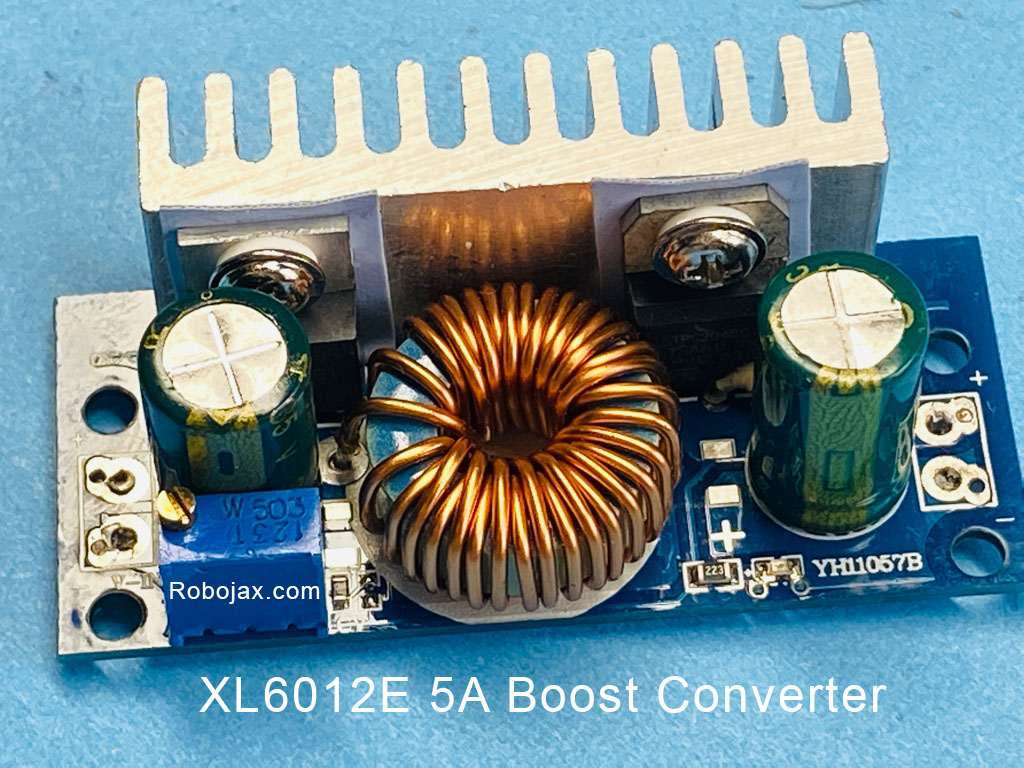

XL6012 full module

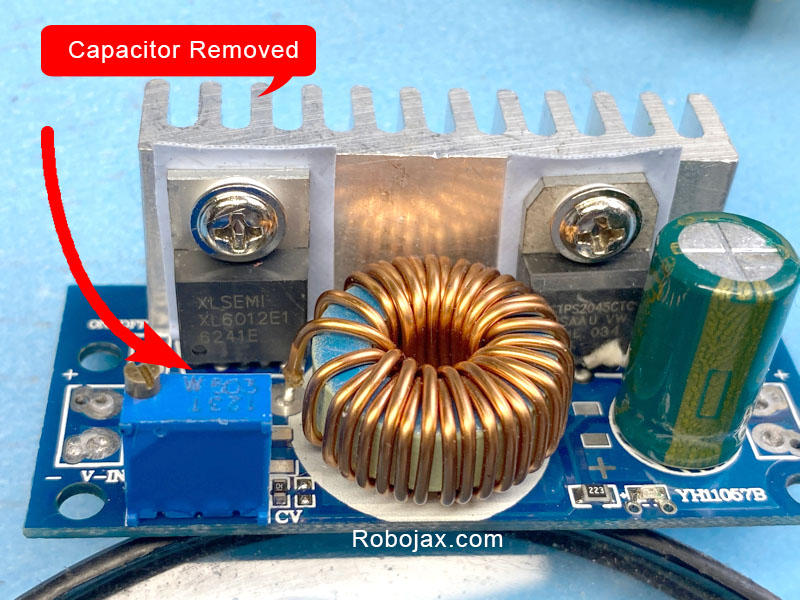

XL6012 Module Capacitor removed

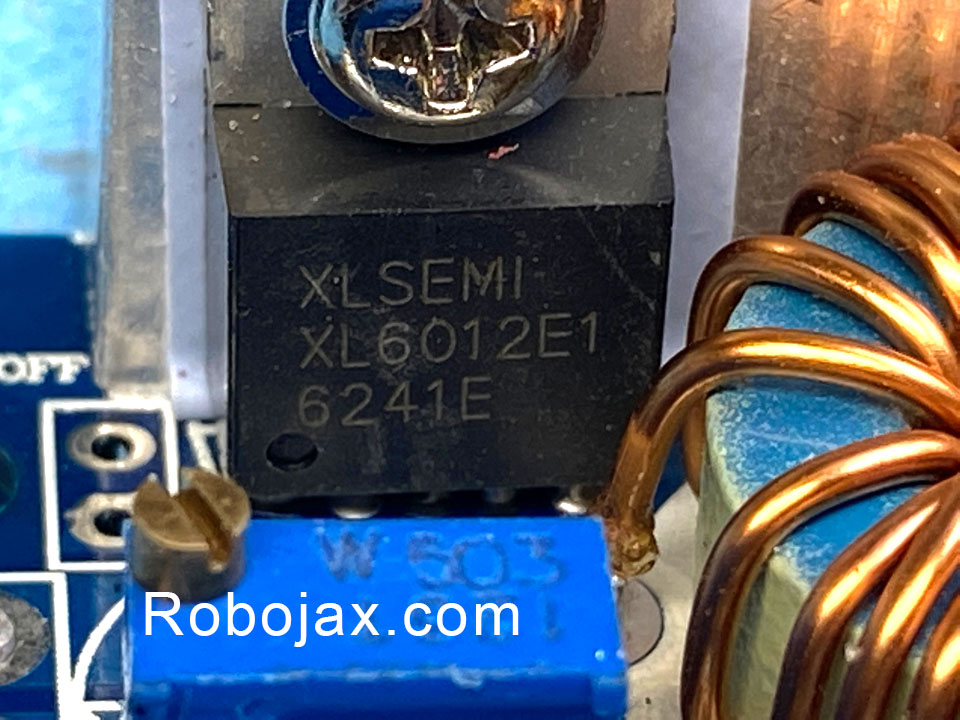

Closeup view of XL6012 on the module

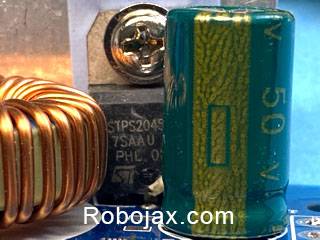

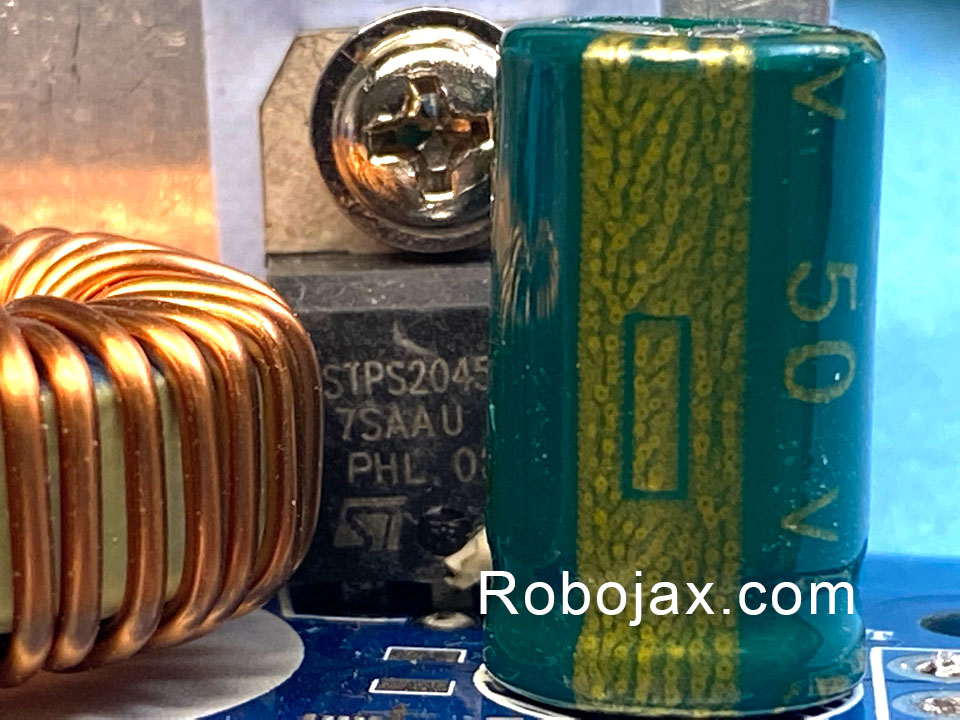

STPS2045C Power Schottky rectifier diode Used in this module

Tests done in this video

• 00:35 Hardware reviewed
• 02:31 Voltage regulation is tested
• 05:30 Input voltage of 30V, boosted to 36V
• 07:42 Input voltage of 24V boosted to 36V
• 08:40 Input voltage of 15V, convert to 24V
• 09:54 Input voltage of 12V, convert to 24V and 15V
• 10:40 Input voltage of 9V, convert to 24V , 15V and 12V
• 12:500 Input voltage of 5V, convert to 15V, 12V and 9V

• XLSEMI XL6012 Datasheet (pdf)
• Power Schottky rectifier diode STPS2045 Datasheet (pdf)
