ow to use XH-M603 Battery Protection Controller Module
VIDEO
How to use XH-M603 Battery Protection Controller Module
In this video we learn about the module, components, wiring, how to set it, how to
charger the battery and how to reset it to factory default of XH-M603 which is sold also as HW-632.
AliExpress.com Product - XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display NEW
Chapters of this video tutorial
00:26 Introduction
01:24 XH-M603 Explained
05:58 Settings of the module
09:41 Setting factory defaults
10:39 Demonstration of charging a battery
15:07 Calculating Charging Time
Specifications of this XH-M603
Item Type: Charging Control Module
Input Voltage: DC 10-30V
Control Current: 20A(Max) Depends rating of relay
Output Type: Direct Output
Voltage reading Accuracy: ± 0.1V
Size: 55x82mm/2.1x3.2in

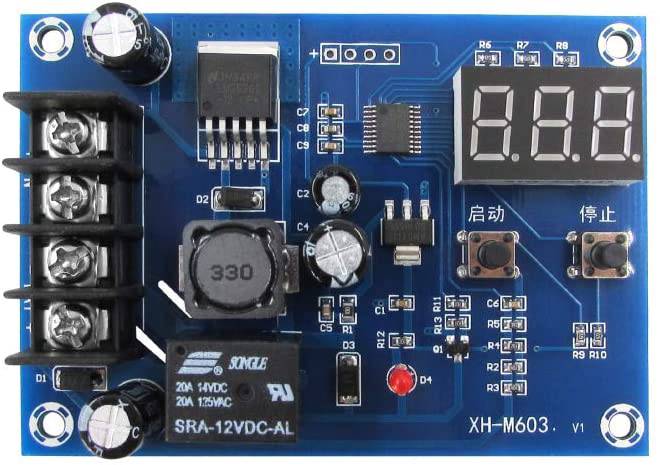

XH-M603 Charger Controller: Main module
Click on image to enlarge
AliExpress.com Product - XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display NEW
XH-M603 Charger Controller: Relay and Charger wiring
Click on image to enlarge
XH-M603 Charger Controller: Battery Start and Stop charge voltage
Click on image to enlarge

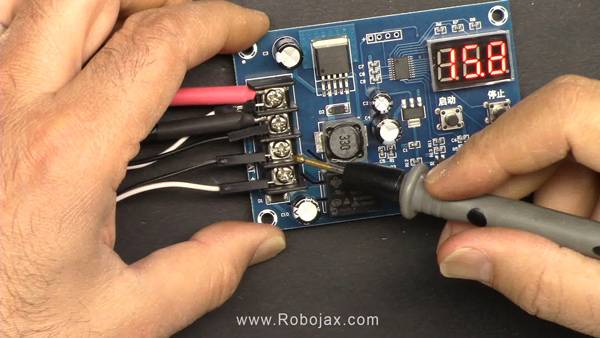

XH-M603 Charger Controller: Components explained
Click on image to enlarge

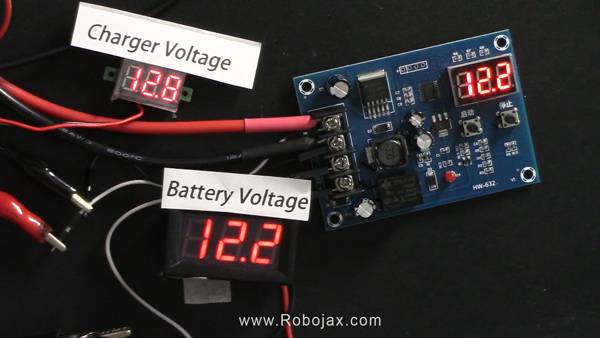

XH-M603 Charger Controller: Charger and battery voltage shown
Click on image to enlarge

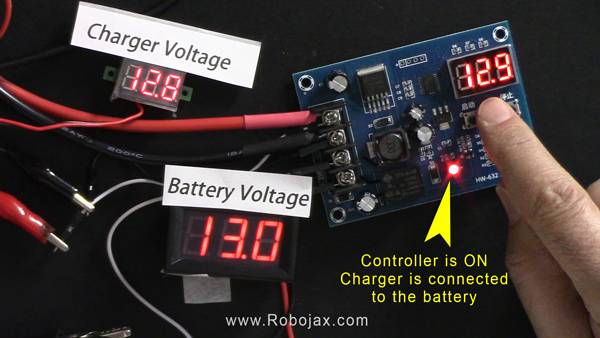

XH-M603 Charger Controller: Charge LED is ON
Click on image to enlarge
