Using Winson WCS Current Sensors with LCD1602 LCD2004 I2C Arduino
Using Winson WCS Current Sensors with LCD1602 LCD2004 I2C Arduino
This tutorial by Robojax explains how to use Winson WCS Current sensor to measure Current and dispaly it on LCD1602 or LCD2004 with I2C module. This code used Robojax WCS Arduno Library.
Topic timing in the video
- 00:32 Introduction to WCS and Zero Current
- 02:58 Wiring Explained
- 07:19 Arduino Code Explained
- 17:32 Demonstration of measureing current using WCS Current sensor
Winson WCS Current Sensor with LCD
Click on image to enlarge

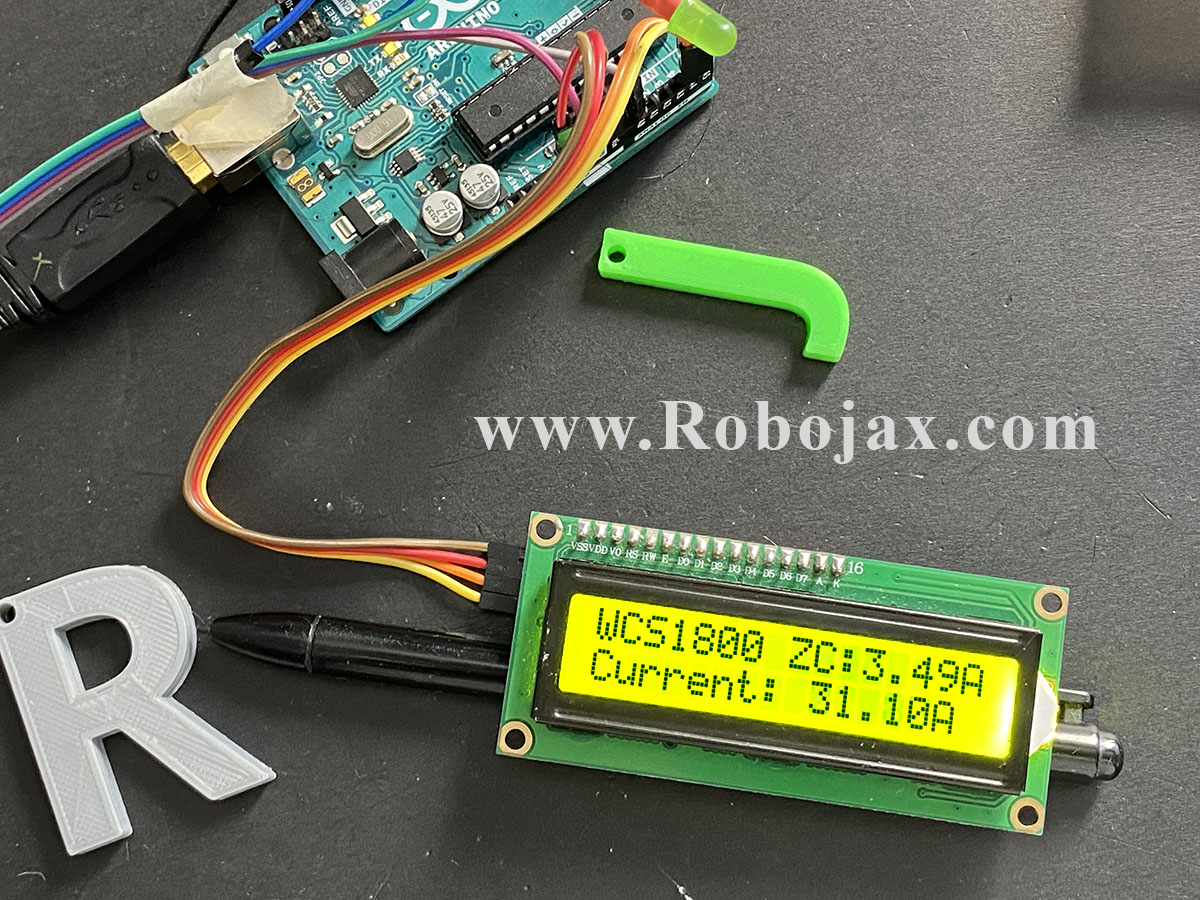

Winson WCS Current Sensor with LCD: Passing wire from WCS1800
Click on image to enlarge

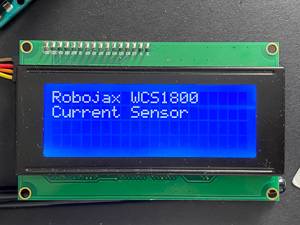

Winson WCS Current Sensor with LCD2004 Initial Boot screen
Click on image to enlarge

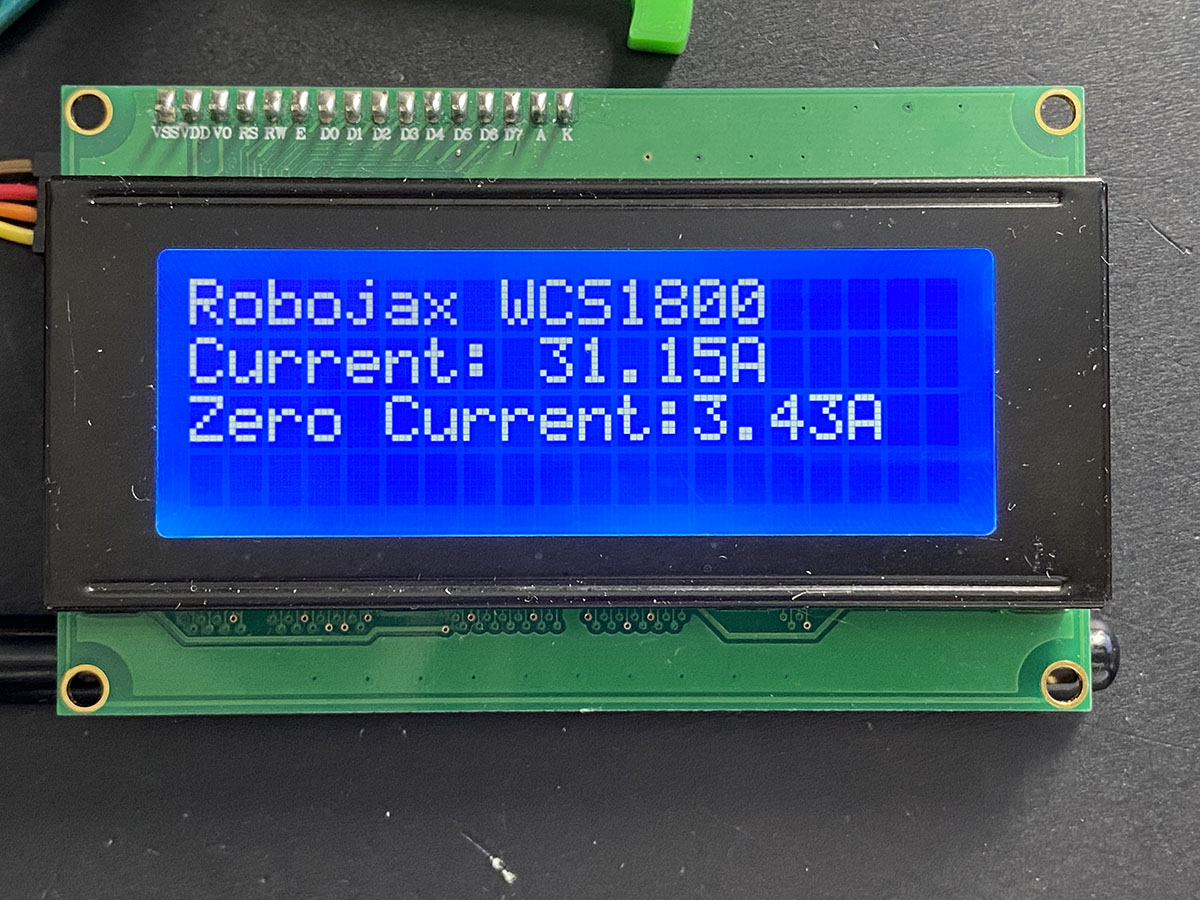

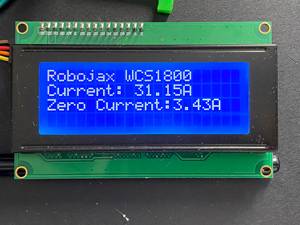

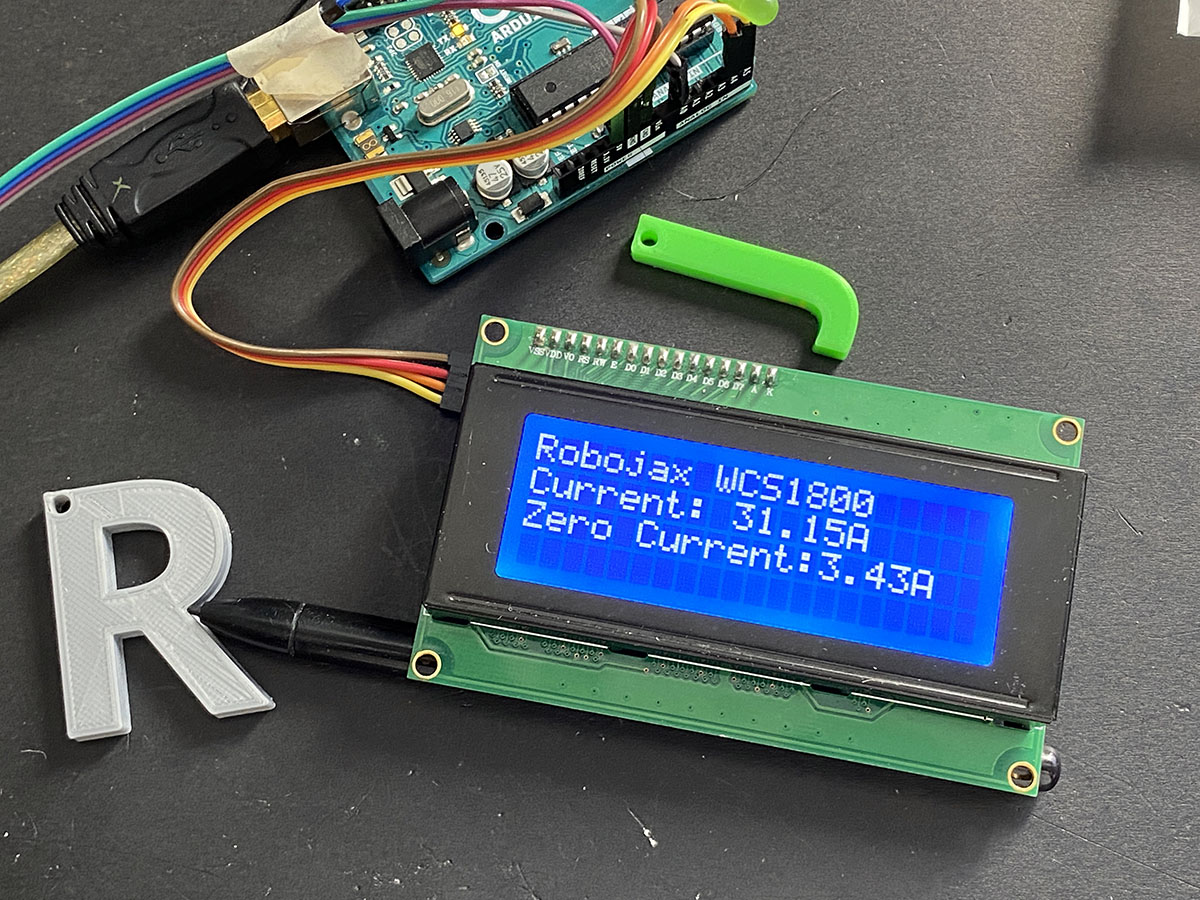

Winson WCS Current Sensor with LCD2004 Showing Current
Click on image to enlarge
Winson WCS Current Sensor with LCD2004 Showing Current 2
Click on image to enlarge

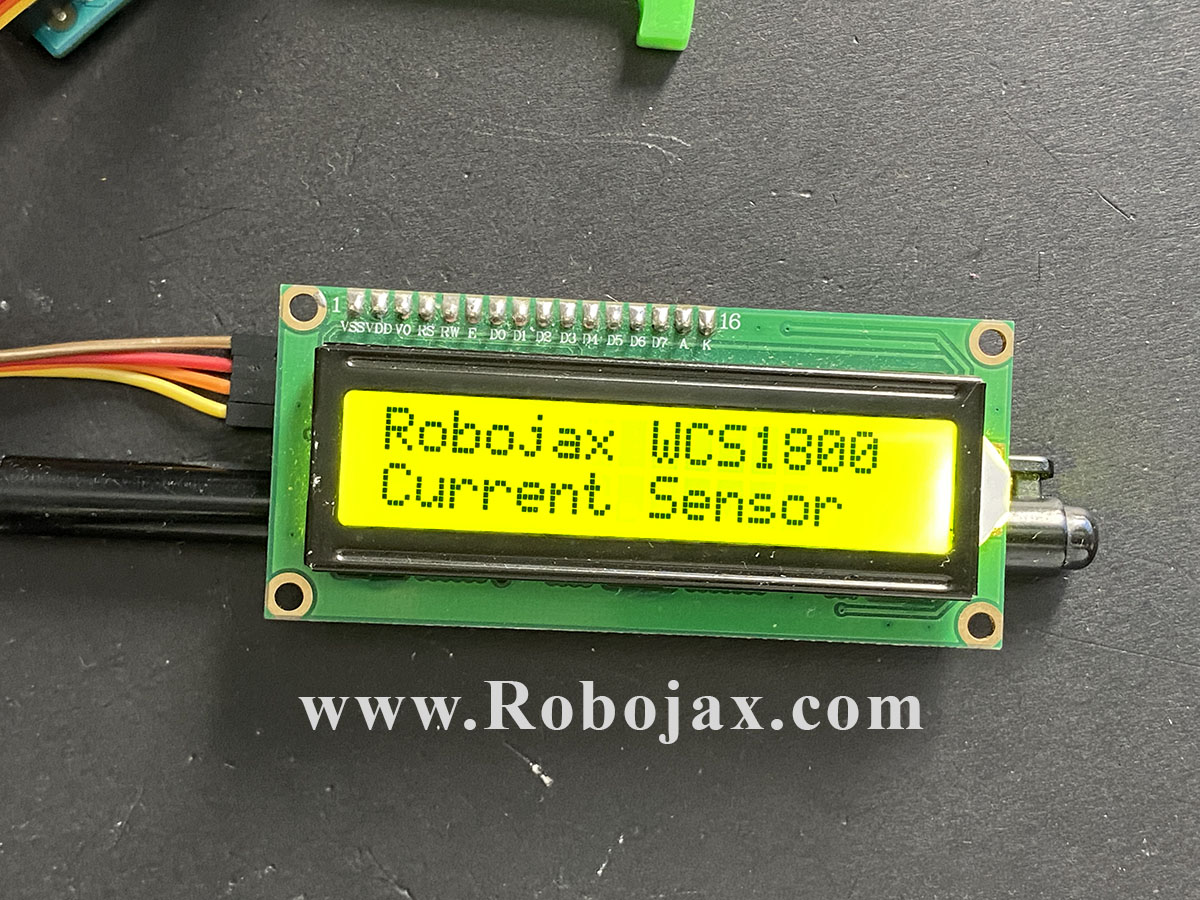

Winson WCS Current Sensor with LCD1602 Initial Boot screen
Click on image to enlarge

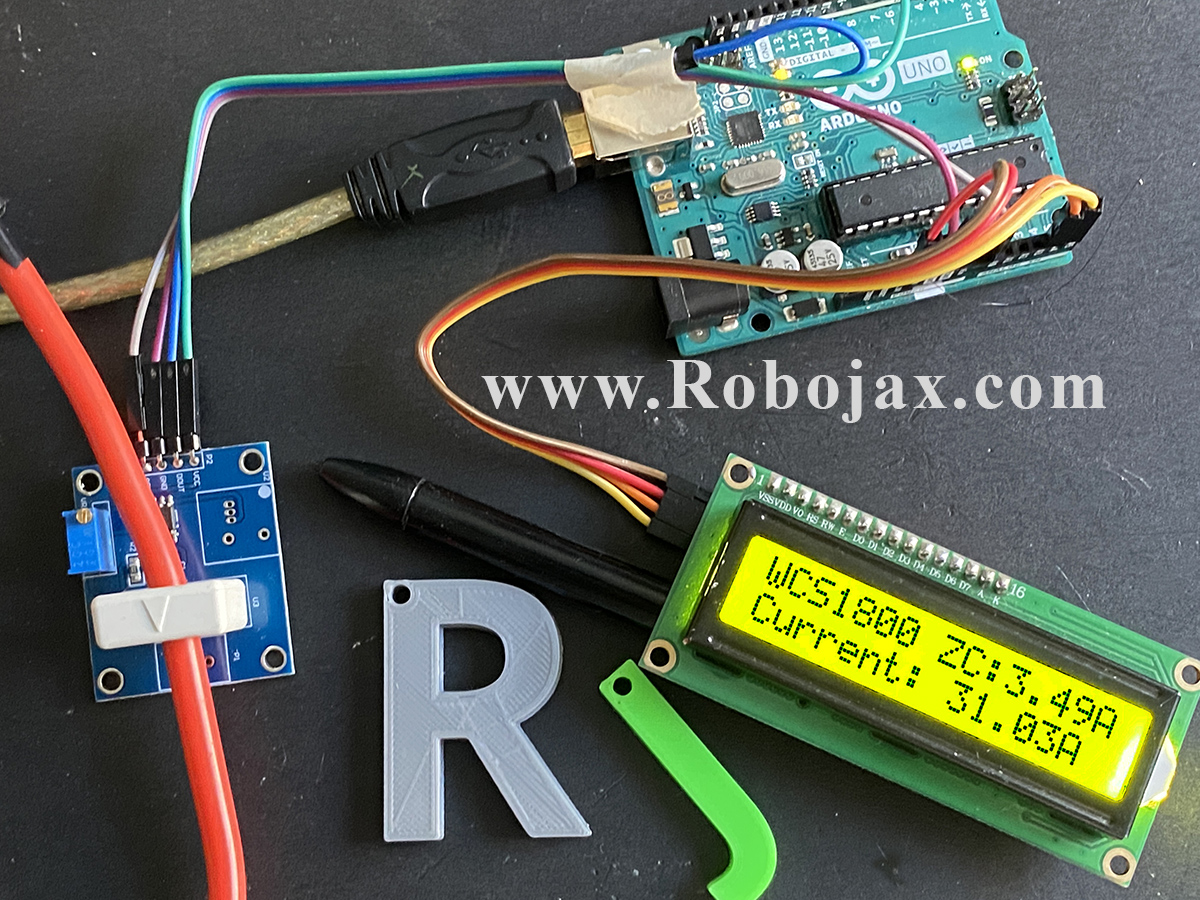

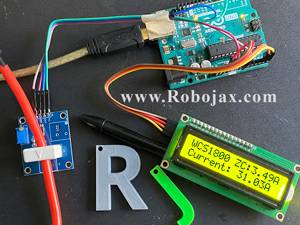

Winson WCS Current Sensor with LCD1602 connected to Arduino UNO
Click on image to enlarge

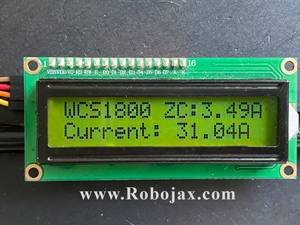

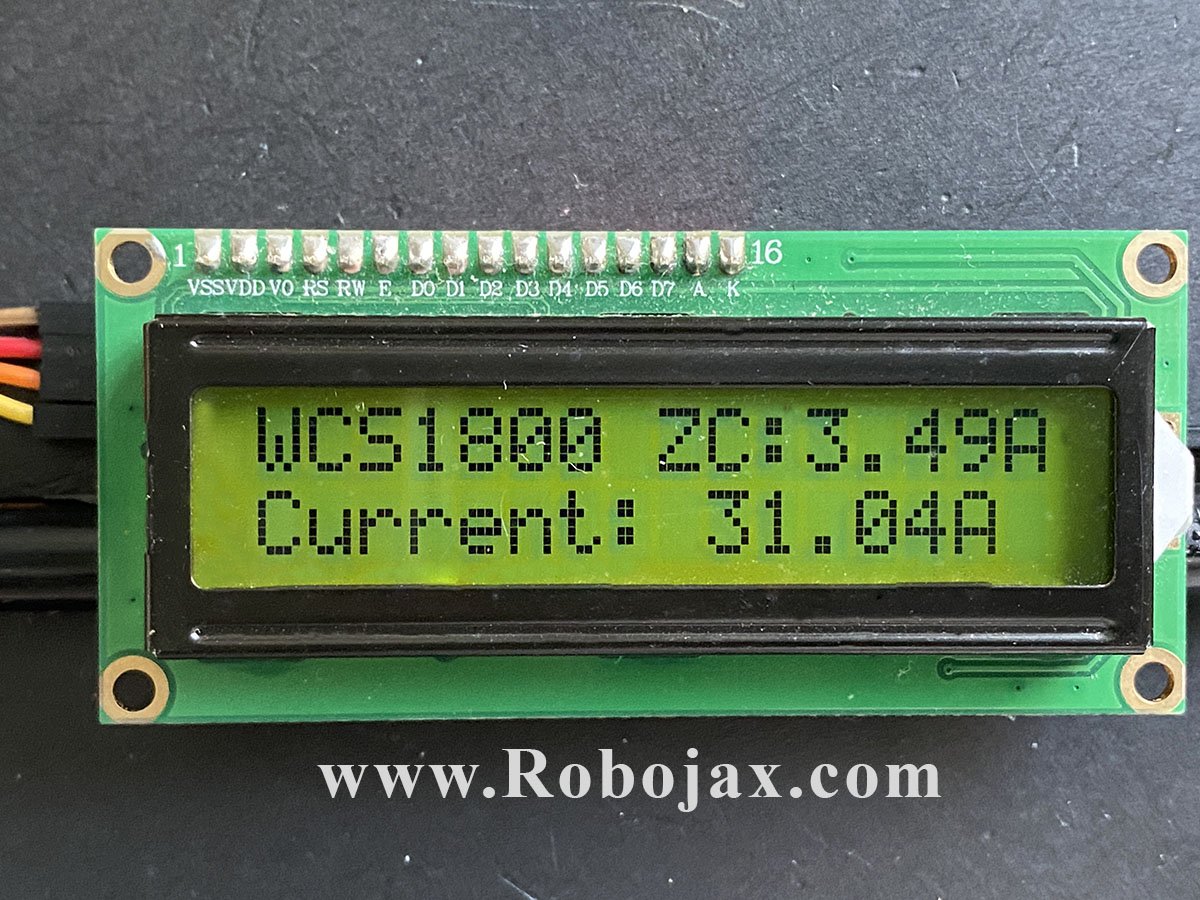

Winson WCS Current Sensor with LCD1602 Showing Current with Zero Current
Click on image to enlarge
Resources for this module
- Download Robojax WCS Library
- Introduction to Winson WCS Current Sensor and Basic Code
- Windos Semicudoctor WCS Web page
- Robojax Crash Course on Arduino: Learn Arduino in 30 Minutes (code and video)
- Robojax Arduino Course on Udemy
- Get Early Access to my videos via Patreon
Arduino code for Winson WCS Current Sensor with LCD
/*
* Read the current Winson WCS Current sensor and display it on LCD1602 or LCD2004 with I2C
* This is Arduino code based on Robojax WCS library
* for Winson WSC Current Sensor to measure current
get the Robojax WCS Arduino library: http://robojax.com/L/?id=230
* Watch video instructions for this code with LCD : https://youtu.be/-pg7jbkaB6A
*
* Related Vidsos:
* Introduction to Winson WCS Sensors: https://youtu.be/z-s8UvCWGxY
* Using Relay to disconnect load at certain current:
* Using Modules without Arduino to control relay at certain current:
* Measure Current using ESP8266 NodeMCU, D1 Mino over Wifi
* Measure current using ESP32 Bluetooth on mobile devices
*
* Written on July 26, 2020 by Ahmad Shamshiri in Ajax, Ontario, Canada
* www. Robojax.com
Model of the sensor to select
//dirct wiring series
0 "WCS38A25",//0
1 "WCS37A50",//1
2 "WCS2801",//2
3 "WCS2702",//3
4 "WCS2705",//4
5 "WCS2810",//5
6 "WCS2720",//6
7 "WCS2750",//7
8 "WCS3740",//8
//through hole sensor
9 "WCS1500",//9
10 "WCS1600",//10
11 "WCS1700",//11
12 "WCS1800",//12
13 "WCS2800",//13
14 "WCS6800",//14
//AC to DC Current sensor
15 "WCS2202",//15
* Get this code and other Arduino codes from Robojax.com
Learn Arduino step by step in structured course with all material, wiring diagram and library
all in once place. Purchase My course on Udemy.com http://robojax.com/L/?id=62
If you found this tutorial helpful, please support me so I can continue creating
content like this. You can support me on Patreon http://robojax.com/L/?id=63
or make donation using PayPal http://robojax.com/L/?id=64
* * This code is "AS IS" without warranty or liability. Free to be used as long as you keep this note intact.*
* This code has been download from Robojax.com
This program is free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation, either version 3 of the License, or
(at your option) any later version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with this program. If not, see <https://www.gnu.org/licenses/>.
*/
#include <Wire.h>
#include <Robojax_WCS.h>
#define MODEL 12 //see list above
#define SENSOR_PIN A0 //pin for reading sensor
#define SENSOR_VCC_PIN 8 //pin for powring up the sensor
//LCD settings
const uint8_t I2C_ADDRESS =0x3f;//watch video for details
const uint8_t LCD_CHAR= 16;
const uint8_t LCD_ROW = 2;
char *TITLE_CURRENT ="Current: ";
char *TITLE_ZERO_CURRENT ="Zero Current: ";
#define SHOW_ZERO_CURRENT true
//const int LCD_VCC_PIN =9;//define a VCC pin vor LCD see video for details
#define ZERO_CURRENT_WAIT_TIME 5000 //wait for 5 seconds to allow zero current measurement
#define CORRECTION_VLALUE 164 //mA
#define MEASUREMENT_ITERATION 300
#define VOLTAGE_REFERENCE 5000.0 //5000mv is for 5V
#define BIT_RESOLUTION 10 //Due or MKR, 12 bits
#define DEBUG_ONCE true
// creating object from Robojax_WCS Current sensor
Robojax_WCS sensor(I2C_ADDRESS, LCD_CHAR, LCD_ROW,
MODEL, SENSOR_PIN, SENSOR_VCC_PIN,
ZERO_CURRENT_WAIT_TIME, SHOW_ZERO_CURRENT,
CORRECTION_VLALUE, MEASUREMENT_ITERATION, VOLTAGE_REFERENCE,
BIT_RESOLUTION, DEBUG_ONCE, TITLE_CURRENT, TITLE_ZERO_CURRENT
);
// creating object from Robojax_WCS Current sensor
// this is used if you want to use a digital pin to supply 5V to LCD
// and leave the 5V pin free for other purpose
/// uncomment the 7 lines bellow by removing the // from the begining of lines
//Robojax_WCS sensor(I2C_ADDRESS, LCD_CHAR, LCD_ROW,
// MODEL, SENSOR_PIN, SENSOR_VCC_PIN,
// ZERO_CURRENT_WAIT_TIME, SHOW_ZERO_CURRENT,
// CORRECTION_VLALUE, MEASUREMENT_ITERATION, VOLTAGE_REFERENCE,
// BIT_RESOLUTION, DEBUG_ONCE, TITLE_CURRENT, TITLE_ZERO_CURRENT,
// LCD_VCC_PIN
// );
void setup()
{
Serial.begin(9600);
Serial.println("Robojax WCS Library");
sensor.begin();
Serial.print("Sensor: "); Serial.println(sensor.getModel());
Serial.print("Library Version:");Serial.println(sensor.version());
//sensor.printModels();//prints all supported WCS models
}
void loop()
{
//Robojax.com WCS Arduino Library
sensor.readCurrent();
delay(1000);
//sensor.printDebug();
//sensor.printCurrent();//prints the current on serial monitor
}
