Battery Protection SIN9020S battery OVP OCP OPV Ultimate protection with relay
The ultimate battery protection module. SIN9020S has color display that can measure 20A current and voltage up to 90V. a 40A relay
is used to disconnect the battery when OverCurrent protection, OverVoltage protection, OverPower protection, underVoltage protection
overTime protection and OverCapacity protection is triggered. Please watch the video for details and how to set them.
Purchase this from AliExpress
AliExpress.com Product - DC10-90V 20A color liquid crystal display bidirectional measurement voltage current power voltmeter ammeter Relay switch
Specifications
Self-powered voltage measurement range : 10V-90V
External power measurement range 0~90V
Current input/output current measurement range0~20A
Display resolution:
Voltage 0.01V
Current 0.01A
Capacity 0.01AH
Time 1min
Accuracy
Voltage 1% + 2 words
Current 2% + 5 words
Measurement rate 5 times / sec
OVP (over voltage protection) 0.01V ~ 90V
OPP (over power protection) 0.01W ~ 9.99KW
LVP (under voltage protection) 0.01V ~ 90V
OCP (overcurrent protection) 0.1 ~ 100A
OAH (overcharge power protection) 0.01AH ~ 999AH
OFT (timeout protection) 0.01 hours to 99.9 hours
Dimensions (length × width × height) 79×43×52(mm)
Mounting hole opening (mm) 76.5*39.2(mm)
Chapters of this video
00:57 Introduction
05:59 Hardware explained
07:01 Wiring explained
10:00 Settings explained
11:49 OverVoltage Protection
12:56 OverPower Protection
14:33 OverCurrent Protection
15:53 OverTime Protection
18:31 Over Capacity Protection
22:54 UnderVoltage Protection

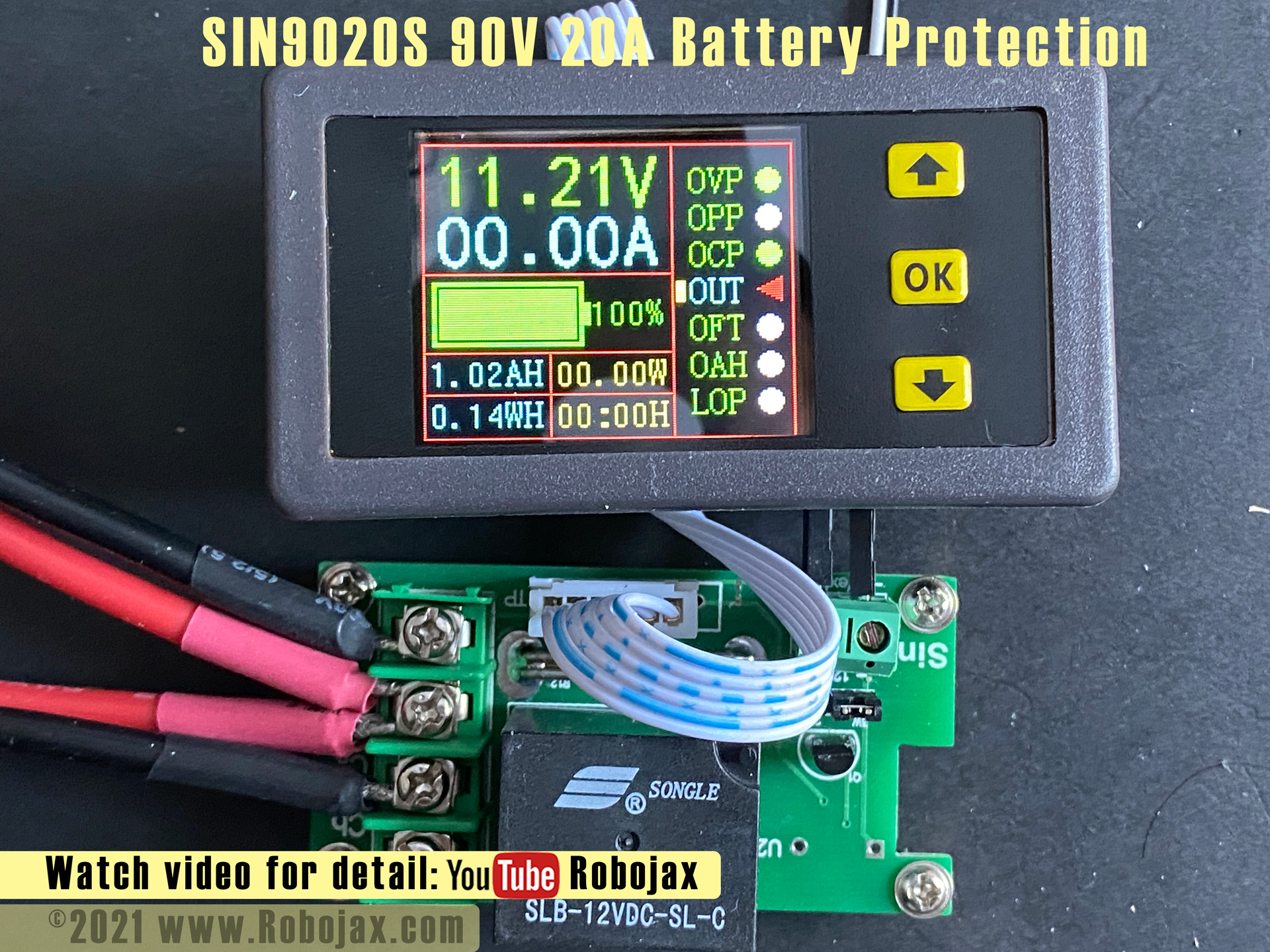

SIN9020S Battery Protection Relay module: Main 1
Click on image to enlarge

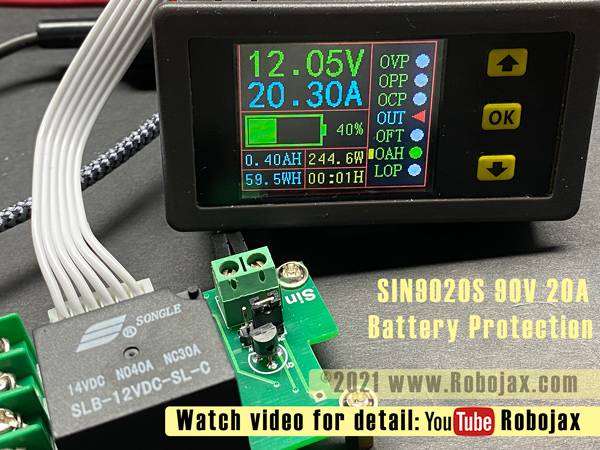

SIN9020S Battery Protection Relay module: Main 2
Click on image to enlarge

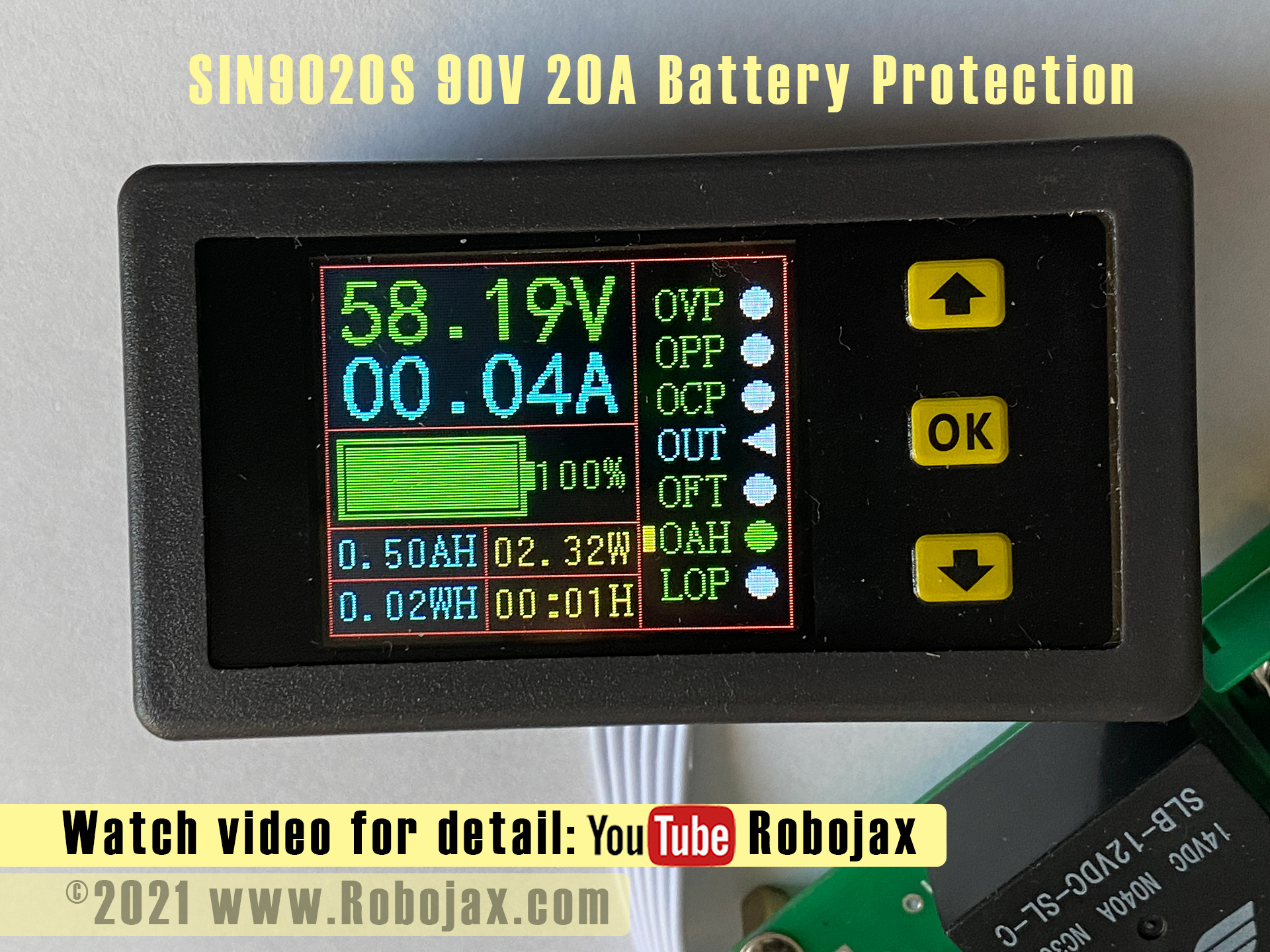

SIN9020S Battery Protection Relay module: Showing 58V input
Click on image to enlarge

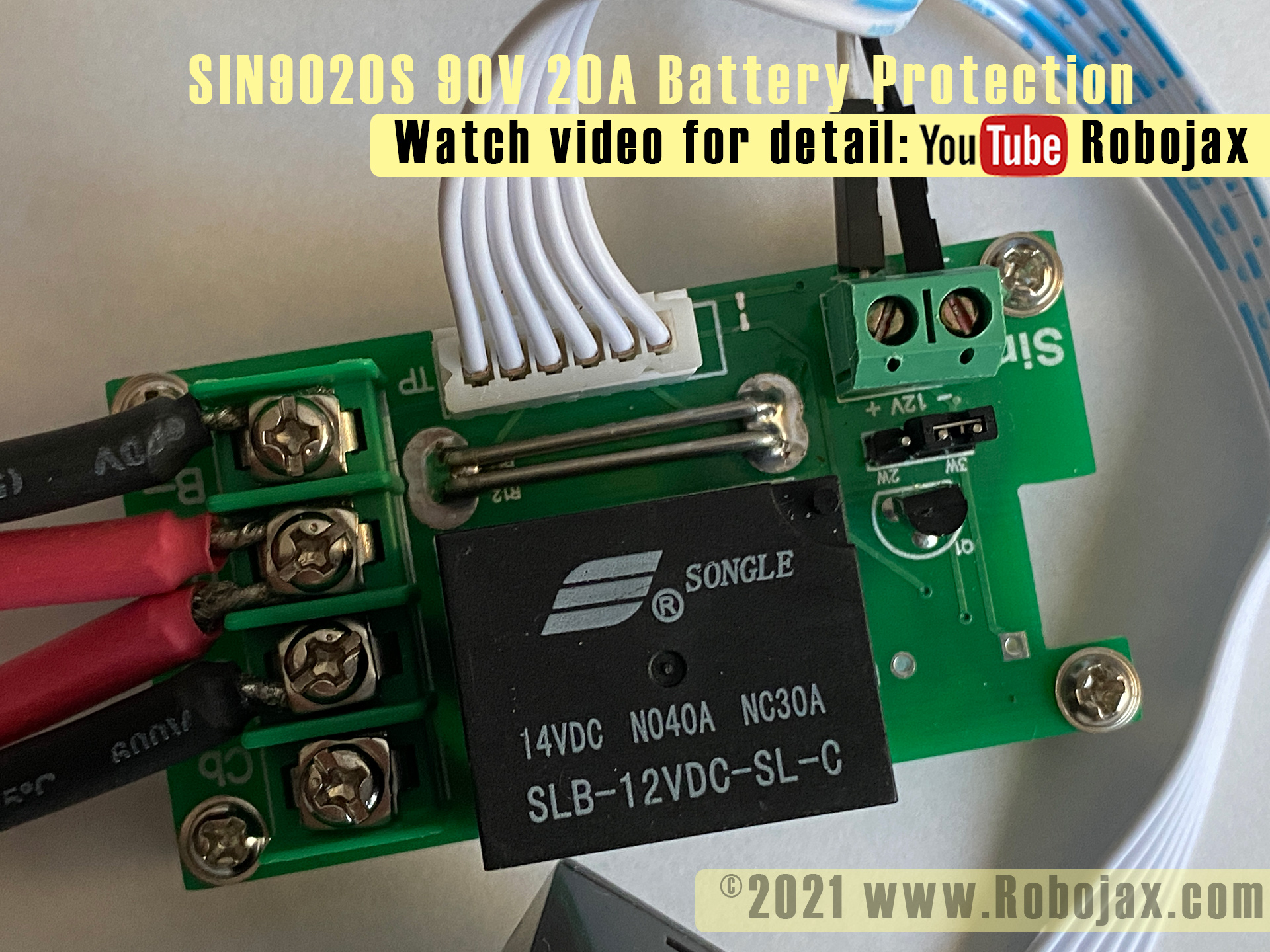

SIN9020S Battery Protection Relay module: Wiring view
Click on image to enlarge

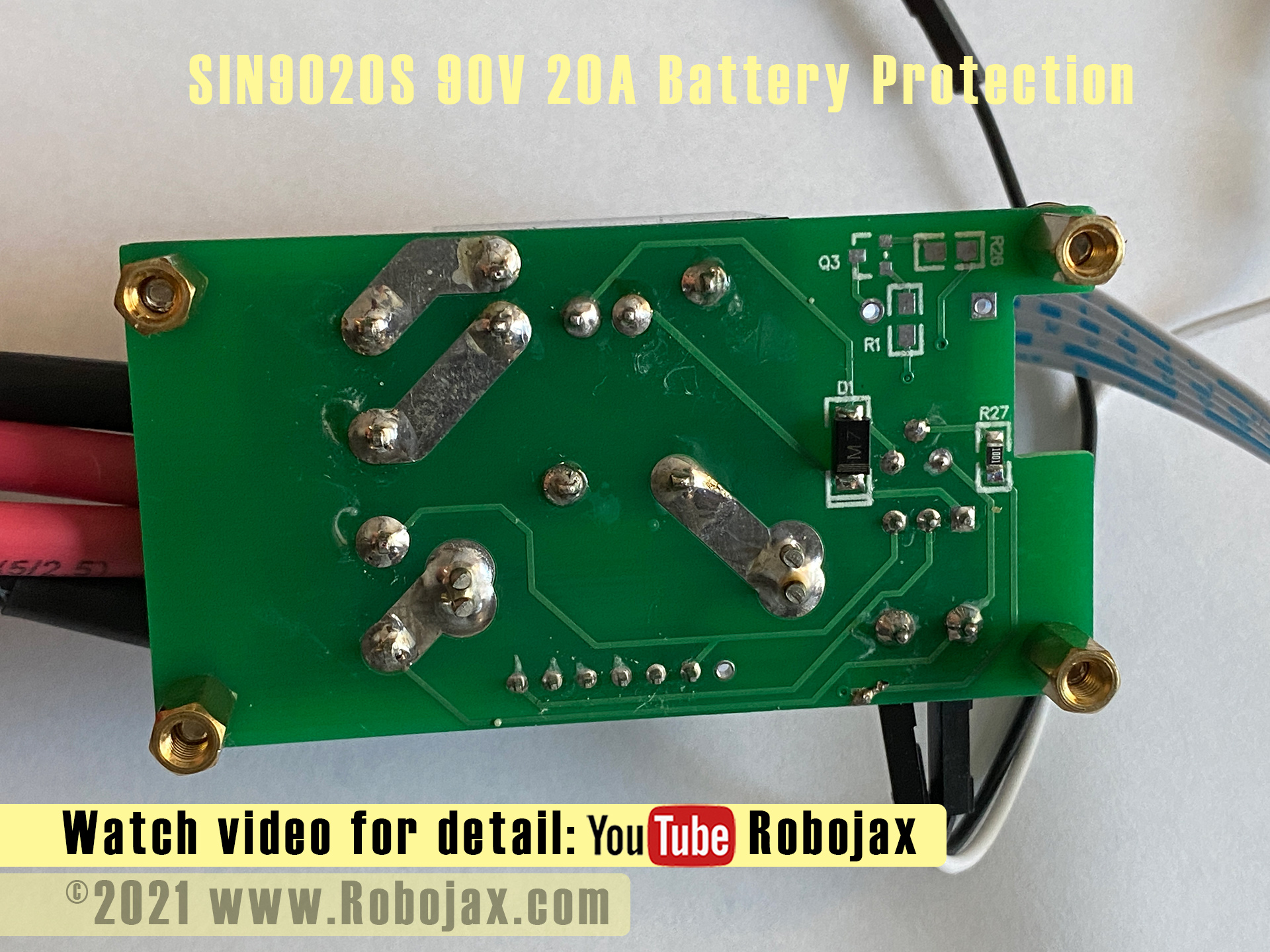

SIN9020S Battery Protection Relay module: Vottom view
Click on image to enlarge

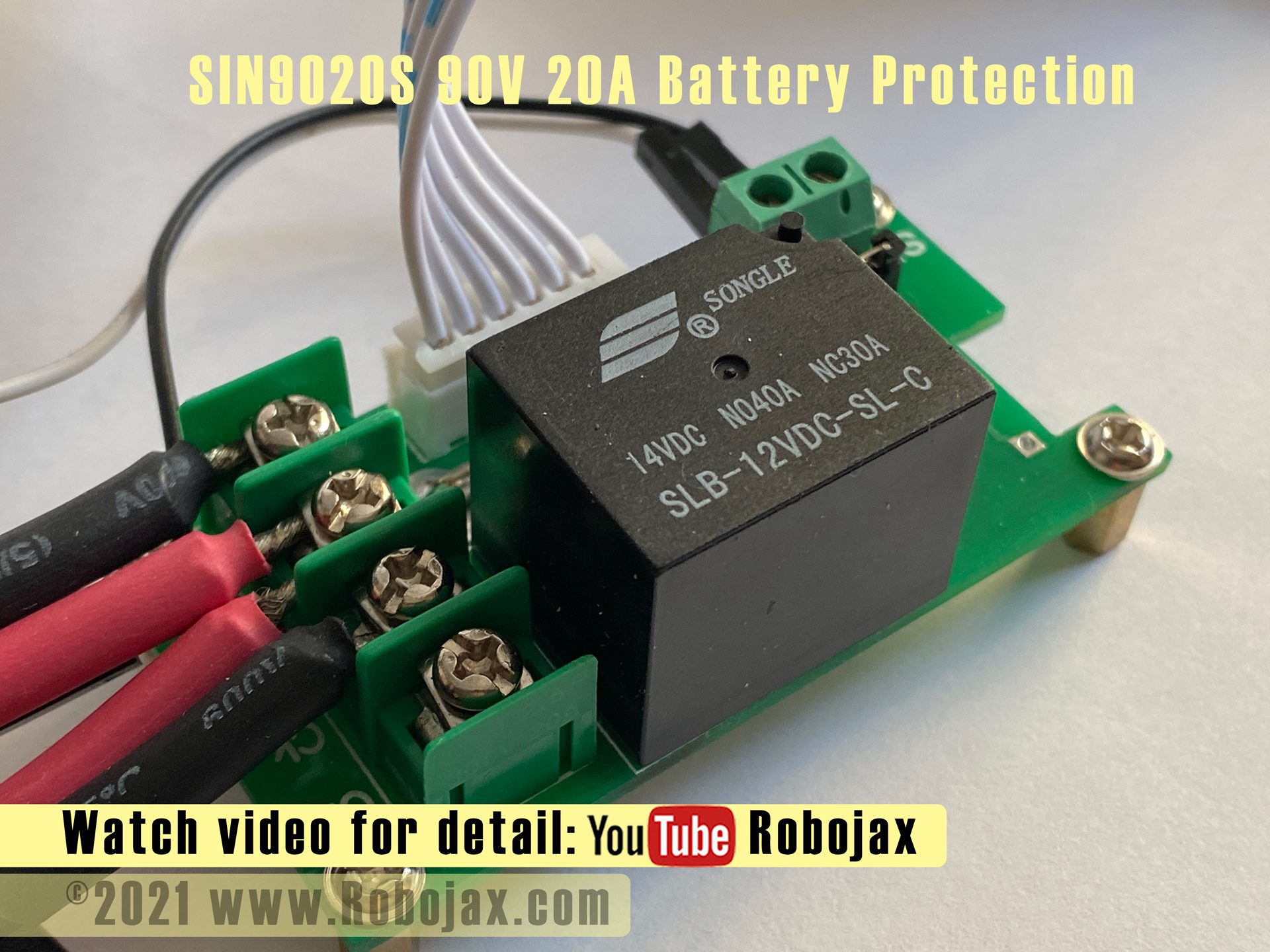

SIN9020S Battery Protection Relay module: Relay side view
Click on image to enlarge

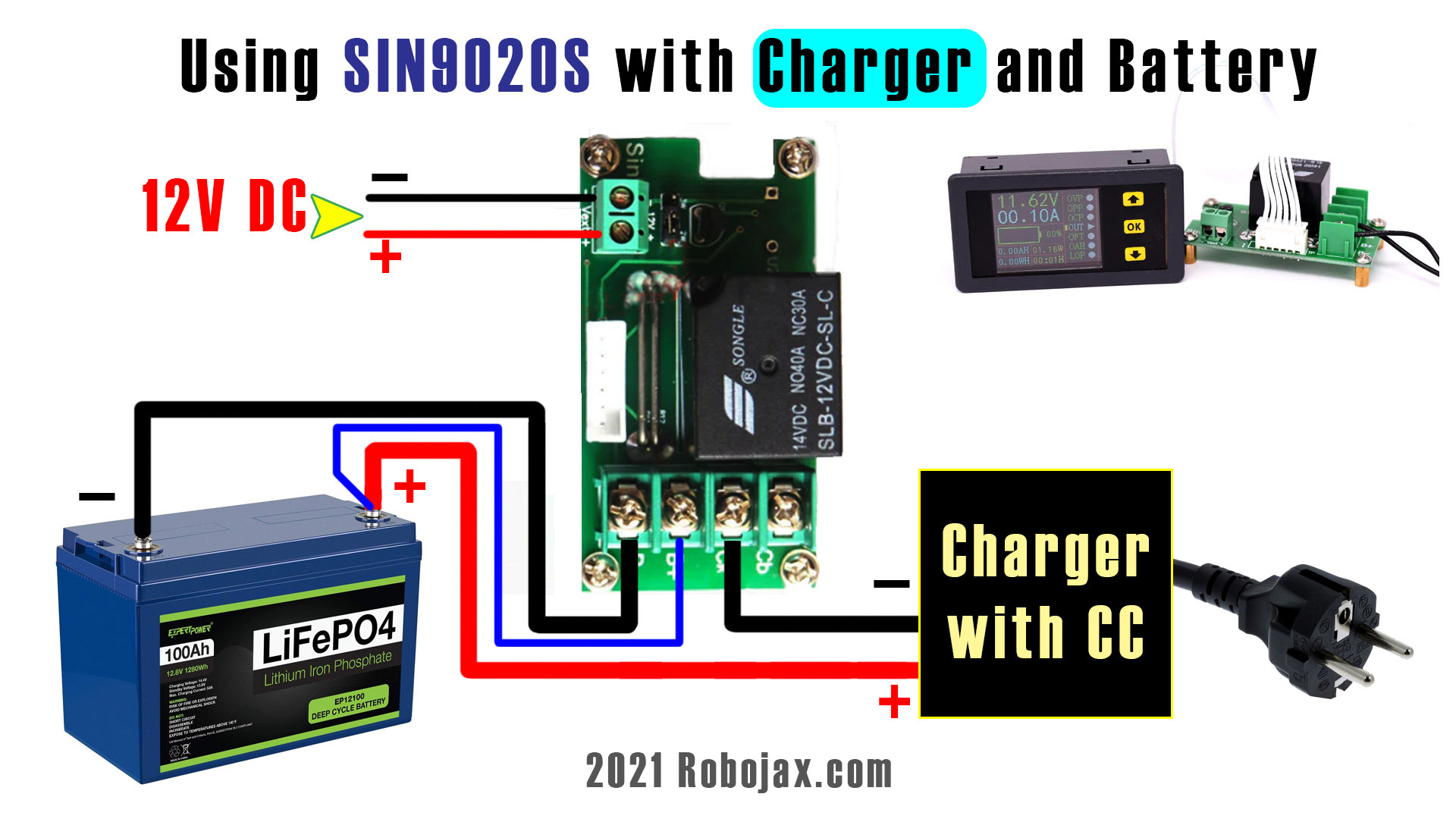

SIN9020S Battery Protection Relay module: Wiring diagram with charger
Click on image to enlarge

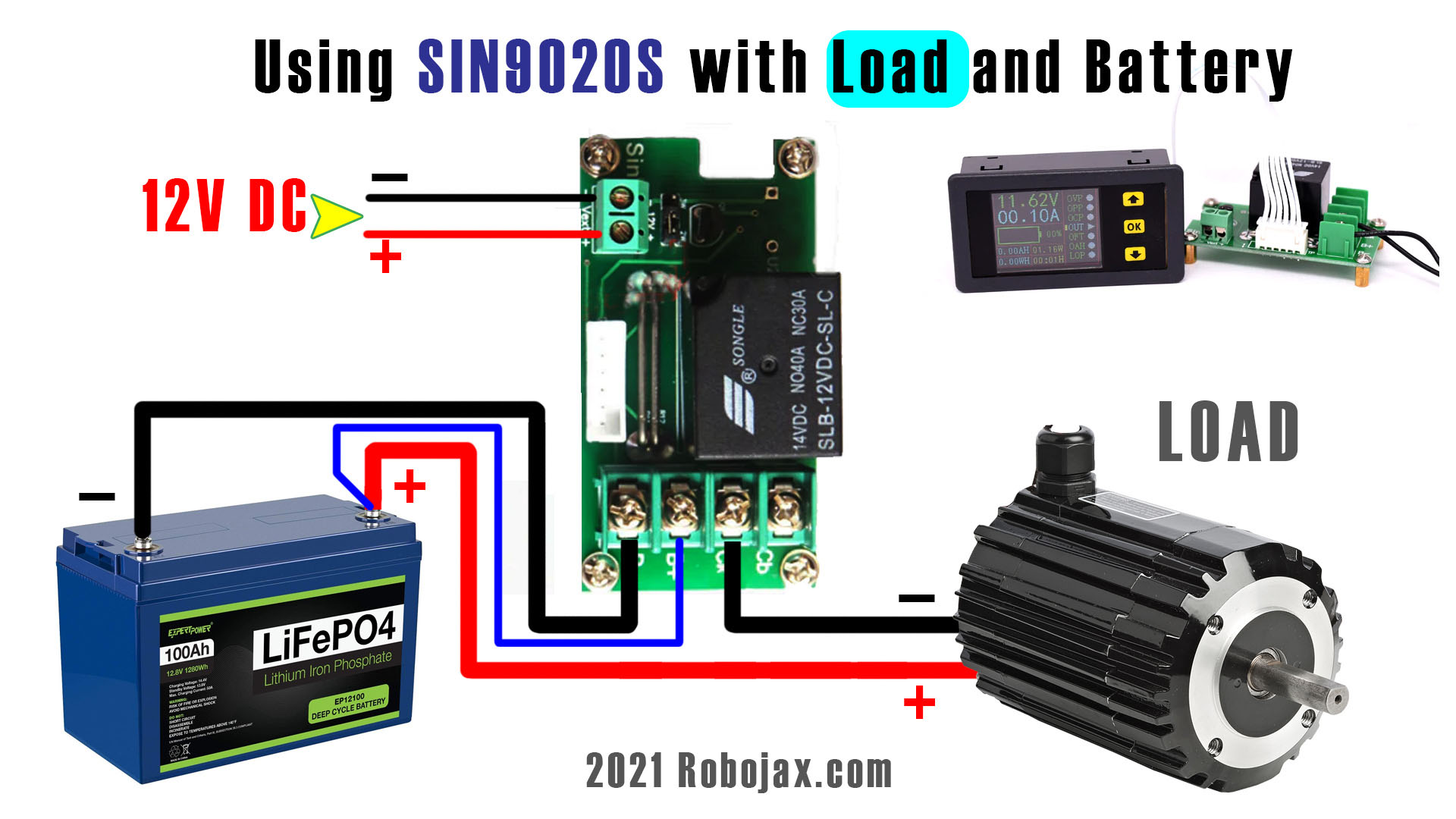

SIN9020S Battery Protection Relay module: Wiring diagram with load
Click on image to enlarge

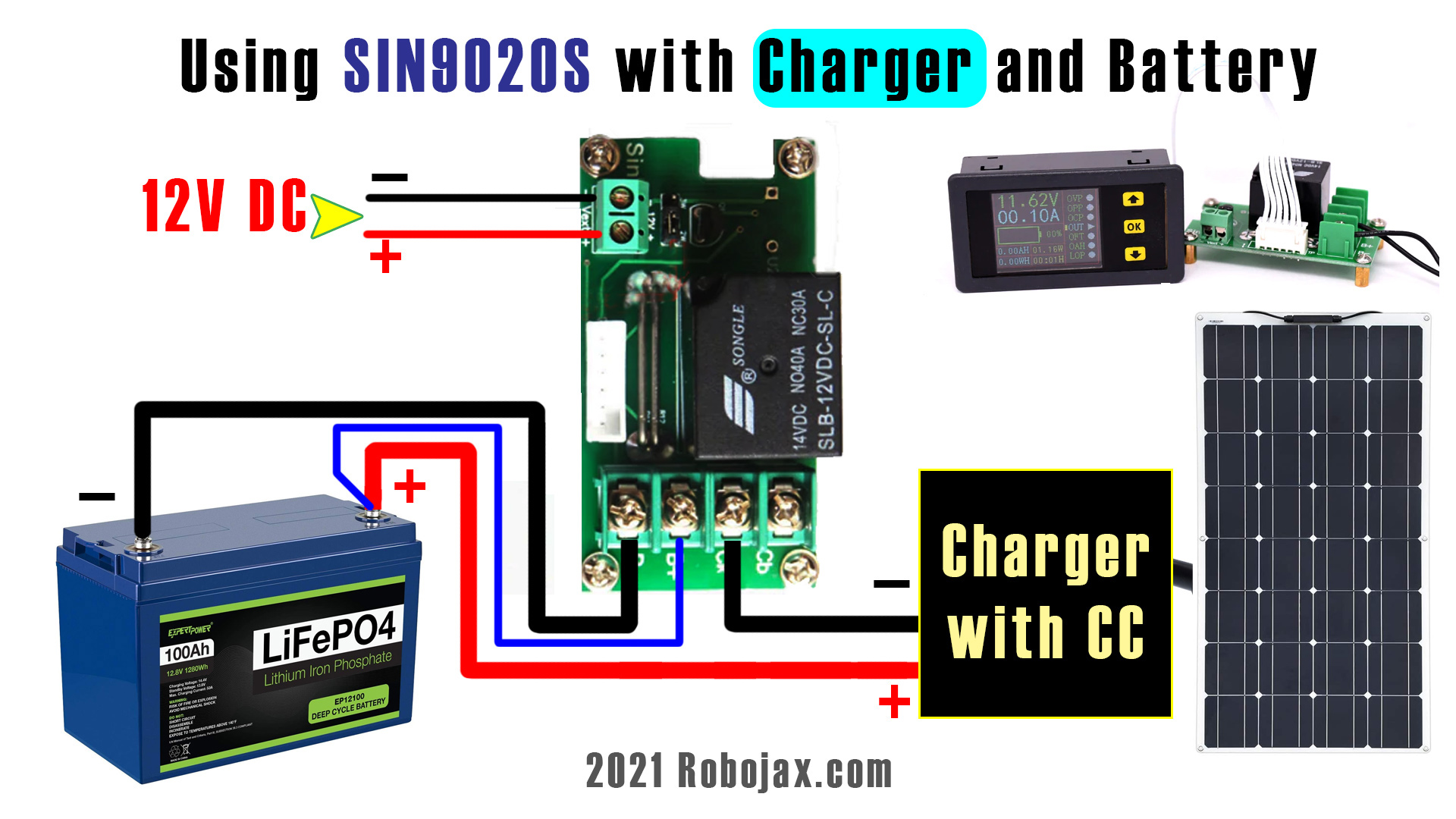

SIN9020S Battery Protection Relay module: Wiring diagram with solar panel
Click on image to enlarge
