Using HT16K33 4 digit seven segment display with ESP32
Using HT16K33 4 digit seven segment display with ESP32
Using this code shown in the video, we build a digital clock using seven segment display wiht HT16K33 module and DS1307 Real time clock
module with Arduino.
Make sure to seee introduction to HT16K33
Libraries needed for this project
1-Prepare your Arduino IDE to work with ESP8166 (watch video)2-HT16K33 Library (and watch video instruction) Both libraries are available for download from links below.
Chapters in this video
- 00:40 Introduction
- 01:19 Wiring explained
- 02:54 Arduino code explained
- 08:14 Demonstration

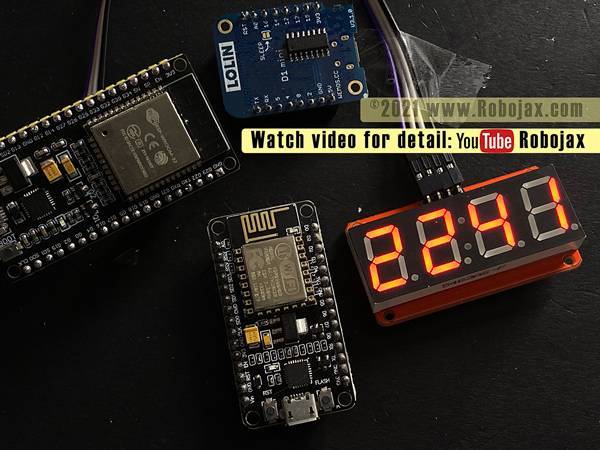

Using HT16K33 with ESP32: main
Click on image to enlarge
Resources for this sketch
- Introduction to ESP32
- Introduction to HT16K33 4 digit seven segment
- HT16K33 Library (from Robojax.com)
- HT16K33 Library (from GitHub)
- HT16K33 Datasheet(pdf)
- Download DS3231 Library zip file (from robojax.com)
- Download DS3231 Library zip file (from GetHub.com)
- DS3231 Datasheet (pdf)
- Adafruit MLX90614 Library (from Robojax)
- Melexis MLX90614 Datasheet (pdf)
- Melexis Website Official Web Site
- Robojax Crash Course on Arduino: Learn Arduino in 30 Minutes (code and video)
- Robojax Arduino Course on Udemy
- Get Early Access to my videos via Patreon
/*
* This is Arduino code for HT16K33 4 digits seven segment display using with ESP32 WiFi Bluetooth module
* This is to show full featues of HT16K33 in one sketch shown in video https://youtu.be/a3WqCAIvTdQ
*
* Original code and library by Rob Tillaart https://github.com/RobTillaart/HT16K33
*
* Written by Ahmad Shamshiri for Robojax Robojax.com
* on Feb 10, 2021 in Ajax, Ontario, Canada
Watch the video instruction for this sketch: https://youtu.be/a3WqCAIvTdQ
If you found this tutorial helpful, please support me so I can continue creating
content like this. You can support me on Patreon http://robojax.com/L/?id=63
or make donation using PayPal http://robojax.com/L/?id=64
*
* Code is available at http://robojax.com/learn/arduino
* This code is "AS IS" without warranty or liability. Free to be used as long as you keep this note intact.*
* This code has been download from Robojax.com
This program is free software: you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation, either version 3 of the License, or
(at your option) any later version.
This program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
GNU General Public License for more details.
You should have received a copy of the GNU General Public License
along with this program. If not, see <https://www.gnu.org/licenses/>.
*/
// AUTHOR: Rob Tillaart
// VERSION: 0.1.0
// PURPOSE: demo
// URL: http://www.adafruit.com/products/1002
// URL: https://github.com/RobTillaart/HT16K33
// connect potmeter or so to A0 and A1 for the VU tests
#include "HT16K33.h"
HT16K33 seg(0x70);
uint32_t start, stop;
uint8_t ar[4];
void setup()
{
Serial.begin(115200);
Serial.println("Robojax EXP8166 with HT16K33 Display");
seg.begin();
Wire.setClock(100000);
seg.displayOn();
seg.setDigits(4);
Serial.println("displayTest()");
seg.displayTest(6);
seg.displayOff();
delay(1000);
seg.displayOn();
seg.displayColon(false);
}
void loop()
{
//video instruction https://youtu.be/a3WqCAIvTdQ
seg.setDigits(1);
seg.displayInt(64);
delay(5000);
seg.setDigits(4);
seg.displayInt(64);
delay(5000);
seg.setDigits(1);
seg.displayInt(-74);
delay(5000);
seg.displayFloat(33.5, 1);
delay(3000);
seg.displayFloat(3.5, 3);
delay(3000);
seg.displayFloat(-12.6, 3);
delay(3000);
seg.displayFloat(333.6, 1);
delay(3000);
seg.displayOff();
delay(1000);
seg.displayOn();
seg.setDigits(2);
seg.displayFloat(-1.6, 1);
delay(3000);
seg.displayTime(18, 25);
seg.displayColon(1);
delay(3000);
seg.displayColon(0);
seg.setDigits(1);
for (int16_t counter = -300; counter < 300; counter += 7)
{
seg.displayInt(counter);
delay(100);
}
seg.displayHex(0xABCF);
delay(3000);
for (int i = 15; i >= 0; i--)
{
seg.displayHex(0xABC0 + i);
seg.brightness(i);
delay(500);
}
seg.brightness(15);
}
