Using 4 Push buttons to control 4 channel relays with Arduino

Using 4 Push buttons to control 4 relays with Arduino

You will learn how to control 4 channel relay with 4 push buttons with push and keep pressed to keep it ON and release to turn it OFF using provided Arduino.
This code is to toggle the light. If you want to push and hold to turn ON and release for turn OFF, See this code

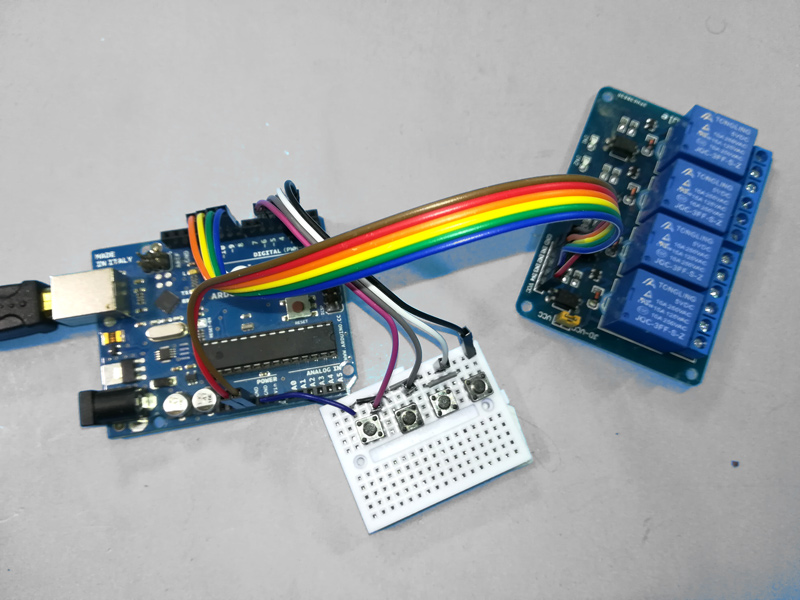

Arduino with relay and push buttons

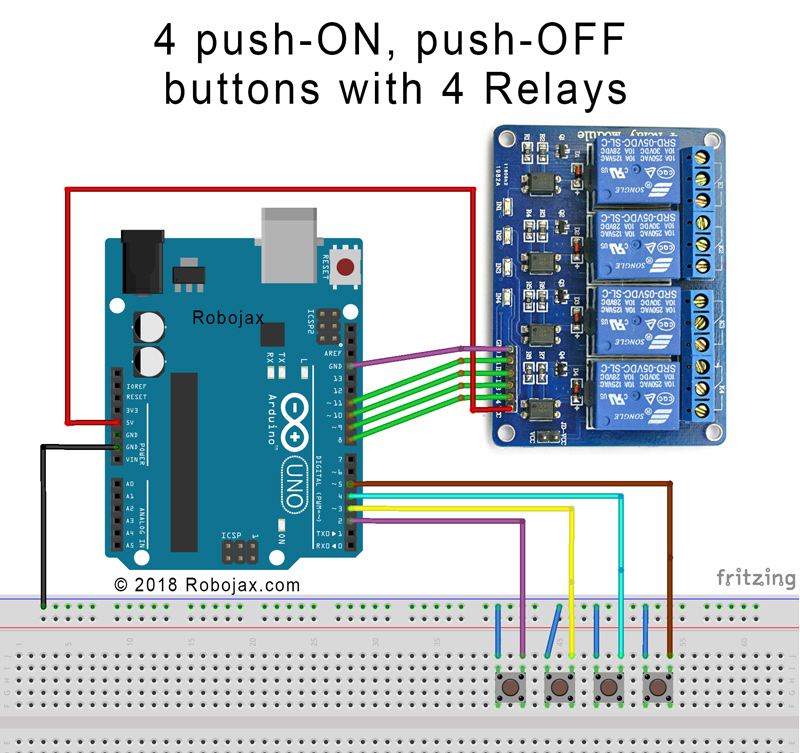

4 Channel relay with 4 push button Wiring diagram

Resources for this Arduino sketch


 /*
 *  Arduino code to use 4 push buttons to turn ON of OFF 4 channel relay
 *  push and hold to turn ON
 *  release to turn  OFF
 * this can be done with 4 push button to control 4 relays.
 I have written code where you can toggle the relay push-ON and push-off
 *
 * written by Ahmad Shamshiri for Robojax.com
 * on December 11, 2018 at 19:39 in Ajax, Ontario, Canada

watch video instruction for this code:https://youtu.be/3EZecphNdAI
Get this code and other Arduono codes from Robojax.com
 *
  * This code is "AS IS" without warranty or liability. Free to be used as long as you keep this note intact.*
 * This code has been download from Robojax.com
    This program is free software: you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation, either version 3 of the License, or
    (at your option) any later version.

    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.

    You should have received a copy of the GNU General Public License
    along with this program.  If not, see <https://www.gnu.org/licenses/>.
 */
const int pushButton[] ={2,3,4,5};// define push button inputs
const int relayPin[]={11,10,9,8};// output pins where 4 relays will be connected
String relayNames[] ={"CH1", "CH2","CH3","CH4"};// Just put name for 4 relays
int pushed[] ={0,0,0,0};// status of each buttons
int relayStatus[] ={HIGH,HIGH,HIGH,HIGH};// initial status of relay


void setup() {
  // Robojax.com 4-Relay-4-Push button 20181211
  Serial.begin(9600);// initialize serial monitor
  for(int i=0; i<4; i++)
  {
    pinMode(pushButton[i], INPUT_PULLUP);
    pinMode(relayPin[i], OUTPUT);
    digitalWrite(relayPin[i], HIGH);// initial relay status to be OFF
  }

// Robojax.com 4-Relay-4-Push button 20181211
}

void loop() {
// Robojax.com 4-Relay-4-Push button 20181211

  for(int i=0; i<4; i++)
  {
     int  val = digitalRead(pushButton[i]);


      if(val == HIGH){
        Serial.print(relayNames[i]);
        Serial.println(" ON");
        digitalWrite(relayPin[i], LOW);

      }else{
        Serial.print(relayNames[i]);
        Serial.println(" OFF");
        digitalWrite(relayPin[i], HIGH);

      }// else

  }// for
    Serial.println("==");
  delay(100);
// Robojax.com 4-Relay-4-Push button 20181211
}// loop end


If you found this tutorial helpful, please support me so I can continue creating content like this. support me via PayPal
