How to user Makerfabs ESP32 3.5" TFT Capacitive Touch with Camera
How to user Makerfabs ESP32 3.5" TFT Capacitive Touch with Camera
Makerfabs make all-in-one 3.5" TFT LCD wiht Camera and touch capability using ESP32. We have WiFi and Bluetooth with GPIOS ready to be use. Makerfabs Product Page
Shown and code provided:
- How to use Camera and take photo
- How to use Display taken photos
- Play Flappy-bird game
- How to make photo slide show
- How to display text
- Play 2048 Game
Chapters of this video
- 00:55 Introduction
- 04:07 Hardware Explained
- 06:34 Preparing Arduino IDE for EXP32
- 11:24 Demonstration of Camera
- 13:53 Demonstration of Touch drawing
- 15:27 Demonstration of Displaying Text
- 16:46 Game: Flappy-bird
- 18:25 Game: 2048
- 19:28 Image slid show
Browser Screenshot Gallery
Click on the images below:

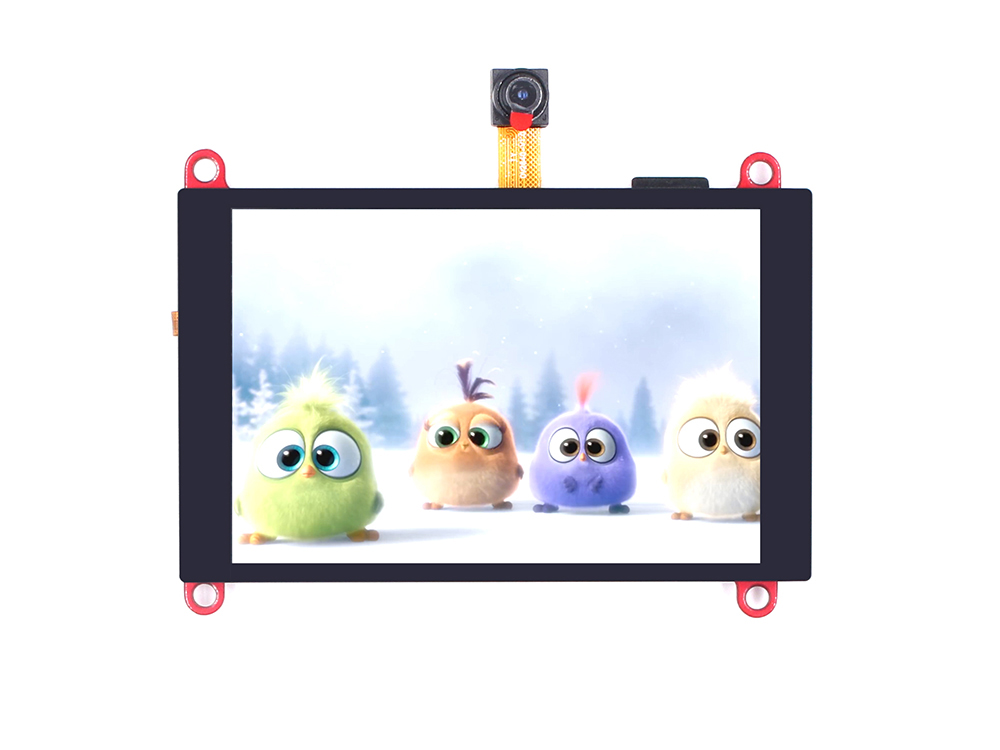

ESP32 TFT LCD module: Full front view
Click on image to enlarge

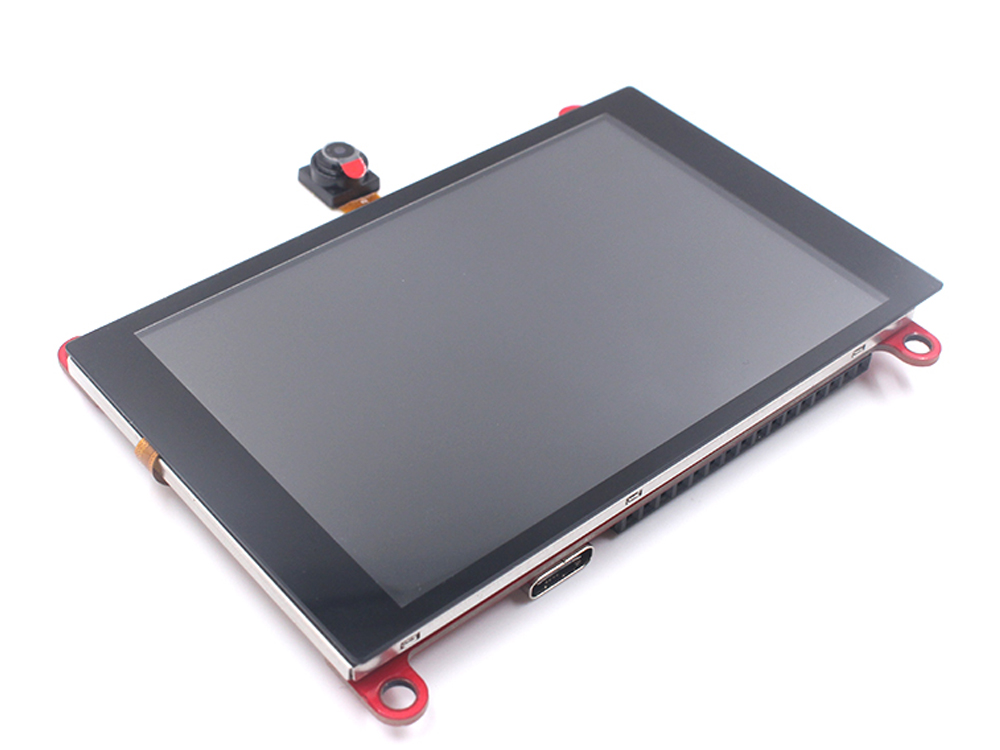

ESP32 TFT LCD module: laying down
Click on image to enlarge

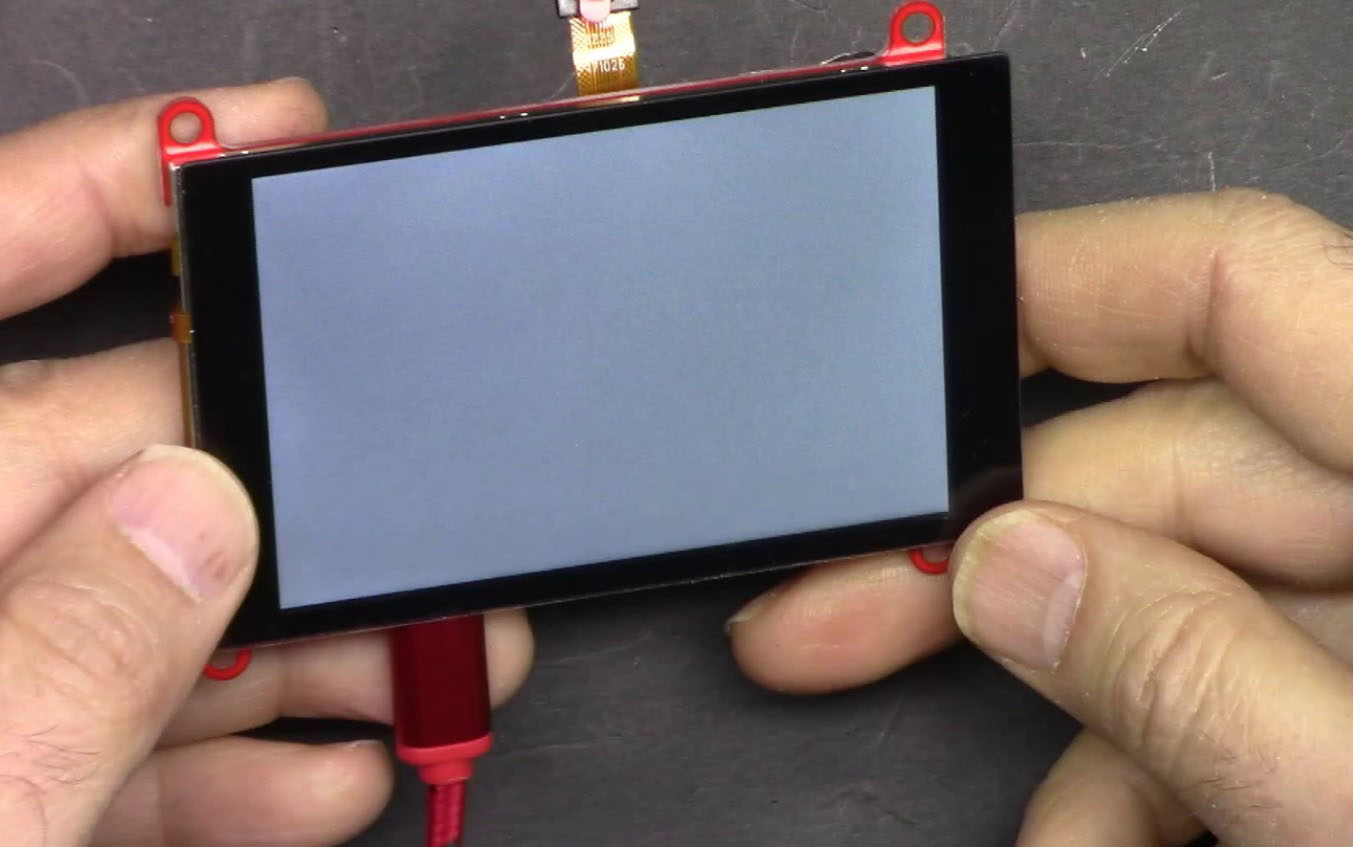

ESP32 TFT LCD module: Size in hand
Click on image to enlarge

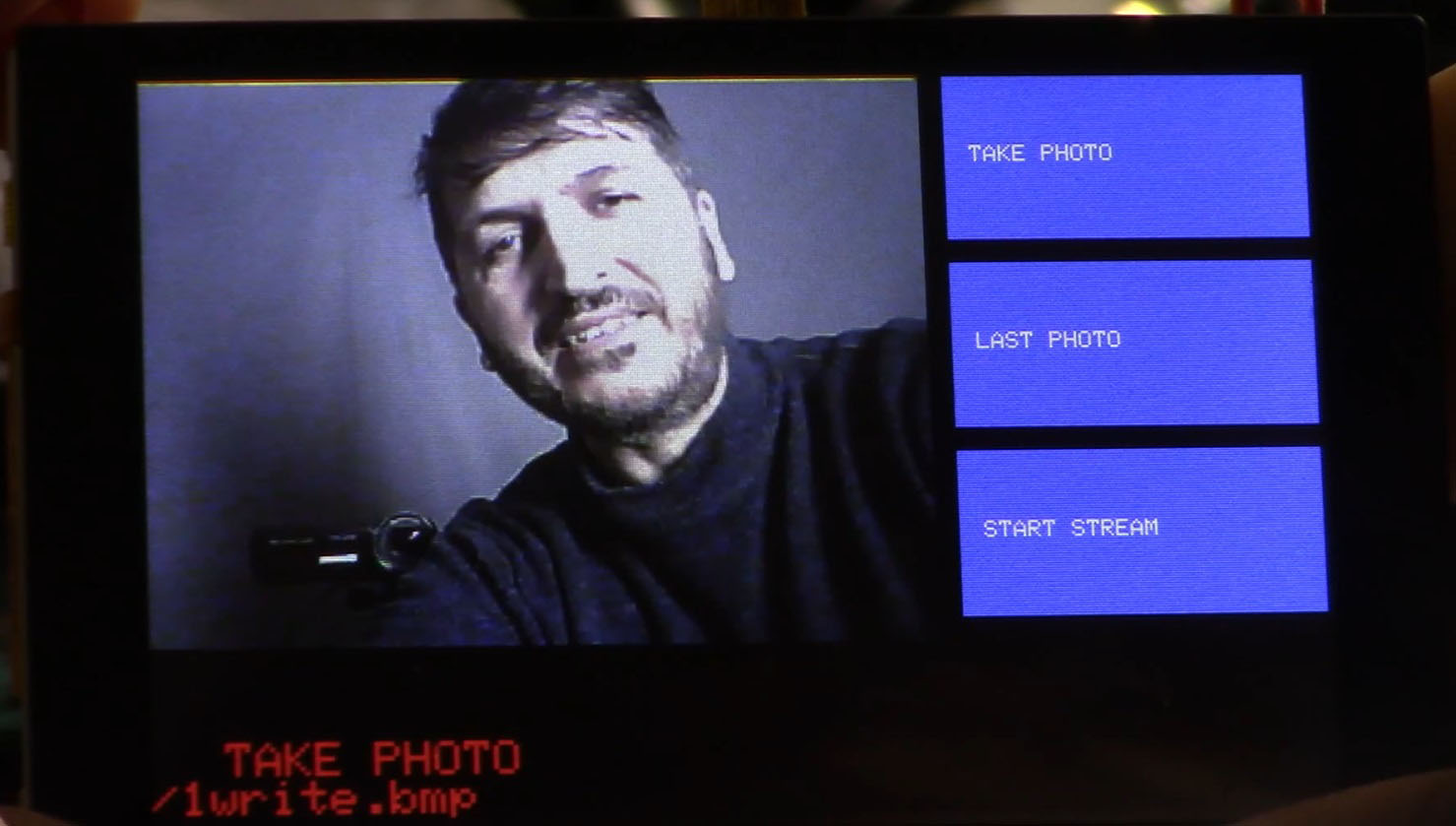

ESP32 TFT LCD module: test of camera
Click on image to enlarge

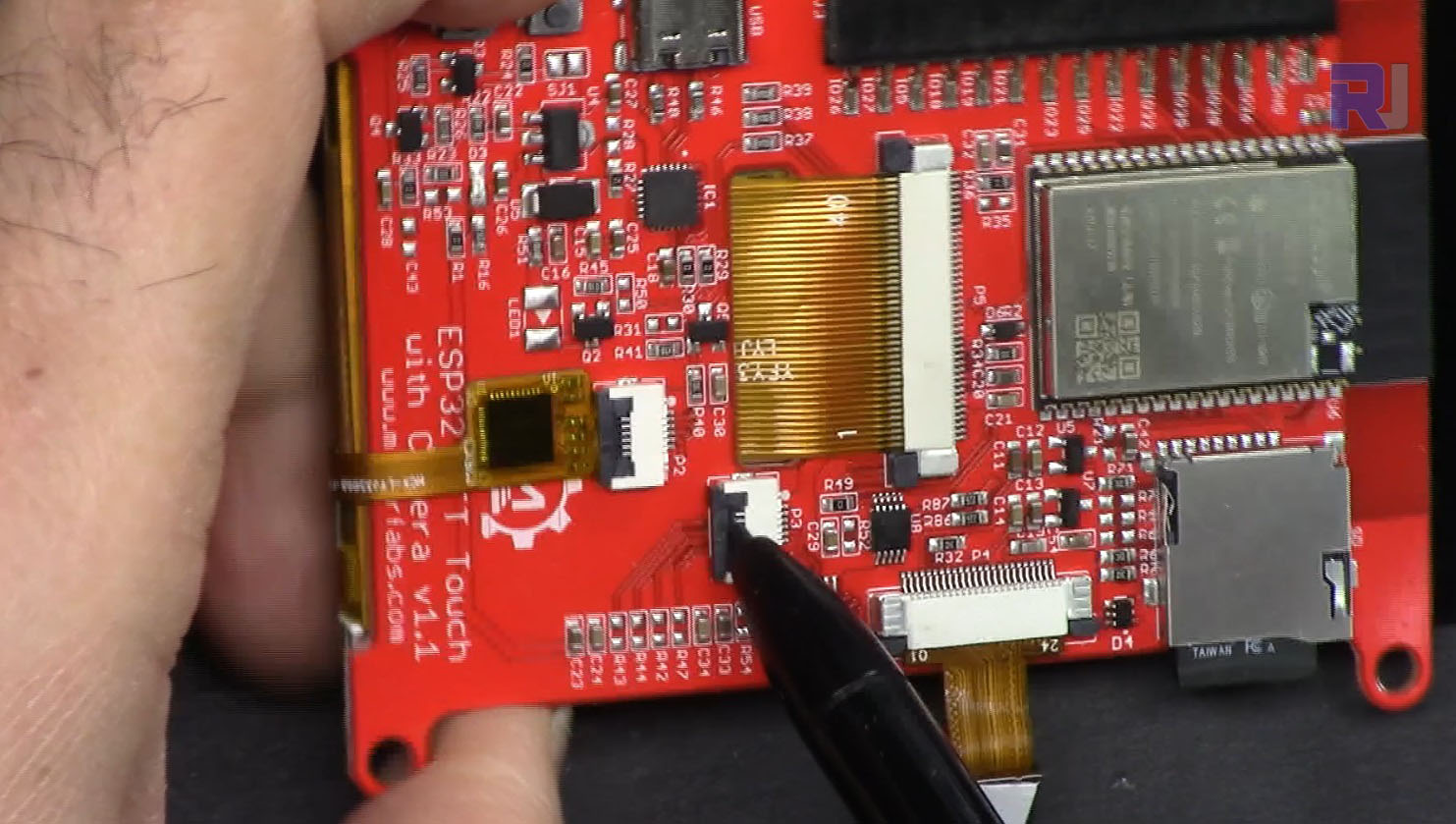

ESP32 TFT LCD module: hardware explained
Click on image to enlarge

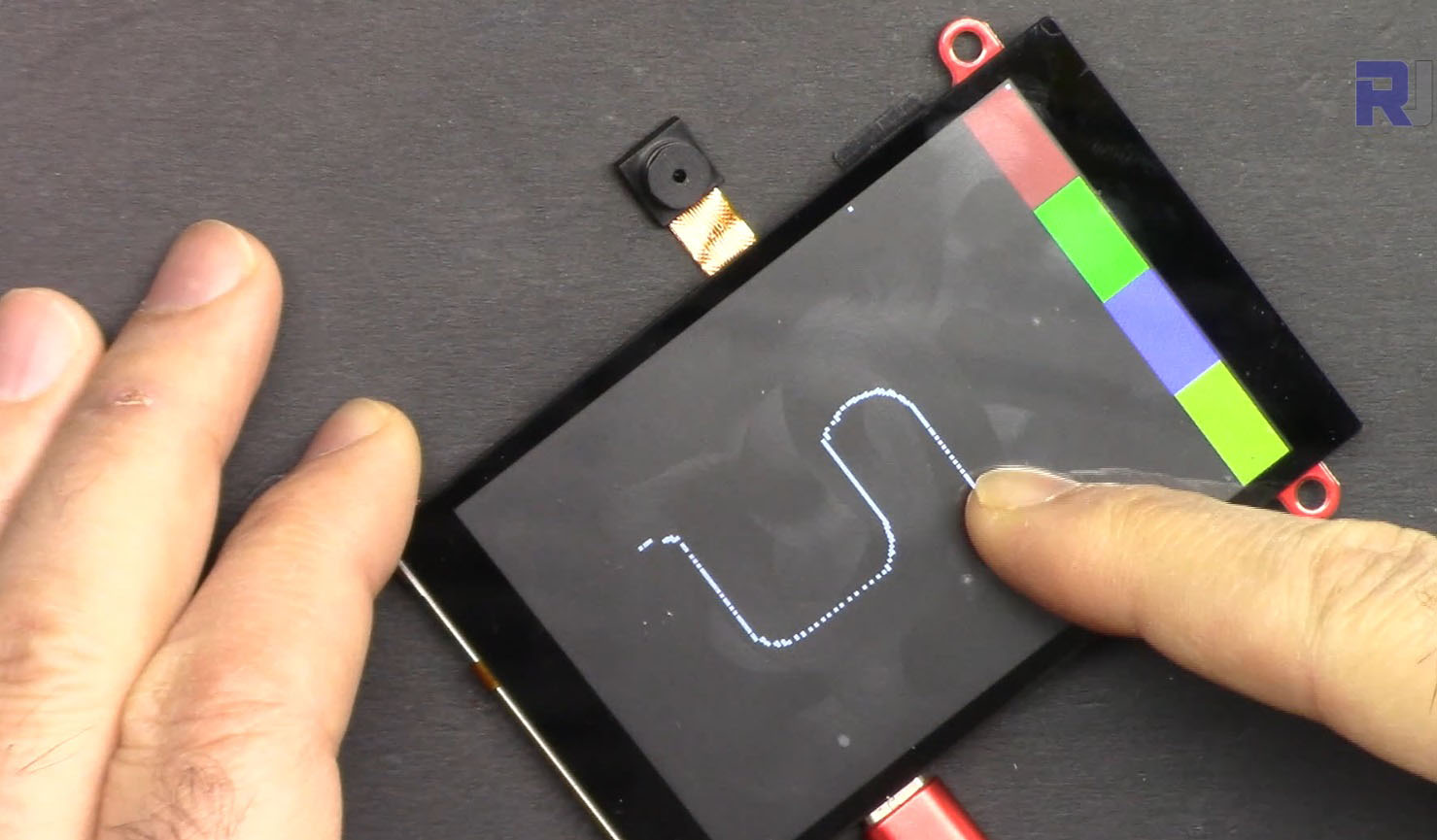

ESP32 TFT LCD module: drawing with finger/or pin with resistive screen
Click on image to enlarge

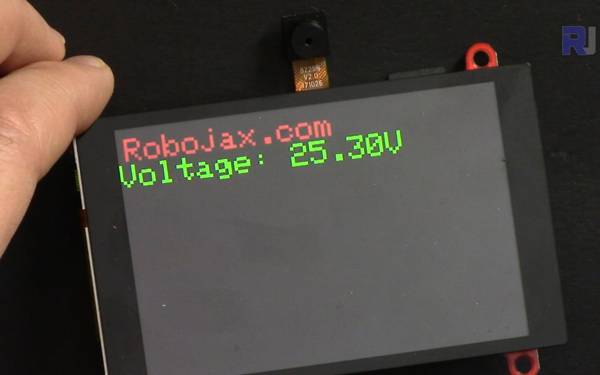

ESP32 TFT LCD module: Display text
Click on image to enlarge

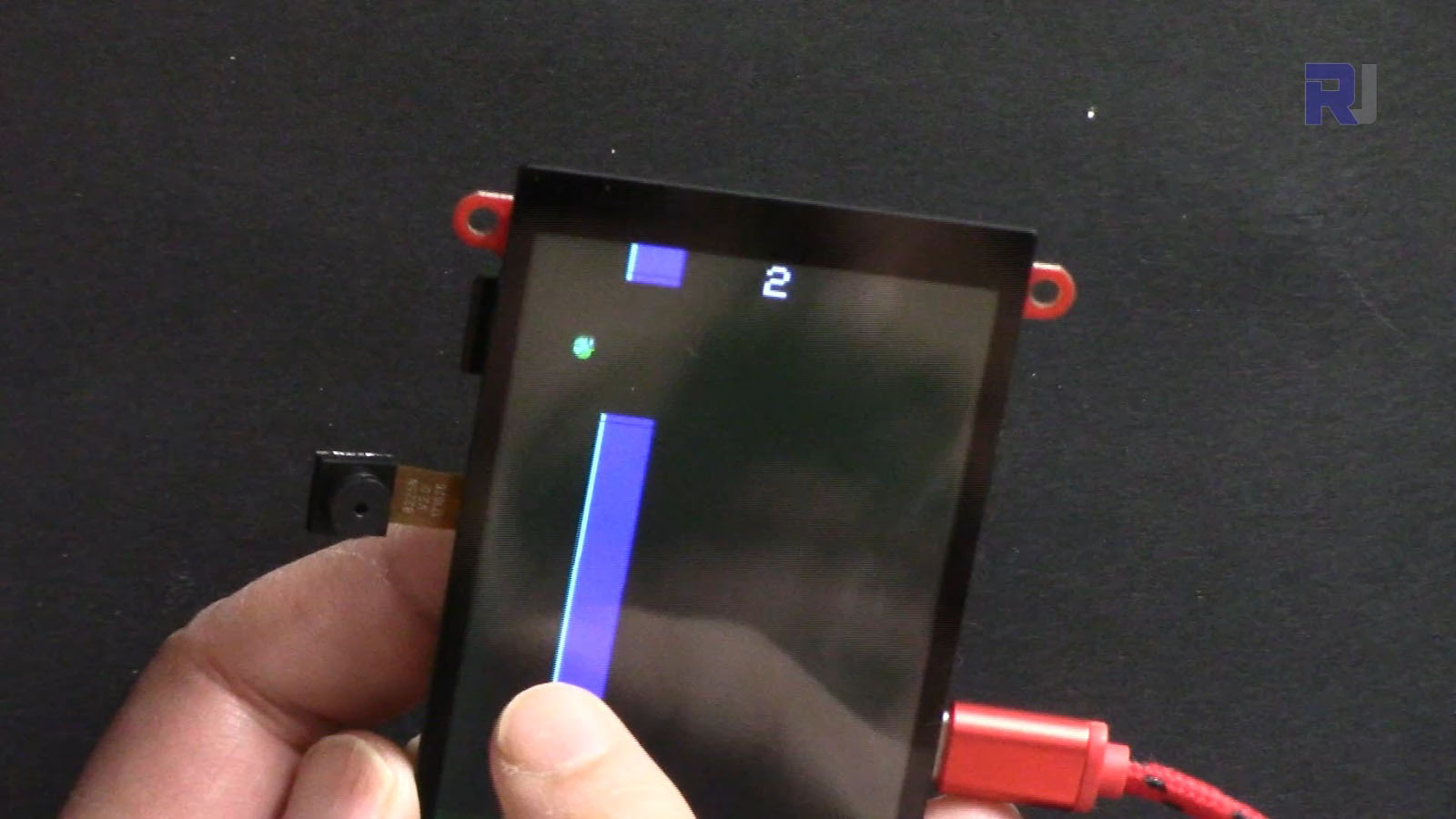

ESP32 TFT LCD module: playing flappy-bird game
Click on image to enlarge

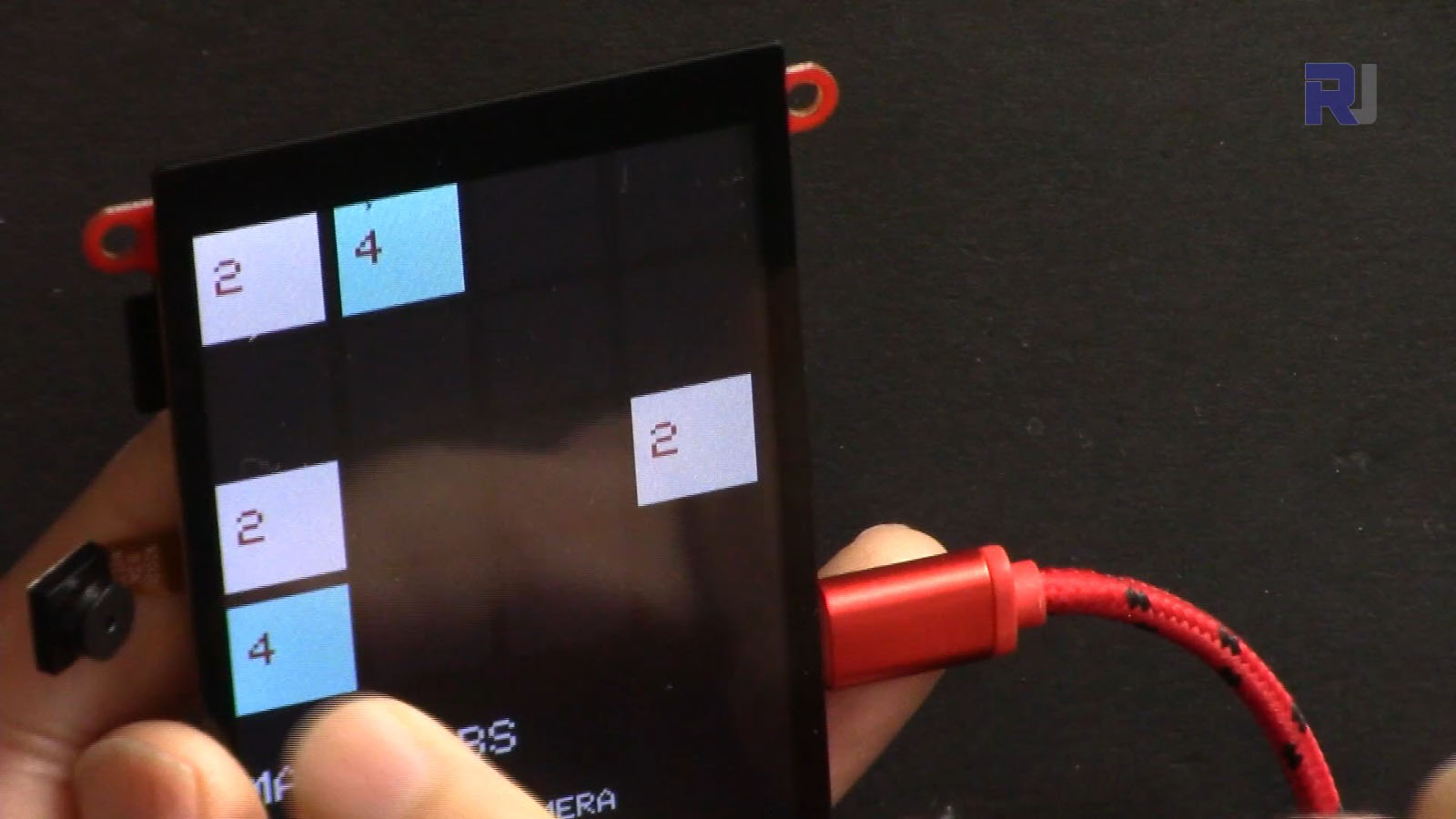

ESP32 TFT LCD module: playing 2048 game(don't know how)
Click on image to enlarge
