Review of IC Station XH-M407 8A DC Buck Converter 1.25V-36V
The module is explained with all components, then tested with different input and output voltage.
Chapters in this video
-
00:35 Hardware Explained
-
03:41 Voltage Regulation tested
-
06:13 Input 30V
-
Output: 24V, 15V, 12V, 9V, 5V, 3.3V
-
09:06 Input 24V
-
Output: 15V, 12V, 9V, 5V, 3.3V
-
10:51 Input 15V
-
Output: 2V, 9V, 5V, 3.3V, 3.3V
-
12:06 Input 12V
-
Output: 9V, 5V, 3.3V,
-
13:34 Input 9V
-
Output: 5V, 3.3V
-
14:41 Input 5V output at 3.3V
-
15:20 Ripple voltage measurement

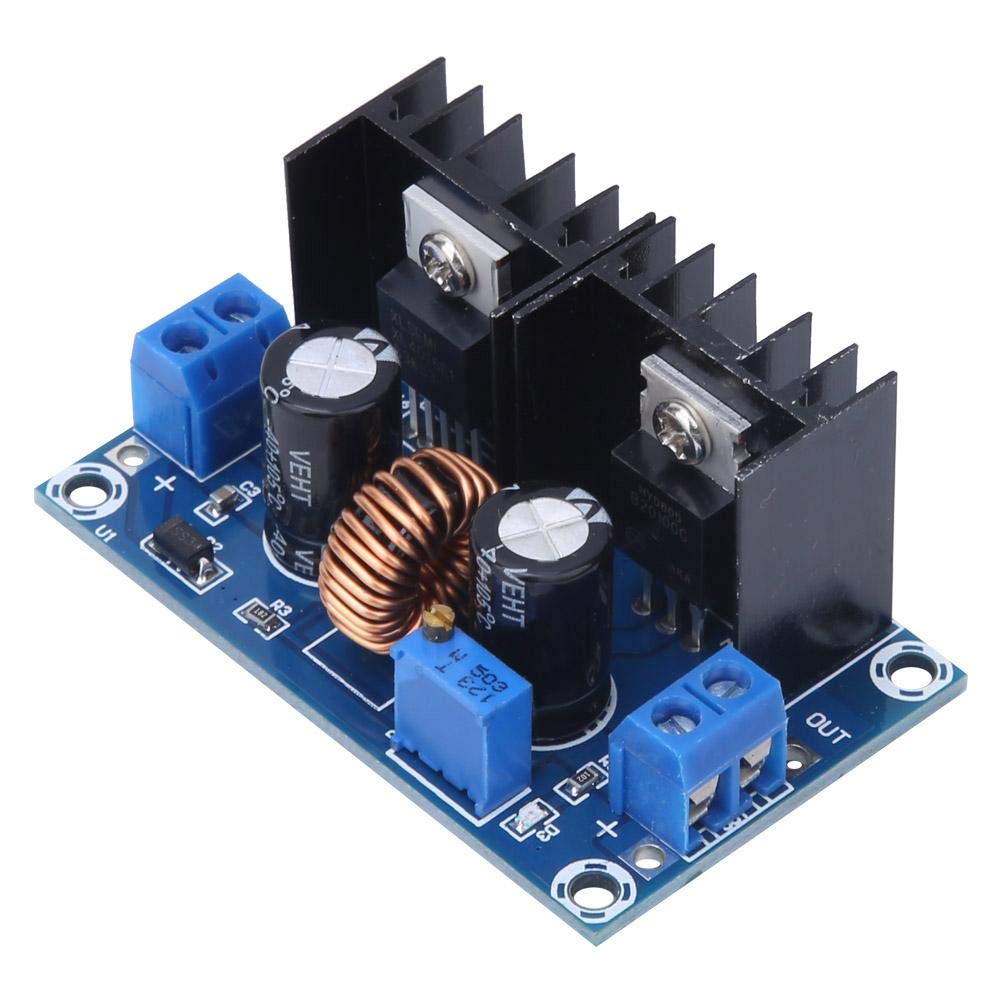

XH-M407 8A Buck converter: Main
Click on image to enlarge

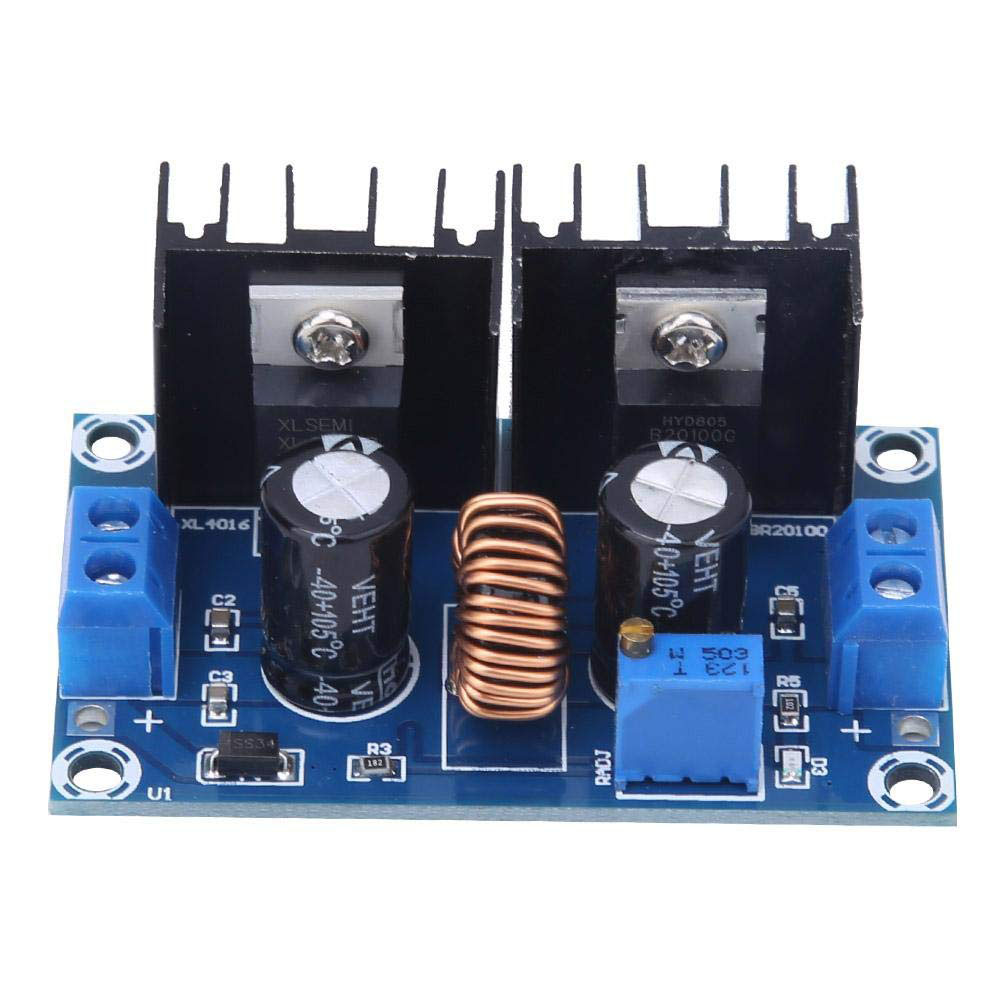

XH-M407 8A Buck converter: front-side
Click on image to enlarge

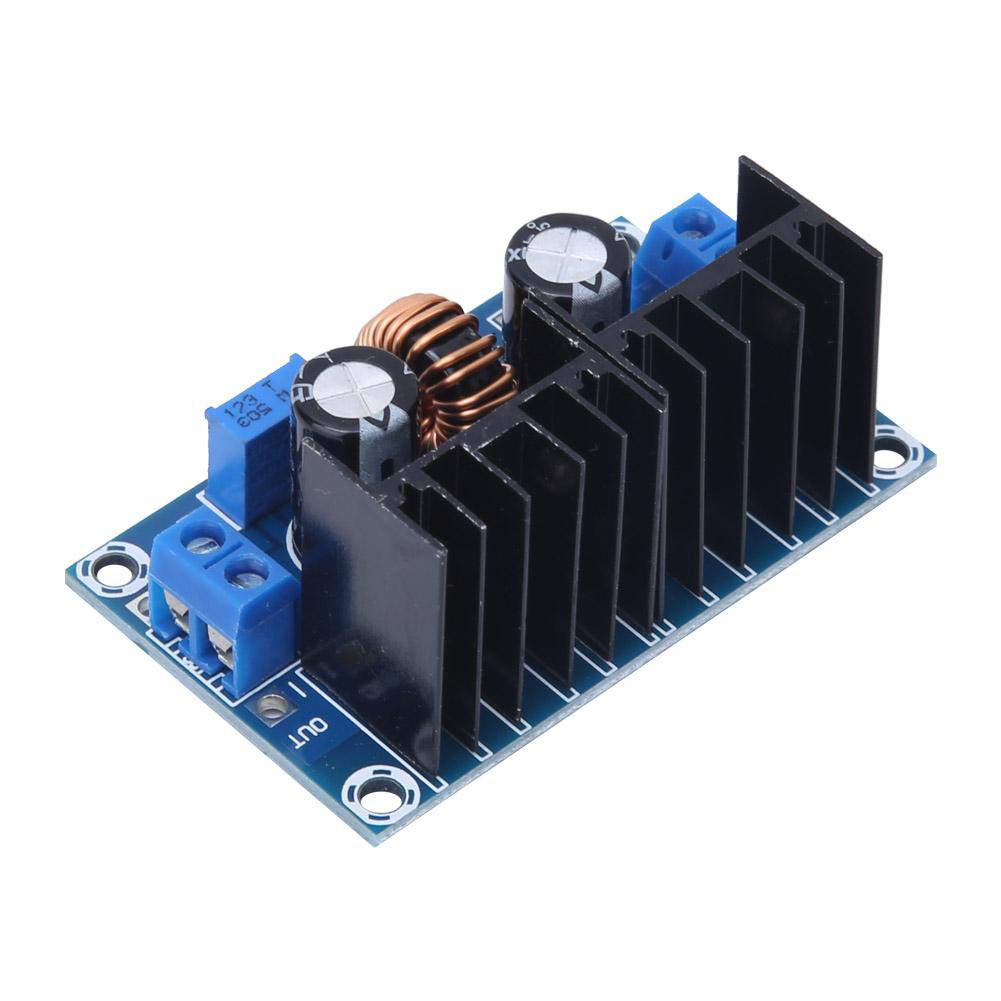

XH-M407 8A Buck converter: back-side
Click on image to enlarge

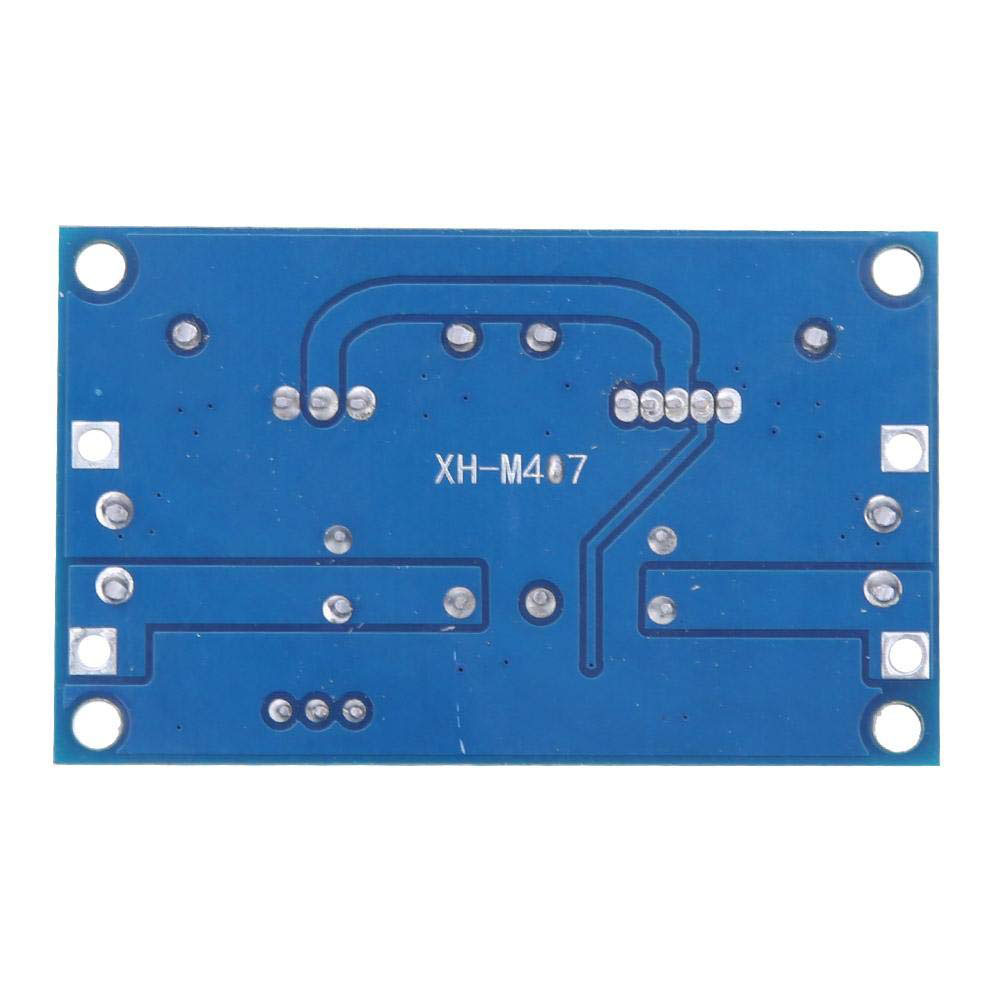

XH-M407 8A Buck converter: bottom
Click on image to enlarge
XH-M407 8A Buck converter: back
Click on image to enlarge
