Lithium Battery Protection using DW01 and TC4056 Tested and Explained
DW01 Lithium Battery Proteciton with TP4056 TC4056 Explained
This video shows and explains OverCurrent Protection, UnderVoltage and OverCharge protection using the TC4056/TP4056 with DW01 Chip. Schematic shown and explained. DW01 is explained and input and output current measured for efficiency purpose more.

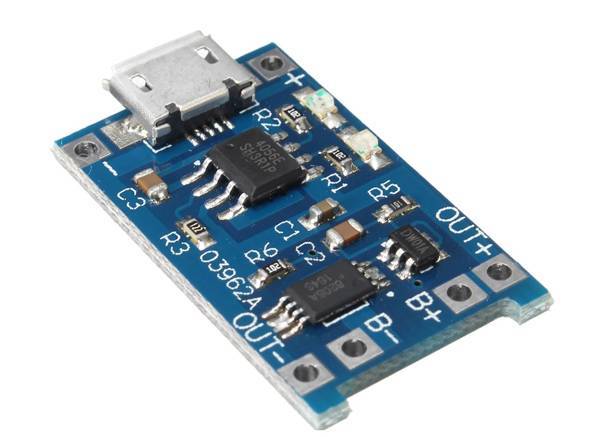

DW01 with TC4056 TP4056 Charger:
Click on image to enlarge

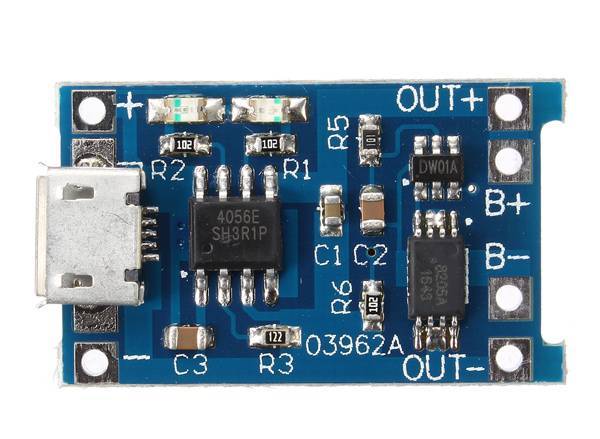

DW01 with TC4056 TP4056 Charger:
Click on image to enlarge

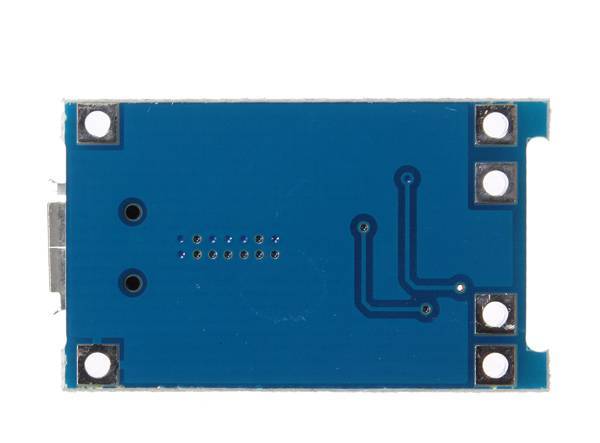

DW01 with TC4056 TP4056 Charger:
Click on image to enlarge
Topics shown in video
-
01:14 Introduction
04:04 Using this module in parallel
05:22 Components of TC4056 Explained
08:22 Schematic explained
10:55 Checking if module has OverCurrent protection
13:22 Protection with DW01 Explained
17:52 Wiring and Charging battery
22:27 Short Circuit protection demonstration
23:01 OverCurrent Protection demonstration
26:09 Efficiency of the module
