The complete Guide to using 3S 40A Lithium BMS Battery Charger
The complete Guide to using 3S 40A Lithium BMS Battery Charger

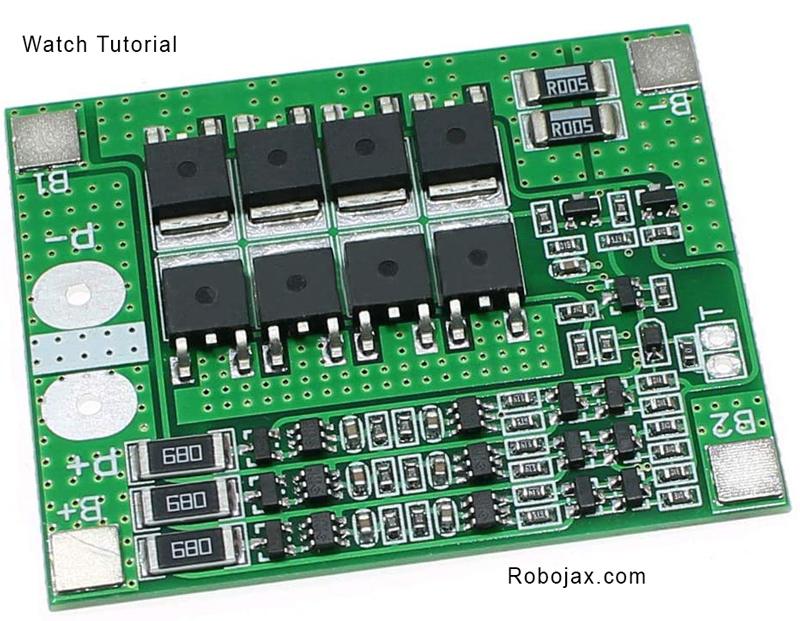

This video explaines fully 3S 40A BMS Batteyr charger module. from preparing the battery pack, soldering the module, charging the battery, discharge test, overDischarge test, overVoltage protection test, short circuit protection test and many other features.
Topics Covered in this video
- 01:21 3S 40A BMS Charger Module Explained
- 06:51 Components used in 30S 40A Module Explained
- 11:36 Schemaitc for 3S 40A BMS module viewed
- 17:42 Preparing the Battery pack for 3S 40A BMS charger
- 23:00 How to charger the battery with 3S 40A BMS Charger
- 26:03 Charge Current test for 3S 40A Charger
- 28:20 OverDischarge Protection Test for 3S 40A BMS Charger
- 30:53 OverVoltage Protection Test for 3S 40A BMS Charger
- 32:53 Short Circuit Test for 3S 40A BMS Charger

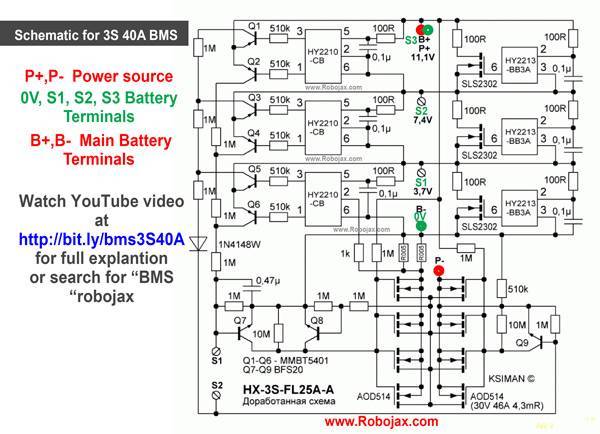

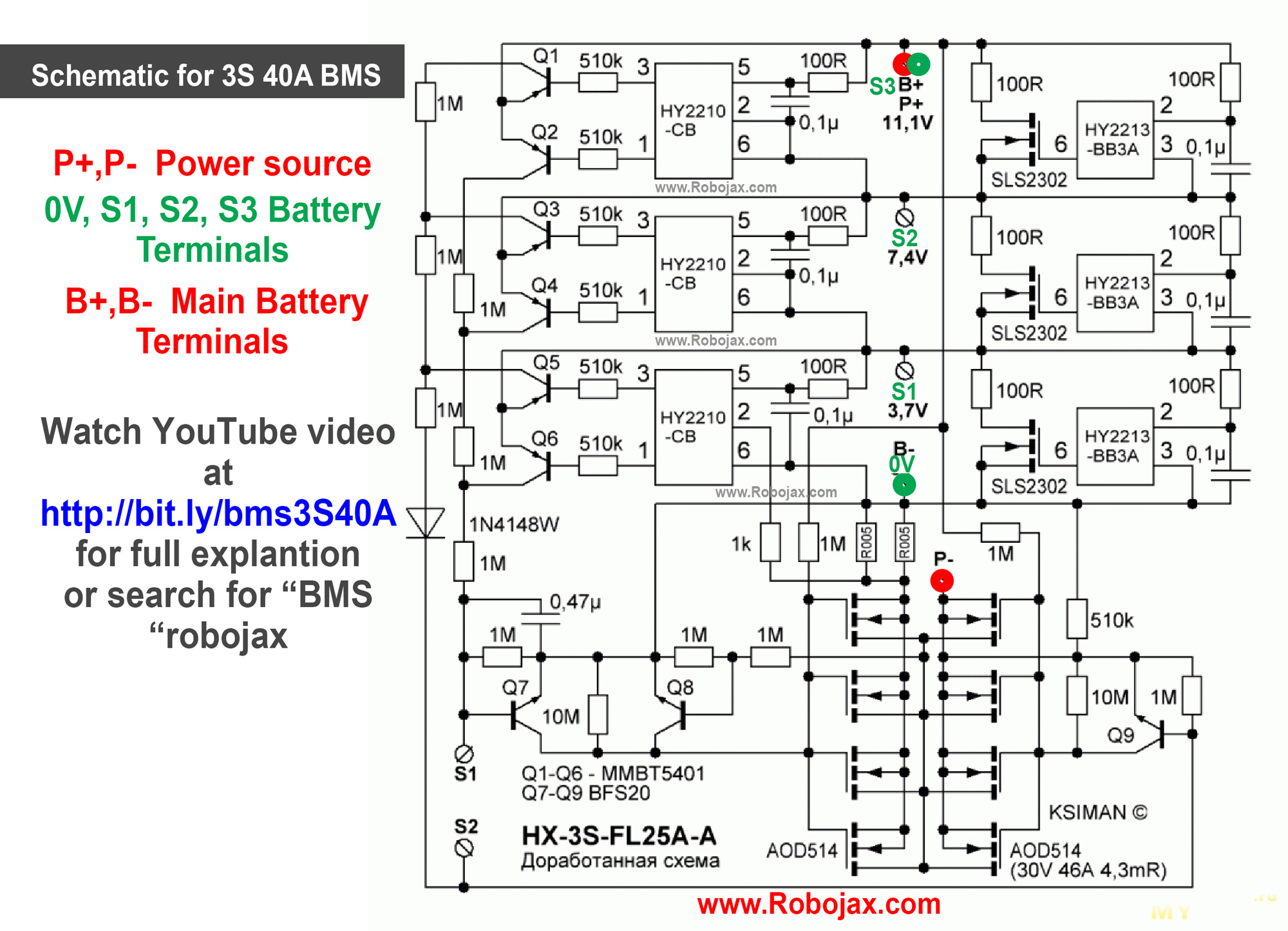

3S 40A BMS Schemaitc
