Review of 1200W 20A DC Input 8V-60V Output 12V - 80V Boost converter
Review of 1200W 20A DC Input 8V-60V Output 12V - 80V Boost converter - Robojax
All main components of the module is explained. The module is tested with different load and voltages. You may view the review video for 1500W Boost Converter with fan In this page
Chapters of this video
- 01:25 Introduction
- 04:14 Opening the module
- 07:14 Input 60V 500W test
- 08:48 Input 60V 600W test
- 09:33 Input 60V 900W test
- 10:16 Input 60V 1000W test 1kW
- 11:10 Input 50V 640W test
- 11:48 Input 50V 900W test
- 11:20 Input 50V 950W test
- 13:09 Input 36V 600W test
- 13:58 Input 36V 650W test
- 14:35 Input 24V 300W test
- 17:445 The module died
- 20:48 Input output voltage tests
- 22:27 Input 9V output 12V
- 25:00 Input 12V output 15V
- 26:54 Input 12V output 24V
- 28:25 Input 12V output 36V
- 30:10 Input 12V output 50V
- 30:56 Input 12V output 60V
- 32:12 Input 12V output 80V
- 35:22 Input 15V output 24V died
- 36:36 Input 15V output 24V 2nd module
Connecting load to power supply
Click on image to enlarge
Specifications:
Input voltage: DC10-60V(direct input 10-60V without jumper cap selection voltage)Input Current: 20A(MAX) exceed 15A, please add fan cooling,add fan input current can reach 25A when the fan input voltage is 12-24V)
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-83V Continuously adjustable (default output 19V, buyers can use the multimeter to adjust itself)
Output Current: 18A MAX Over 10A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Constant Range: 0.5-18A(+/-0.3A)
Input anti-reverse connection: Yes (150A power MOS anti-reverse)
Low battery protection: yes (9-50V adjustable)
Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: 92%-97% (efficiency and input and output voltage, current, pressure related)
Overcurrent protection: Yes (Input more than 25A, automatic protection, power does not boost)
Short circuit protection: Yes (input 30A fuse) double short circuit protection, the use of more security.
Input reverse polarity protection:Yes(150A power MOS tube anti-reverse. Can be reversed for a long time)
Installation: four 3mm copper columns
Connection: terminal block (please use high current pure copper wire)
Purcahse this module from Affiliated Stores
-From AliExpress-From AliExpress(2)
-From Amazon Canada
-From Amazon USA
-Amazon Germany

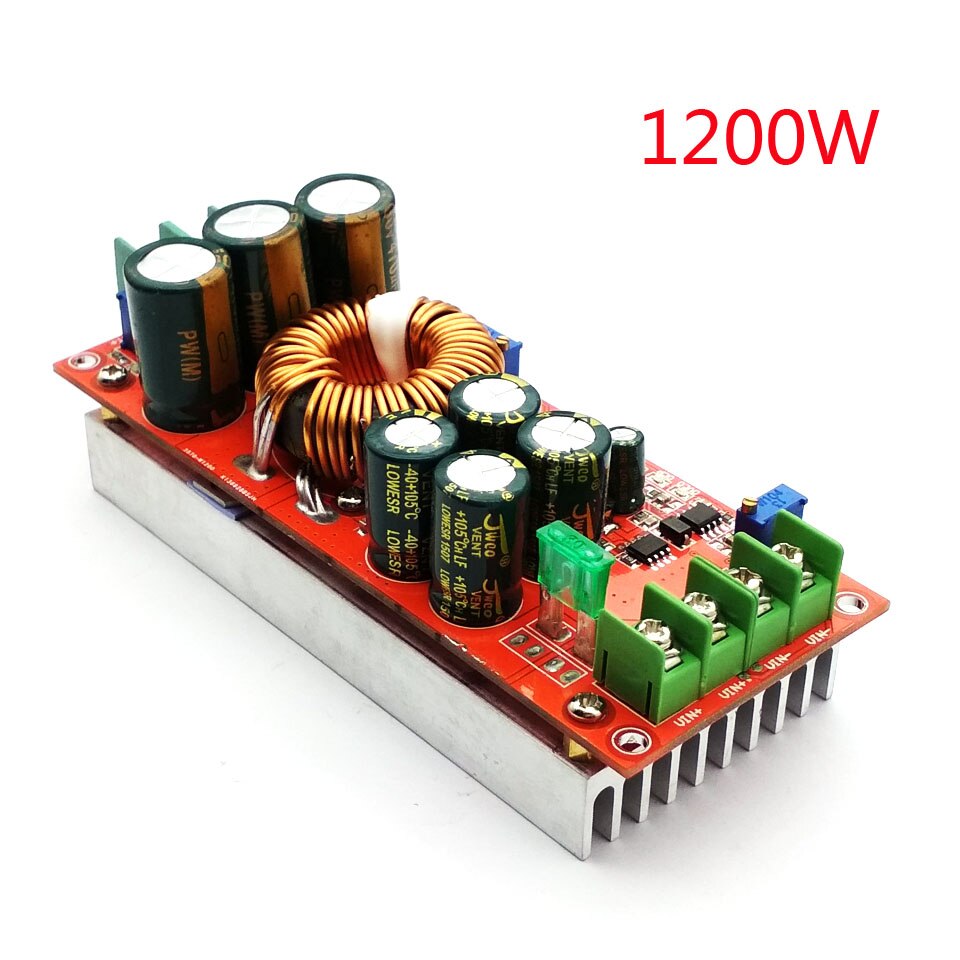

1200W Boost Converter -1
Click on image to enlarge

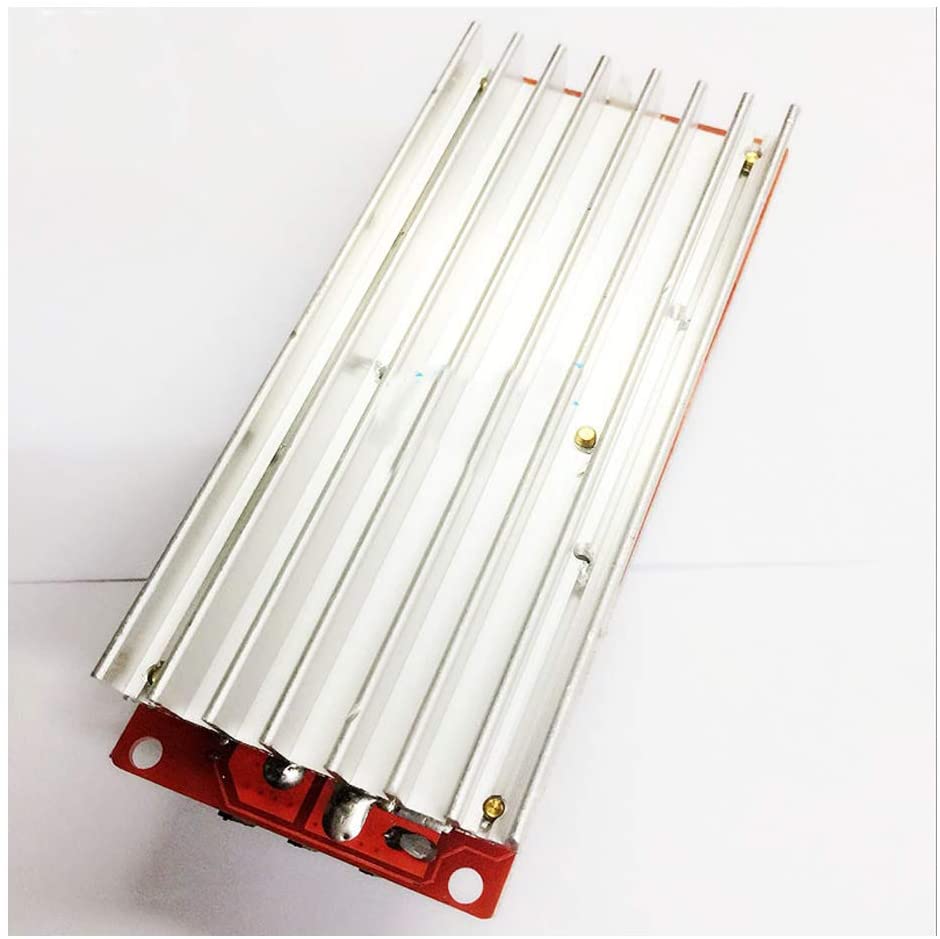

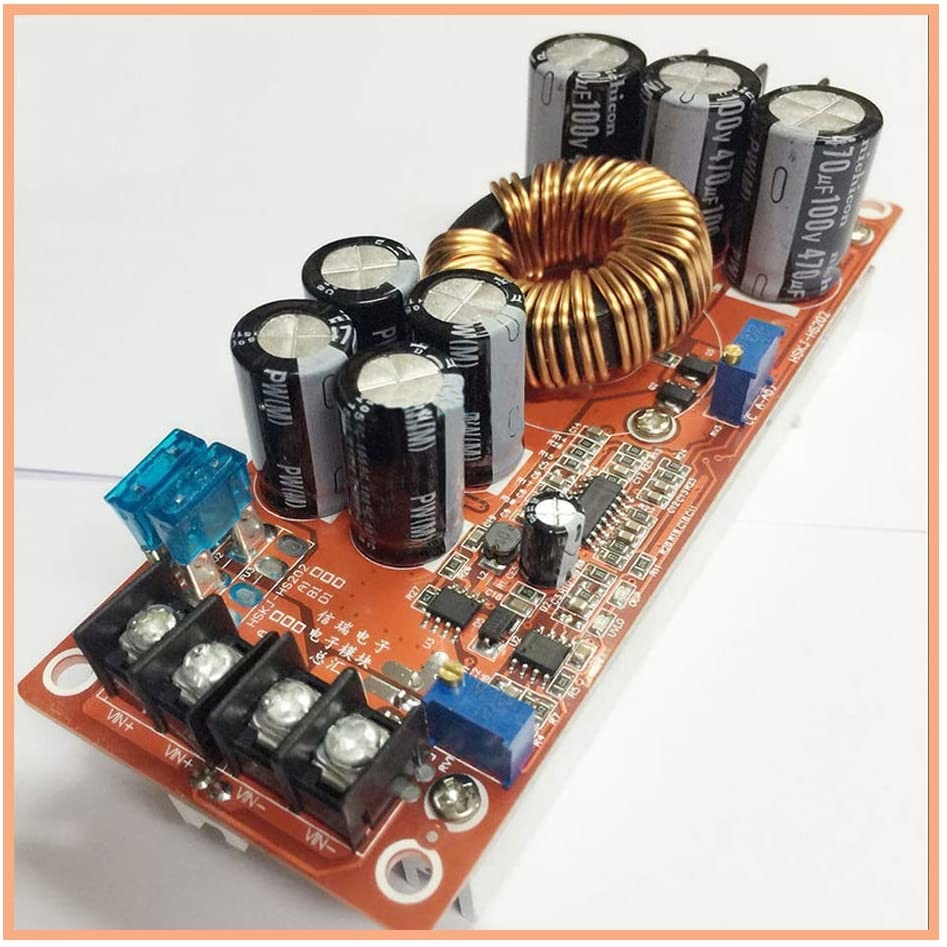

1200W Boost Converter -2
Click on image to enlarge

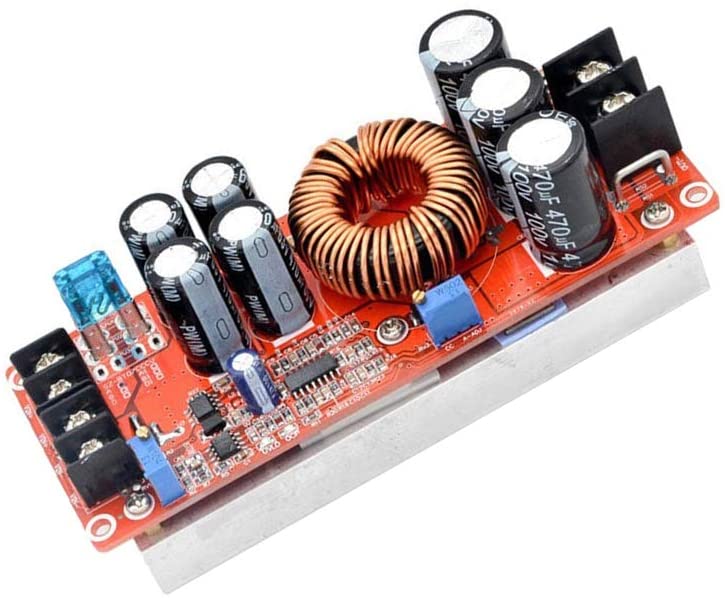

1200W Boost Converter -3
Click on image to enlarge
Datasheet of Components used in this module
- Datasheet: NCE85H21TC NCE N-Channel Enhancement Mode Power MOSFET(pdf)
- Datasheet: NCE60H15 NCE N-Channel Enhancement Mode Power MOSFET (pdf)
- Datasheet: B30100G 30A SCHOTTKY BARRIER RECTIFIER (pdf)
- Datasheet: TL4941 IC TL494 Pulse-Width-Modulation Control Circuits (pdf)
- Datasheet: XL7005A IC 0.4A 150KHz 80V Buck DC to DC Converter (pdf)
