BLACK+DECKER BDCSFL20C Lightdriver Cordless Screwdriver Disassymbly

The screwdriver is fully disassembled, motor is removed and tested, current of motor is measured. How to replace the battery is shown and fully assembled back.

Light Driver Specificaiton

• Battery: Lithium MH46059 18650 1500mA
• Motor model: 0530 5V DC gear motor
• Weight: 345g
• Current measured: 1200mA

Purchase this Black+DECKER Lightdriver

Browser Screenshot Gallery

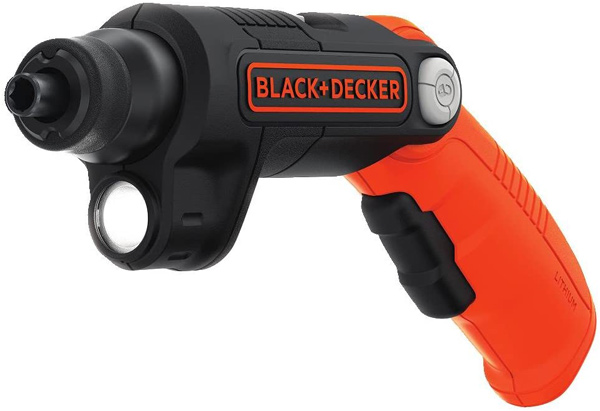

BLACK+DECKER BDCSFL20C Lightdriver: Main image

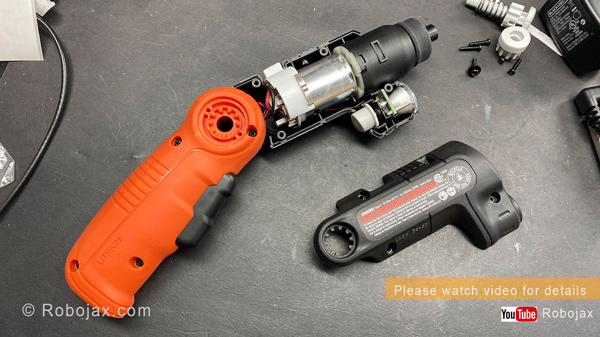

BLACK+DECKER BDCSFL20C Lightdriver: Motor cover remove

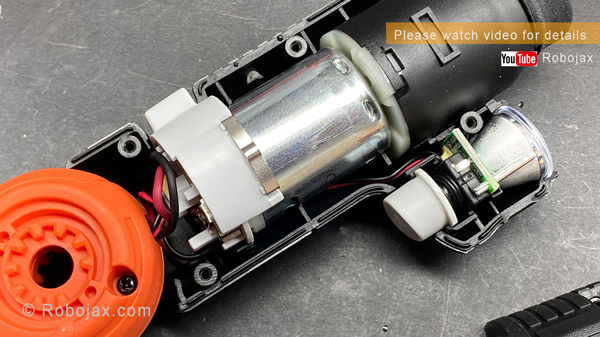

BLACK+DECKER BDCSFL20C Lightdriver: Motor and light close up view

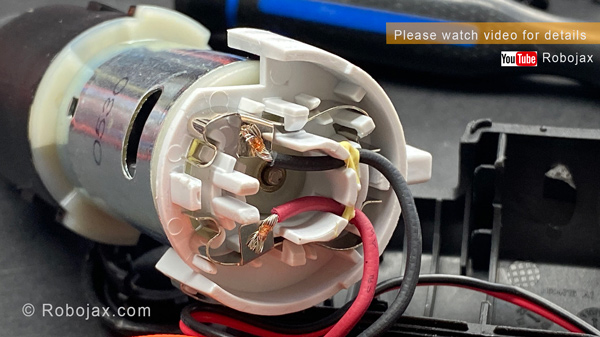

BLACK+DECKER BDCSFL20C Lightdriver: Direction switch on motor

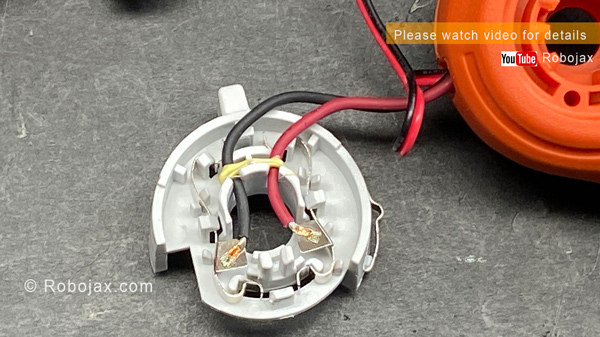

BLACK+DECKER BDCSFL20C Lightdriver: Direction switch

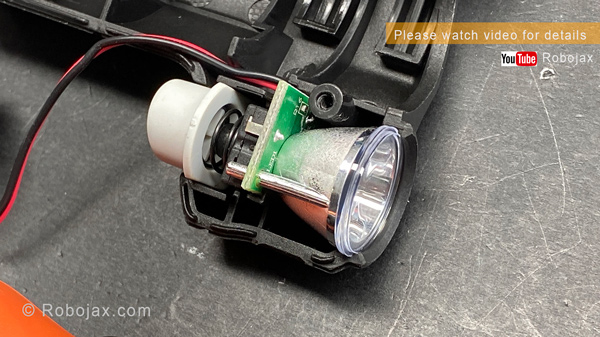

BLACK+DECKER BDCSFL20C Lightdriver: LED light assembly

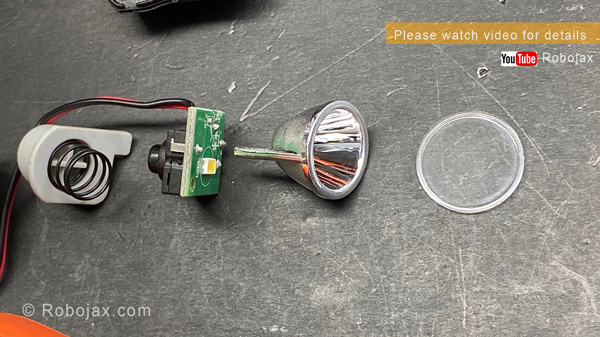

BLACK+DECKER BDCSFL20C Lightdriver: LED light components

BLACK+DECKER BDCSFL20C Lightdriver: Handle and battery hold opened

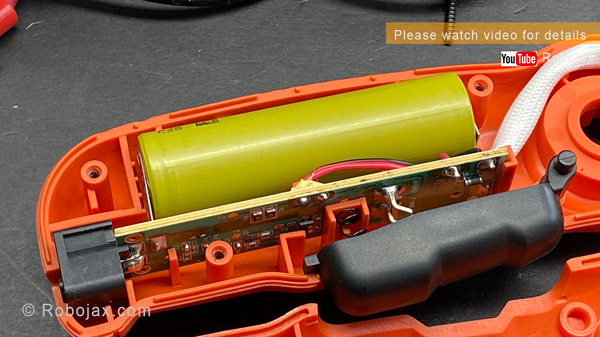

BLACK+DECKER BDCSFL20C Lightdriver: Battery and charger module
