Introduction to M5Stack Core2 ESP32 2" Display Development Module

In this video the module is explained, schematic viewed and explained. All specs and components shown. Preparing Arduino IDE software shown to be ready for M5Stack Core2. All avilable examples demonstrated. Pleae watch video for full details.

Purchase this with discount from Banggood
Banggood discount coupon:
Code Price: $37.99
Promo Code：BGb80c39
Warehouse: CN
Exp: 4/30/2021

Chapters in this video

• 00:00 Start
• 01:42 Introduction
• 05:30 Powering up
• 07:58 Inside the module
• 11:28 Schematic
• 13:28 Arduino Driver, Libraries
• 18:29 Examples Demonstration
• 21:21 Gyroscope Accelerometer demo
• 23:01 Sound recording demo
• 23:50 RTC wake demo
• 25:34 Sleep demo
• 26:09 Speaker ding dong
• 26:38 Other examples
• 26:55 Touch circle demo
• 27:25 Touch gesture demo
• 28:22 Touch goal demo
• 30:16 Touch view demo
• 31:30 Unit examples

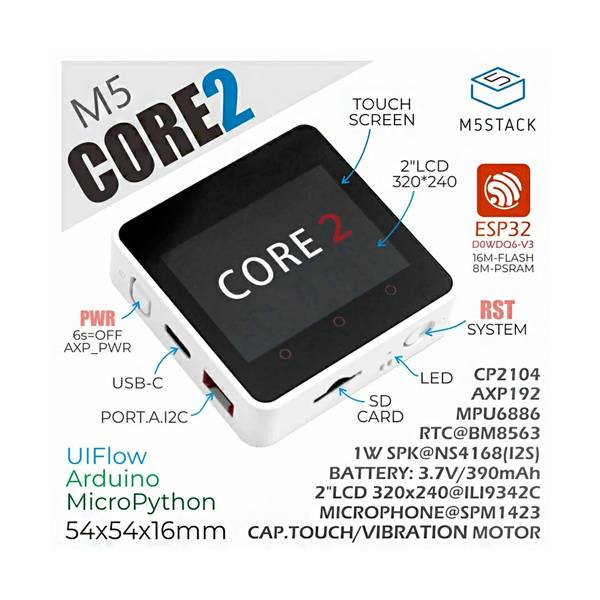

M5Stack Core2: Main

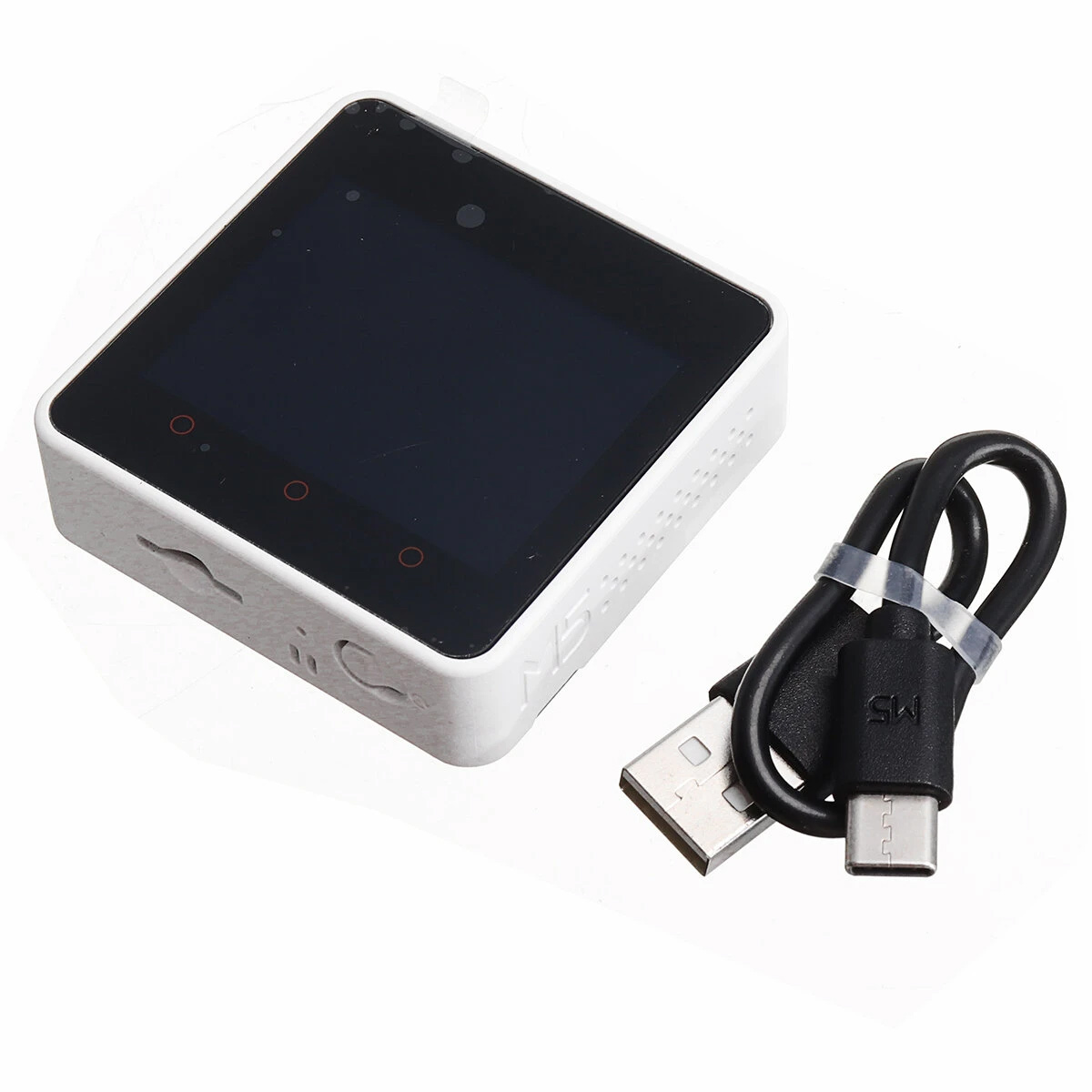

M5Stack Core2: Included

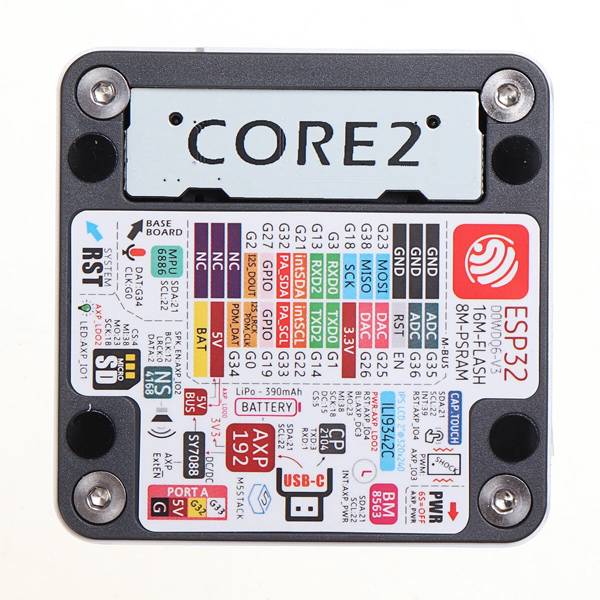

M5Stack Core2: Back-top

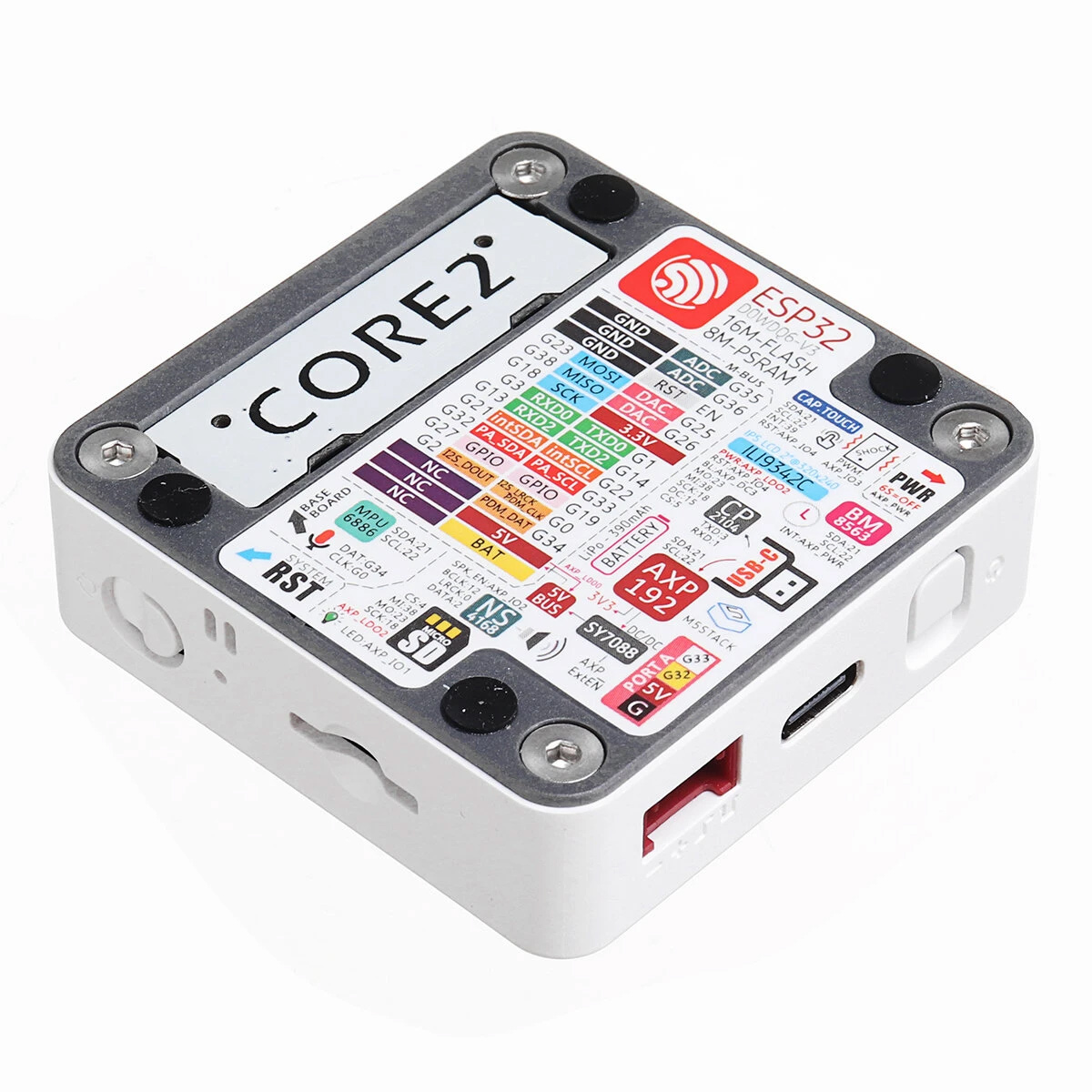

M5Stack Core2: Back-left

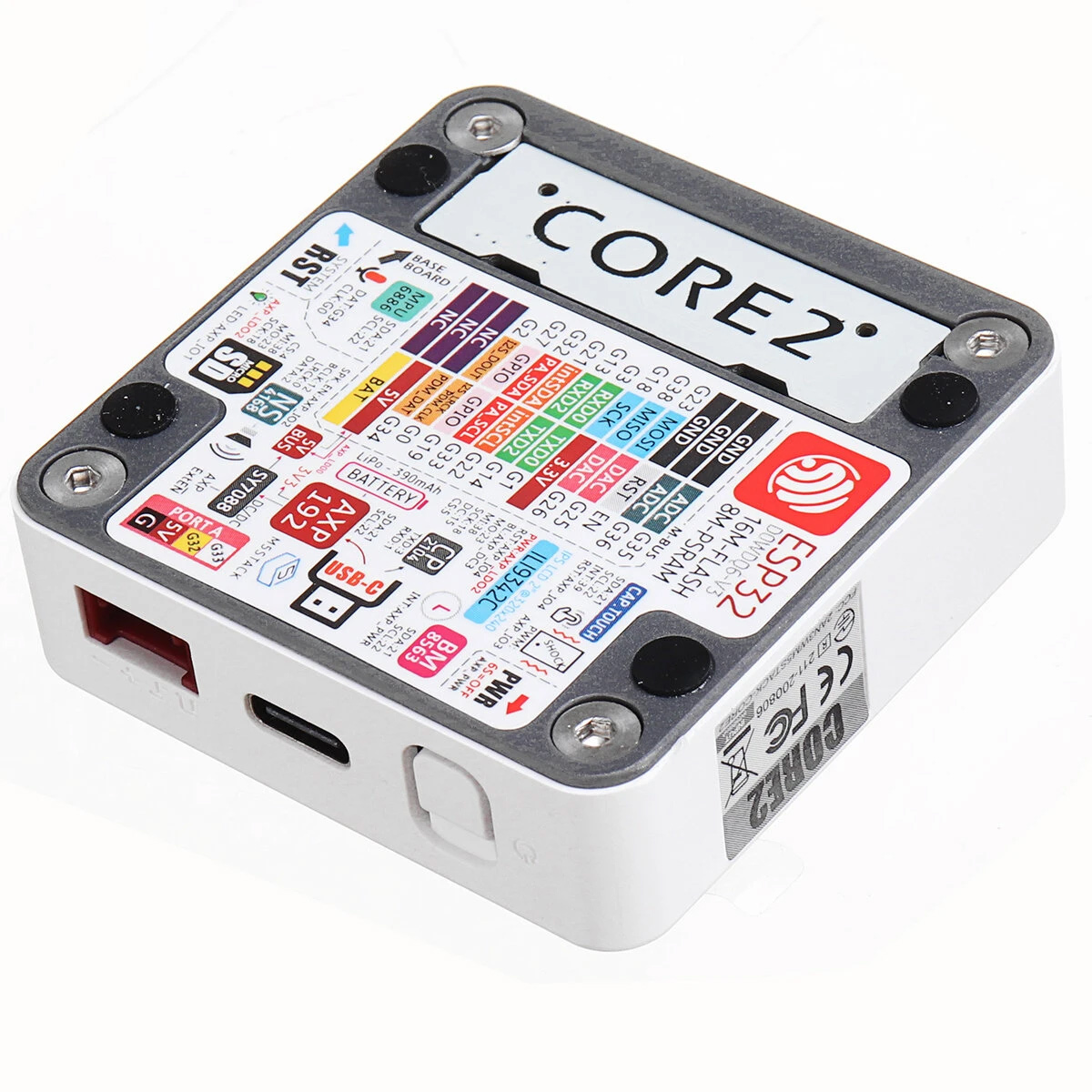

M5Stack Core2: Side-right

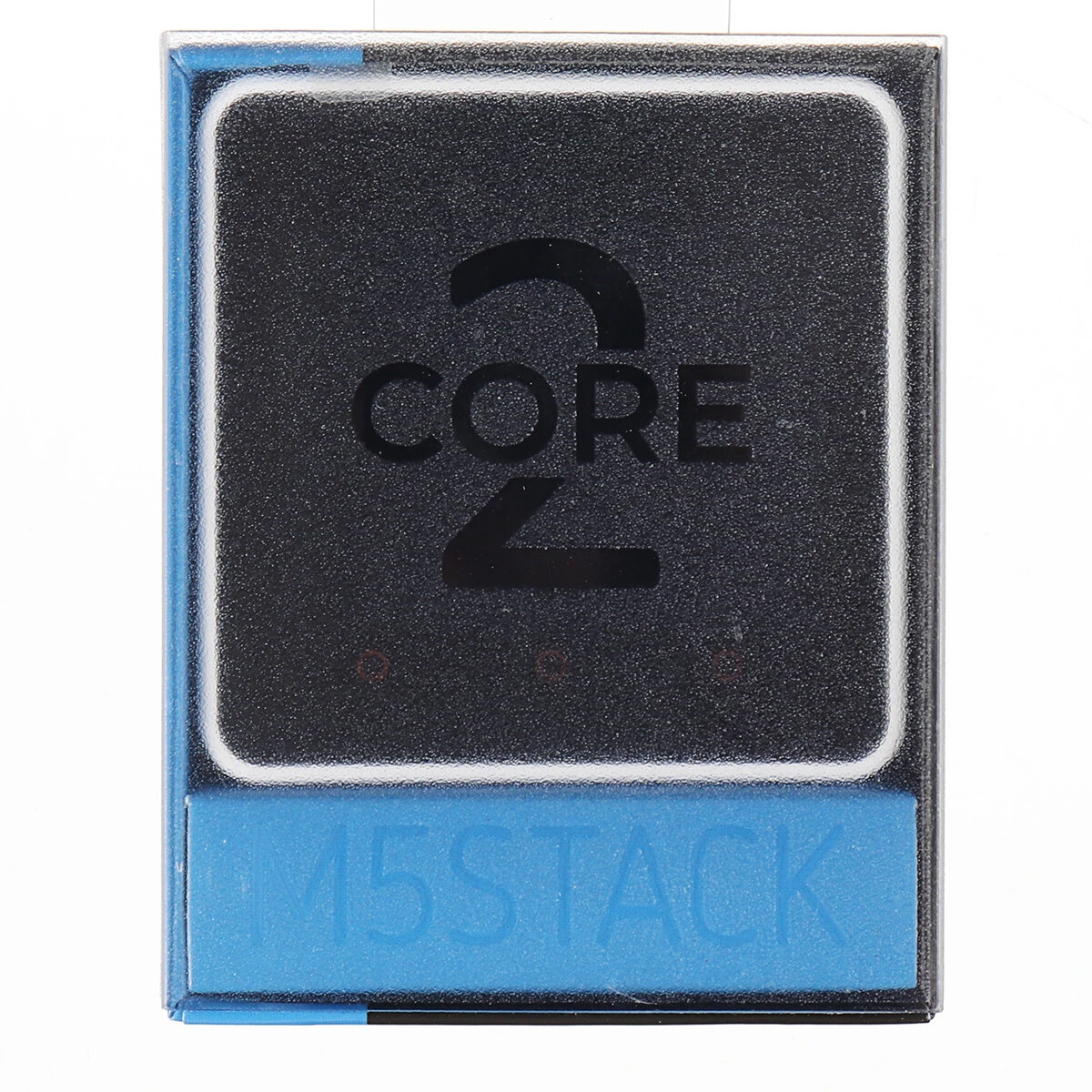

M5Stack Core2: package

Resources for this module

• M5Stack Core2 Documention page
• M5Stack Core2 Product page
• ESP32-D0WDQ6-V3 Datasheet (pdf)
